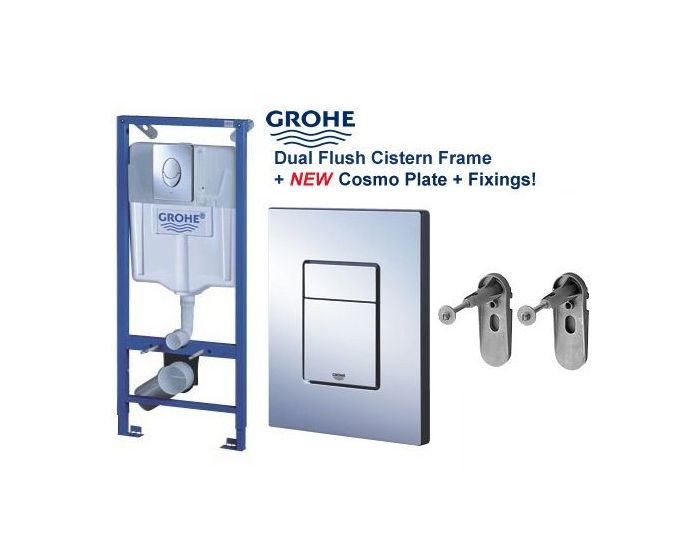

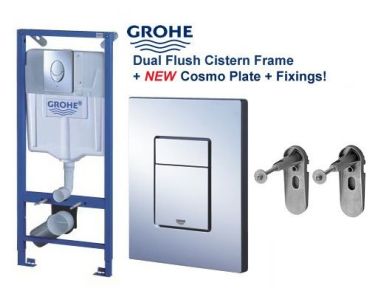

38528001 - Rapid SL WC 1.13m dual or single flush 1.13 m installation height front actuation 38732000 - Skate Cosmo Air Horizontal/Vertical dual flush wallplate 3855800M Wall brackets for against the wall installation of frame
Rapid sl wc 1.13 m dual or single flush 1.13 m installation height
Front actuation For on-the-wall installations or studded walls Powder coated steel frame, self-supportingfor dry-cladding, completely Pre-assembledwith fixed connections For single or series installation Fixing material 2 wc fixing bolts Distance of fixing bolts 180/230 mm Pp-outlet bend 80/100 mm dia. Inlet and outlet connecting set Removable lid connection from left/right, Top and back Insulated against condensation With angle stop valve and flush pipe
38732000 - Cosmo Air Horizontal/Vertical dual flush wallplate:
for horizontal installation for dual flush actuation 156 x 197 mm for pneumatic drop valve made of ABS
3855800M Wall brackets for against the wall installation of frame:
for against-the-wall installations for fixing the elements at the brick-wall or in front of the studded wall steady vertical adjustment from 130 - 230 mm fixing material 2 pieces
