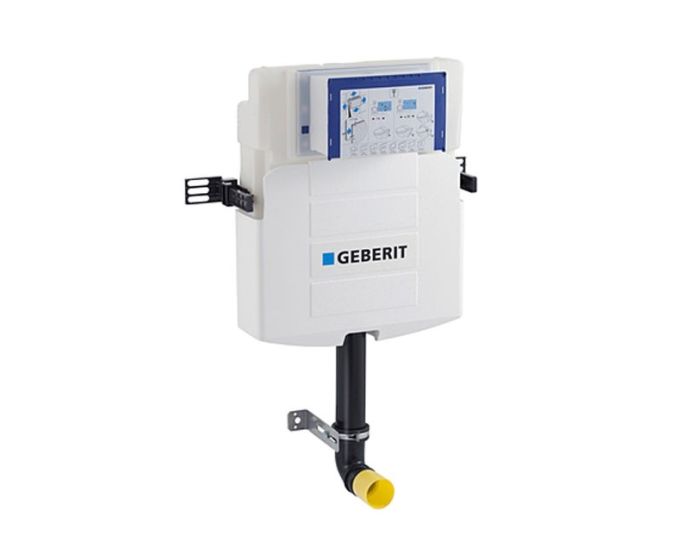

Geberit UP320 Sigma Cistern Dual Flush Concealed Cistern - Front Mounted Plates
Stock Code:
109.309.00.5
Geberit UP320 Sigma Cistern Dual Flush Concealed Cistern - Front Mounted Plates
Stock Code:
109.309.00.5
View All: Toilet Cisterns & Frames
View All Geberit Products
£143.94
Excl. VAT
£119.95
Excl. VAT
Available - Delivery within 2-3 Working Days
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
Geberit UP320 SIGMA Cistern Concealed DUAL FLUSH Concealed Cistern - For FRONT Mounted Plates.
Application:
For concealed installation
For back to wall floor-standing WCs
Characteristics:
Fully insulated against condensation
Front flush
Protection housing for service opening can be cut to length
Flushing unit for dual flush and single flush
Adjustable flushing volume
Water supply connection at centre back or at the top
Flush bend fitted
Installation height 1080 mm (can be cut down depending on the WC pan performance)
Installation depth adjustable 160 - 205 mm
Fastening bracket adjustable in depth
Can be reversed to give access from behind in a duct situation when flushed with HyTouch pneumatic buttons or HyTronic sensor flush
Application:
For concealed installation
For back to wall floor-standing WCs
Characteristics:
Fully insulated against condensation
Front flush
Protection housing for service opening can be cut to length
Flushing unit for dual flush and single flush
Adjustable flushing volume
Water supply connection at centre back or at the top
Flush bend fitted
Installation height 1080 mm (can be cut down depending on the WC pan performance)
Installation depth adjustable 160 - 205 mm
Fastening bracket adjustable in depth
Can be reversed to give access from behind in a duct situation when flushed with HyTouch pneumatic buttons or HyTronic sensor flush
Specifications of the Geberit UP320 Sigma Cistern
Flush volume factory setting: 6 and 3 l
Flush volume small range: 3 - 4 l
Water supply pressure range: 0.1 - 10 bar
Operating temperature water: max. 25 'C
Plates to use (to be ordered seperately) - View Range of Plates Available
Dual flush with flush plate Samba Sigma 20 Twist or Bolero
Dual flush with Artline plate with adaptor box 240.962.00.1
Dual flush with dual flush HyTouch pneumatic buttons
Single flush with flush plates Rumba Mambo or Tango
Single flush with HyTronic infra-red flush or HyTouch single flush pneumatic buttons
Colour: Acrylic
Flush volume factory setting: 6 and 3 l
Flush volume small range: 3 - 4 l
Water supply pressure range: 0.1 - 10 bar
Operating temperature water: max. 25 'C
Plates to use (to be ordered seperately) - View Range of Plates Available
Dual flush with flush plate Samba Sigma 20 Twist or Bolero
Dual flush with Artline plate with adaptor box 240.962.00.1
Dual flush with dual flush HyTouch pneumatic buttons
Single flush with flush plates Rumba Mambo or Tango
Single flush with HyTronic infra-red flush or HyTouch single flush pneumatic buttons
Colour: Acrylic
EAN: 4025416857679
