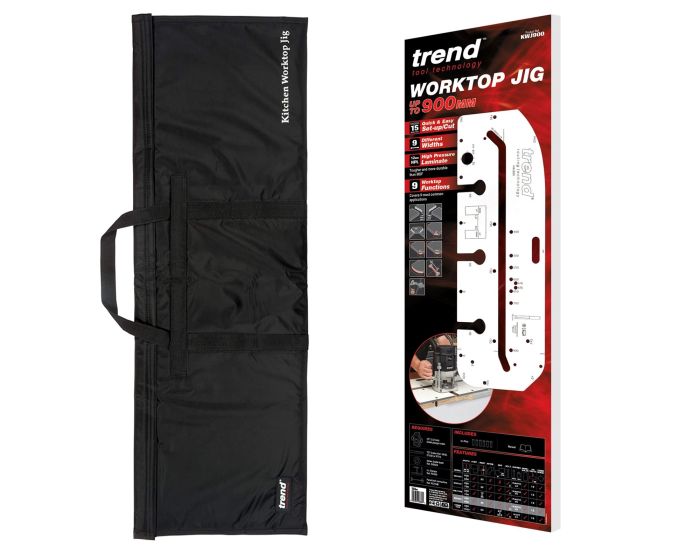

Trend KWJ900 Kitchen Worktop Jig 900mm All in One Work Top Jig and Carry Bag
Stock Code:
KWJ900_BAG
Trend KWJ900 Kitchen Worktop Jig 900mm All in One Work Top Jig and Carry Bag
Stock Code:
KWJ900_BAG
View All: Router Jigs and Accessories
View All Trend Products
£179.96
Excl. VAT
£149.97
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
The Trend Kitchen Worktop Jig is a hard-wearing solid laminate, 12mm thick jig that enables cutting both parts of the joint in 15 minutes including setting up.
The jig has the following features:
Left and right hand corners, 400mm radius peninsular joint, 45° end cut with slight radius, 45° trade corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps.
Engraved lines for 65mm bolts and worktop cross-cut.
6 x 10mm diameter ABS plastic pins with tapered shoulders for a tight fit and 3 point pin contact to ensure ease of setting up.
Tradesman ALL IN ONE work top jig for up to 900 mm worktops.
Hard wearing solid laminate 12 mm thick jig that cuts both parts of the joint in 15-minutes including setting up and left hand and right hand corners, 400 mm radius peninsular joint, 45 degree end cut with slight radius, 45 degree trade corner solution for hob units, 100 mm radius corner, 40 mm radius corner, 35 mm kitchen door hole and 3/4 inch BSP hole for mixer taps.
It covers fixed lengths for 400 mm, 500 mm, 550 mm, 600 mm, 616 mm, 650 mm, 700 mm and 900 mm wide worktops and can cuts up to 40 mm thick worktops with or without anti-drip postformed edge.
Three open-ended bolt recesses (dog bone style) for 150 mm bolts.
Engraved lines for short 65 mm bolts and worktop cross-cut.
10 mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up.
Engraved markings for identification of pin holes.
Hard wearing CNC machined Compact Grade High Pressure Laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up.
Left hand and right hand corners, 400mm radius peninsular joint, 45 degree end cut with slight radius, 45 degree trade corner solution for hob units, 100mm radius corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps.
Fixed lengths for 400mm, 500mm, 550mm, 600mm, 616mm, 635mm, 650mm, 700mm and 900mm wide worktops.
Cuts up to 40mm thick worktops with or without anti-drip postformed edge.
Three open-ended bolt recesses (dog bone style) for 150mm bolts.
Engraved lines for short 65mm bolts and worktop cross-cut.
10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up.
Engraved markings for identification of pin holes.
Pins made from ABS plastic for strength.
Jig requires:
A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
A template guide bush with 30mm outside diameter ref. GB30.
A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length.
Two clamps.
Left hand and right hand corners, 400mm radius peninsular joint, 45 degree end cut with slight radius, 45 degree trade corner solution for hob units, 100mm radius corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps.
Fixed lengths for 400mm, 500mm, 550mm, 600mm, 616mm, 635mm, 650mm, 700mm and 900mm wide worktops.
Cuts up to 40mm thick worktops with or without anti-drip postformed edge.
Three open-ended bolt recesses (dog bone style) for 150mm bolts.
Engraved lines for short 65mm bolts and worktop cross-cut.
10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up.
Engraved markings for identification of pin holes.
Pins made from ABS plastic for strength.
Jig requires:
A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
A template guide bush with 30mm outside diameter ref. GB30.
A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length.
Two clamps.
Trend CASE/1001 Combi 1001 Carry Case - COMBI1001, COMBI1002, KWJ700 and KWJ900
Hard wearing carry cases to protect and allow for ease of carrying of the Trend COMBI1001, COMBI1002, KWJ700, KWJ900 & HR/JIG
Hand carry strap.
Tool not included.
Hard wearing carry cases to protect and allow for ease of carrying of the Trend COMBI1001, COMBI1002, KWJ700, KWJ900 & HR/JIG
Hand carry strap.
Tool not included.
Length outside 1250mm
Height outside 415mm
Height outside 415mm
Specification:
Length: 1185 mm.
Width: 390 mm.
Thickness: 12 mm.
Weight: 7.7 Kg.
End cut: 45 degrees.
Corner radius: 40 mm.
Corner radius: 100 mm.
Corner radius: 400 mm.
Corner mitre joint: 45 degrees.
Type:Jig
Brand:Trend
Category:Postform & Kitchen Jigs
Height:400mm
Width:20mm
Depth:1200mm
Weight:8.2kg
MPN:KWJ900
Brand:Trend
Category:Postform & Kitchen Jigs
Height:400mm
Width:20mm
Depth:1200mm
Weight:8.2kg
MPN:KWJ900
EAN: 5055995594718
