Trend KWJ700/PRO Pro Kitchen Worktop Jig 700mm x5 50mm 1/2" TCT Straight Cutters
Stock Code:
KWJ700/PRO_KIT2
Trend KWJ700/PRO Pro Kitchen Worktop Jig 700mm x5 50mm 1/2" TCT Straight Cutters
Stock Code:
KWJ700/PRO_KIT2
View All: Router Jigs and Accessories
View All Trend Products
£196.95
Excl. VAT
£164.12
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews

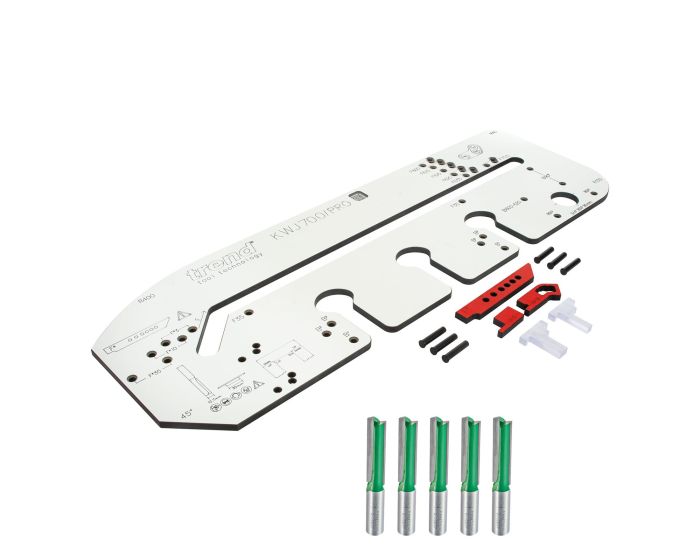

KWJ700/PRO - 700mm Professional Multi-Material Worktop Jig
The new and improved replacement for the KWJ/700
A universal worktop jig for routing mitre joints in laminated, timber and compact laminate surfaces. Features 3mm, 10mm and 35mm inset options, and innovative front edge alignment technology for scribed, out-of-square and non-standard worktops.
Front Edge Alignment Technology* accurately positions the jig directly to the start of the mitre joint to accommodate any worktop width.
Narrow Inset T-Gauges create 3mm and 10mm insets quickly and easily. Perfect for square-edged and modern bullnose worktops; narrow insets give a cleaner aesthetic, prevent cutter wear, and improve cordless router runtime.
Male Cut-Line Positioning Devices* allow the jig to be positioned directly to the male cut line and remove the need for complex length, angle and offset calculations. Ideal for trapped and out-of-square installations.
Preset Connector Bolt Recesses accommodate all standard worktop bolt sizes, including Zipbolt and Unika ‘Slimline’ connection bolts.
Indexed Backsets for 600, 610, 616, 620, 635, and 700mm worktops for standard 90º installations.
400mm Radius for breakfast bar and peninsula trimming.
R100mm, R40mm and 45° Corners for edge finishing.
90° Straight Cuts for accurate skimming and trimming.
35mm Hinge / ¾” BSP Recess for surface-mount monobloc tap and concealed hinge installation.
CNC-Machined Compact Grade HPL provides precision, strength and durability
8mm Radius Gauge ensures worktops are suitable for a 10mm narrow inset.
8.65mm Marking Gauge helps to perfectly position the jig for peninsula, radius and 45° corner finishing.
The new and improved replacement for the KWJ/700
A universal worktop jig for routing mitre joints in laminated, timber and compact laminate surfaces. Features 3mm, 10mm and 35mm inset options, and innovative front edge alignment technology for scribed, out-of-square and non-standard worktops.
Front Edge Alignment Technology* accurately positions the jig directly to the start of the mitre joint to accommodate any worktop width.
Narrow Inset T-Gauges create 3mm and 10mm insets quickly and easily. Perfect for square-edged and modern bullnose worktops; narrow insets give a cleaner aesthetic, prevent cutter wear, and improve cordless router runtime.
Male Cut-Line Positioning Devices* allow the jig to be positioned directly to the male cut line and remove the need for complex length, angle and offset calculations. Ideal for trapped and out-of-square installations.
Preset Connector Bolt Recesses accommodate all standard worktop bolt sizes, including Zipbolt and Unika ‘Slimline’ connection bolts.
Indexed Backsets for 600, 610, 616, 620, 635, and 700mm worktops for standard 90º installations.
400mm Radius for breakfast bar and peninsula trimming.
R100mm, R40mm and 45° Corners for edge finishing.
90° Straight Cuts for accurate skimming and trimming.
35mm Hinge / ¾” BSP Recess for surface-mount monobloc tap and concealed hinge installation.
CNC-Machined Compact Grade HPL provides precision, strength and durability
8mm Radius Gauge ensures worktops are suitable for a 10mm narrow inset.
8.65mm Marking Gauge helps to perfectly position the jig for peninsula, radius and 45° corner finishing.
Also includes x5 Trend Craft Pro 12.7mm 50mm 1/2 Worktop Router Cutter Bits C153X1/2TC
Length 1010 mm
Width 340 mm
Thickness 12 mm
Weight 5.5 kg
Insets 3/10/35 mm
Backsets 600/610/616/620/635/700 mm
Bolt Recesses 3
Bolt Recess Centres 175 mm
Corner Radius 40/100 mm
Peninsular Radius 400 mm
Requires:
Guide Bush 30 mm
Router Cutter 12.7mm dia. x 50 mm length
Plunge Router 1/2inch
F-Clamps min. 80 mm throat x 2
Length 1010 mm
Width 340 mm
Thickness 12 mm
Weight 5.5 kg
Insets 3/10/35 mm
Backsets 600/610/616/620/635/700 mm
Bolt Recesses 3
Bolt Recess Centres 175 mm
Corner Radius 40/100 mm
Peninsular Radius 400 mm
Requires:
Guide Bush 30 mm
Router Cutter 12.7mm dia. x 50 mm length
Plunge Router 1/2inch
F-Clamps min. 80 mm throat x 2
Trend Craft Pro 12.7mm 50mm 1/2 Worktop Router Cutter Bits C153X1/2TC
Trend CR/KFP/5 Trend Craft pro 12.7mm x 50mm (1/2) shank Worktop Router Cutter bits - 5 Piece Kitchen fitters pack
Five piece cutter pack aimed at kitchen fitters.
Pack includes 1/2 inch diameter x 50mm cut length worktop cutters.
Gives a clean finish to abrasive materials such as chipboard, MDF, plywood and certain hardwoods.
For housing, grooving and mortising.
Features 2mm micrograin Tungsten Carbide tips, for cutting the most abrasive materials to give extra long life.
Non stick PTFE coated.
5 x Worktop cutter (C153X1/2TC)
Trend CR/KFP/5 Trend Craft pro 12.7mm x 50mm (1/2) shank Worktop Router Cutter bits - 5 Piece Kitchen fitters pack
Five piece cutter pack aimed at kitchen fitters.
Pack includes 1/2 inch diameter x 50mm cut length worktop cutters.
Gives a clean finish to abrasive materials such as chipboard, MDF, plywood and certain hardwoods.
For housing, grooving and mortising.
Features 2mm micrograin Tungsten Carbide tips, for cutting the most abrasive materials to give extra long life.
Non stick PTFE coated.
5 x Worktop cutter (C153X1/2TC)
Length 1010 mm
Width 340 mm
Thickness 12 mm
Weight 5.5 kg
Insets 3/10/35 mm
Backsets 600/610/616/620/635/700 mm
Bolt Recesses 3
Bolt Recess Centres 175 mm
Corner Radius 40/100 mm
Peninsular Radius 400 mm
Requires:
Guide Bush 30 mm
Router Cutter 12.7mm dia. x 50 mm length
Plunge Router 1/2inch
F-Clamps min. 80 mm throat x 2
Width 340 mm
Thickness 12 mm
Weight 5.5 kg
Insets 3/10/35 mm
Backsets 600/610/616/620/635/700 mm
Bolt Recesses 3
Bolt Recess Centres 175 mm
Corner Radius 40/100 mm
Peninsular Radius 400 mm
Requires:
Guide Bush 30 mm
Router Cutter 12.7mm dia. x 50 mm length
Plunge Router 1/2inch
F-Clamps min. 80 mm throat x 2
EAN: 5056709517030
