Trend KWJ700 Kitchen Worktop Jig 250mm to 700mm Wide Kitchen Fitting TREKWJ700
Stock Code:
KWJ700
Trend KWJ700 Kitchen Worktop Jig 250mm to 700mm Wide Kitchen Fitting TREKWJ700
Stock Code:
KWJ700
View All: Router Jigs and Accessories
View All Trend Products
£101.87
Excl. VAT
£84.89
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews

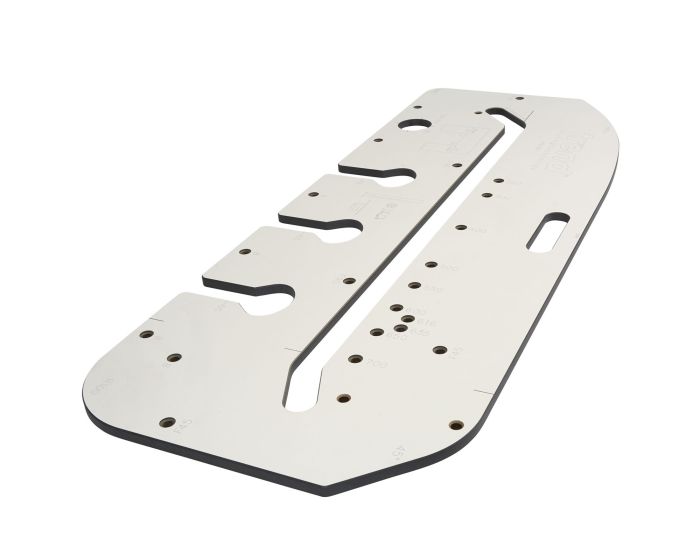

The Trend Kitchen Worktop Jig is a hard-wearing solid laminate, 12mm thick jig that enables cutting both parts of the joint in 15 minutes including setting up.
Left hand and right hand corners, 400mm radius peninsular joint, 45 degree end cut with slight radius, 45 degree trade corner solution for hob units, 100mm radius corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps.
Fixed lengths for 250mm, 300mm, 400mm, 500mm, 550mm, 600mm, 616mm, 635mm. 650mm and 700mm wide worktops.
Cuts up to 40mm thick worktops with or without anti-drip postformed edge.
Three open-ended bolt recesses (dog bone style) for 150mm bolts.
Engraved lines for short 65mm bolts and worktop cross-cut.
10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up.
Engraved markings for identification of pin holes.
Pins made from ABS plastic for strength.
Jig requires:
A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
A template guide bush with 30mm outside diameter ref. GB30.
A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length.
Two clamps.
The jig has the following features:
Left and right hand corners, 400mm radius peninsular joint, 45° end cut with slight radius, 45° trade corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps.
Engraved lines for 65mm bolts and worktop cross-cut.
6 x 10mm diameter ABS plastic pins with tapered shoulders for a tight fit and 3 point pin contact to ensure ease of setting up.
Hard wearing CNC machined Compact Grade High Pressure Laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up.Left hand and right hand corners, 400mm radius peninsular joint, 45 degree end cut with slight radius, 45 degree trade corner solution for hob units, 100mm radius corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps.
Fixed lengths for 250mm, 300mm, 400mm, 500mm, 550mm, 600mm, 616mm, 635mm. 650mm and 700mm wide worktops.
Cuts up to 40mm thick worktops with or without anti-drip postformed edge.
Three open-ended bolt recesses (dog bone style) for 150mm bolts.
Engraved lines for short 65mm bolts and worktop cross-cut.
10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up.
Engraved markings for identification of pin holes.
Pins made from ABS plastic for strength.
Jig requires:
A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
A template guide bush with 30mm outside diameter ref. GB30.
A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length.
Two clamps.
The KWJ700 has fixed lengths for 250mm, 300mm, 400mm, 500mm, 550mm, 600mm, 616mm, 650mm and 700mm worktops.
Length: 985mm.
Width: 390mm.
Thickness: 12 mm.
Weight: 5.4 kg.
End Cut: 45°.
Corner Radii: 40mm, 100mm and 400mm.
Corner Mitre Joint: 45°.
Female cut material width loss: 35 mm.
Type:Jig
Brand:Trend
Category:Postform & Kitchen Jigs
Height:1005mm
Width:20mm
Depth:400mm
Weight:5.8kg
MPN:KWJ700
Brand:Trend
Category:Postform & Kitchen Jigs
Height:1005mm
Width:20mm
Depth:400mm
Weight:5.8kg
MPN:KWJ700
EAN: 5027654559710
