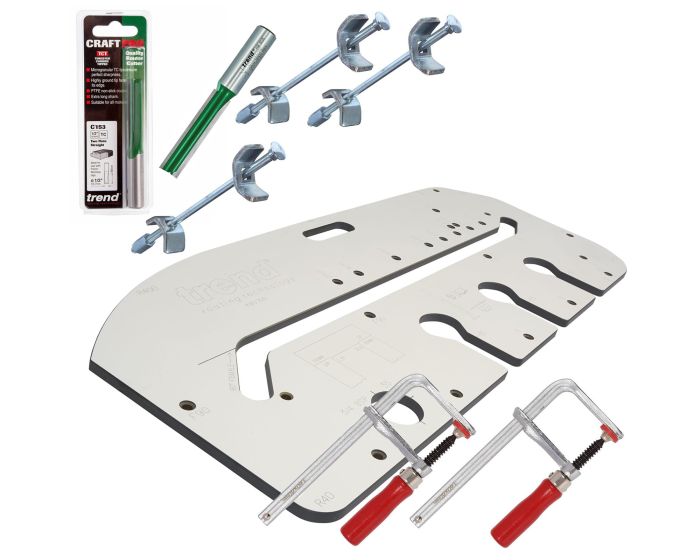

Trend KWJ700 Kitchen Worktop Jig Inc Join Bolts 12.7 C153 Cutter Pair of Clamps

Stock Code:
KWJ700_KIT2

£126.95 £105.79
Add to Wish List
Out of Stock - This Product is Currently Unavailable

Description

The Trend Kitchen Worktop Jig is a hard-wearing solid laminate, 12mm thick jig that enables cutting both parts of the joint in 15 minutes including setting up.

The jig has the following features:

Left and right hand corners, 400mm radius peninsular joint, 45° end cut with slight radius, 45° trade corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps.

Engraved lines for 65mm bolts and worktop cross-cut.

6 x 10mm diameter ABS plastic pins with tapered shoulders for a tight fit and 3 point pin contact to ensure ease of setting up.

Hard wearing CNC machined Compact Grade High Pressure Laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up.
Left hand and right hand corners, 400mm radius peninsular joint, 45 degree end cut with slight radius, 45 degree trade corner solution for hob units, 100mm radius corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps.
Fixed lengths for 250mm, 300mm, 400mm, 500mm, 550mm, 600mm, 616mm, 635mm. 650mm and 700mm wide worktops.
Cuts up to 40mm thick worktops with or without anti-drip postformed edge.
Three open-ended bolt recesses (dog bone style) for 150mm bolts.
Engraved lines for short 65mm bolts and worktop cross-cut.
10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up.
Engraved markings for identification of pin holes.
Pins made from ABS plastic for strength.
Jig requires:
A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
A template guide bush with 30mm outside diameter ref. GB30.
A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length.
Two clamps.

The KWJ700 has fixed lengths for 250mm, 300mm, 400mm, 500mm, 550mm, 600mm, 616mm, 650mm and 700mm worktops.

Trend CraftPro Cutter with two flute carbide TCT tips for cleaner cutting edges and fast clearance of waste in all timber and timber-based materials. With a bottom cut feature. The PTFE coating minimises heat and resin build-up for increased cutter performance and longevity.
1/2in shank for heavier workloads, ideal for router table work and for use in bigger routers. The 'K' mark shank ensures safe working practices. Suitable for a wide range of applications such as engraving, grooving, rebating and shallow morticing. Use on softwoods, hardwoods, MDF, plywood and chipboard.

12.7mm diameter X 50mm cutting depth; the essential cutter for routing post formed joints with worktop jigs in tops up to 40mm thick.
Cut crisp and clean precision fit joints every time; especially suited for use on abrasive chipboard core laminate faced worktops.
Bottom cut feature for plunge work including stopped grooving and morticing applications.
PTFE coating to minimise heat and resin build up for increased cutter performance and longevity.
1/2in shank for use in bigger routers and heavier applications with 'K'mark shank to ensure safe working practices.
The Trend C153 x 1/2 TCT Two Flute Workshop Cutter has the following specification:

Cutting Diameter: 12.7mm (1/2in)
Cutting Depth: 50mm (2in)
Overall Length: 93.5mm
Shank Diameter: 1/2in

The Trend KWJ/P/TCL Pro Jig Track Clamps (Pair) are high quality clamps for Pro Workshop Jigs, track saw guide rails and any standard non track jigs.

Features

T Section works with KWJ Pro jigs and track saw guides, enabling a perfect fit to the jig and track guide slots
Durable forged steel fixed arm
The ergonomic wooden handle is shaped for comfort and maximum tightening
Fits 18mm MFT top allowing quick clamping
Provides 1800Nm clamping force for secure workpiece clamping
Clamps up to 160mm thickness, clamp thickness can be adjusted
Ball knuckle clamp head with a protective pad prevents marring protecting materials
Hardened alloy steel thread maintains torque for secure clamping

These Worktop Clamps eliminate the need for surface mounted worktop joining strips. The nut is tightened onto the bolt, pressing the caps against the walls of the 35mm diameter holes.
The clamps are Zinc plated for increased resistance to corrosion.
Zinc coatings prevent oxidation of the protected metal to create a longer lasting finish. It does this by forming a barrier and by acting as a sacrificial anode if this barrier is damaged. Zinc oxide is a fine white dust that (in contrast to iron oxide) does not trigger a breakdown of the substrate’s surface integrity as it is formed. The zinc oxide, if left intact, can act as a barrier to further oxidation, in a way similar to the protection afforded to aluminum and stainless steels by their oxide layers.
Panel butt connectors to connect worktop joints together. Saves time and money in assembling worktops.
Metal ended worktop connectors.

Requires 10mm A/F spanner to tighten.
3 x Metal ended worktop connectors

Compatibility: 8mm x 12mm T Slot Guide Rail Systems (Makita, Festool, Evolution, Triton) , Trend Jigs, Multi-Function Tables and Pro Pocket Hole Jigs

T slot guide rail systems include Makita, Festool, Evolution, Triton

Length: 985mm.
Width: 390mm.
Thickness: 12 mm.
Weight: 5.4 kg.
End Cut: 45°.
Corner Radii: 40mm, 100mm and 400mm.
Corner Mitre Joint: 45°.
Female cut material width loss: 35 mm.

Specifications

Type:Jig
Brand:Trend
Category:Postform & Kitchen Jigs
Height:1005mm
Width:20mm
Depth:400mm
Weight:5.8kg
MPN:KWJ700
EAN: 5055995594671
