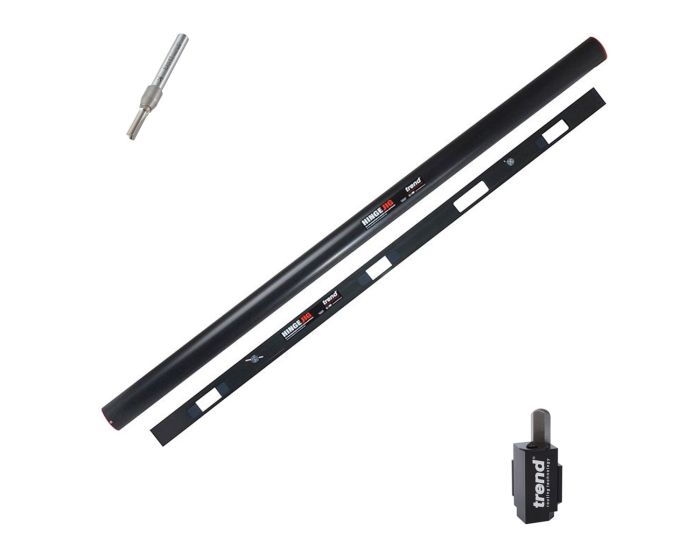

Trend HINGE/JIG Hinge Jig Recessing Template Guide + Corner Chisel + 5mm Cutter
Stock Code:
HINGE/JIG_KIT1
Trend HINGE/JIG Hinge Jig Recessing Template Guide + Corner Chisel + 5mm Cutter
Stock Code:
HINGE/JIG_KIT1
View All: Router Jigs and Accessories
View All Trend Products
£289.95
Excl. VAT
£241.62
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
The Trend Hinge Jig is a portable template set designed for recessing hinges in wooden doors and frames. Used on-site and in joinery shops to increase productivity with excellent results. Four apertures for fire door requirements. No need for marking out in the conventional way. Quick and simple to set-up as the hinge is used as the pattern.
Clean and accurate recesses are achieved every time. Suitable for timber based doors and square butt hinges. Use with a light duty router with 1/4inch collet. Long reach router cutter required, 12mm diameter with 70mm overall length. Angled position slots to prevent creep.
Patent No. GB2285410.
Includes: 4 x Apertures, 2 x Bradawls, 1 x 16mm Guide Bush, 1 x T-Handle Hex Key, 1 x 4mm Spacing Gauge and 1 x Plastic Storage Tube.
Specification
Hinge Sizes Possible:
Length Min/Max: 67-127mm (2.5/8-5in).
Width Min/Max: 9.5-35mm (3/8-1.3/8in).
Door Sizes Possible:
Height Min/Max: 1955-2032mm (6ft 5in - 6ft 10in).
Thickness Min/Max: 16-44mm.
TR03X1/4TC - Two flute cutter 5mm diameter
Gives a clean finish to abrasive materials such as chipboard, MDF, plywood and certain hardwoods.
For housing, grooving and mortising.
Features 2mm micrograin Tungsten Carbide tips, for cutting the most abrasive materials to give extra long life.
PTFE coated, indicated by distinctive black colouring.
Can be used on hardwood & softwood, fibreboard, plywood and particle board.
Etched dimensions on extra long 40mm shanks.
Trend C/CHISEL Corner Chisel
To quickly square up rounded corners when using lock and hinge jigs.
Allows a rounded recess in wood to be cut to a square recess with the use of a hammer.
Ideal for squaring hinge recesses in door frames and door edges, as well as lock faceplates.
Spring loaded high speed steel (HSS) anvil for a sharp cut and long life.
Light weight aluminium body design.
Can be used with the Trend Hinge Jig.
Can be resharpened.
Gives a clean finish to abrasive materials such as chipboard, MDF, plywood and certain hardwoods.
For housing, grooving and mortising.
Features 2mm micrograin Tungsten Carbide tips, for cutting the most abrasive materials to give extra long life.
PTFE coated, indicated by distinctive black colouring.
Can be used on hardwood & softwood, fibreboard, plywood and particle board.
Etched dimensions on extra long 40mm shanks.
Trend C/CHISEL Corner Chisel
To quickly square up rounded corners when using lock and hinge jigs.
Allows a rounded recess in wood to be cut to a square recess with the use of a hammer.
Ideal for squaring hinge recesses in door frames and door edges, as well as lock faceplates.
Spring loaded high speed steel (HSS) anvil for a sharp cut and long life.
Light weight aluminium body design.
Can be used with the Trend Hinge Jig.
Can be resharpened.
Type:Hinge Jig
Brand:Trend
Category:Hinge & Specialists Jigs
Height:2070mm
Width:110mm
Depth:110mm
Weight:7.51kg
MPN:HINGE/JIG
Brand:Trend
Category:Hinge & Specialists Jigs
Height:2070mm
Width:110mm
Depth:110mm
Weight:7.51kg
MPN:HINGE/JIG
EAN: 5056709532323
