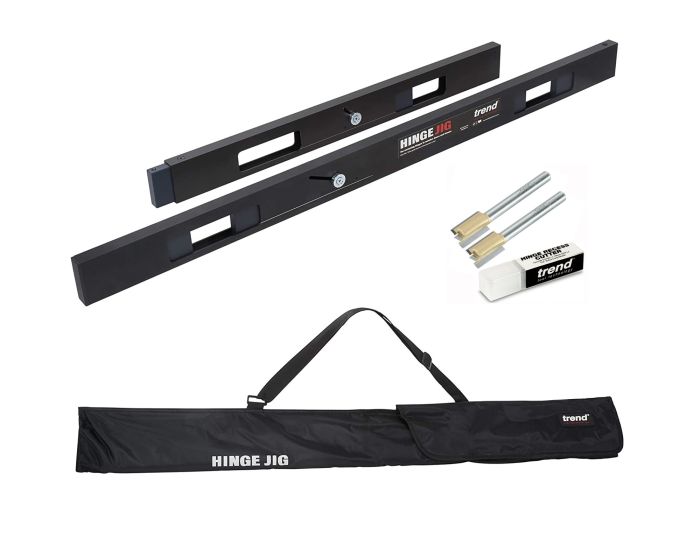

Trend H/JIG/A 2 Part Hinge Jig with x2 12x70mm Cutters Door Hinge Template
Stock Code:
H/JIG/A_CUTTERS
Trend H/JIG/A 2 Part Hinge Jig with x2 12x70mm Cutters Door Hinge Template
Stock Code:
H/JIG/A_CUTTERS
View All: Router Jigs and Accessories
View All Trend Products
£244.95
Excl. VAT
£204.12
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
A 2-part hinge jig, portable template set designed for recessing hinges in wooden doors and frames.
It is easy-to-use with minimal setting-up time, completing the job both accurately and quickly.
Used on-site and in joinery shops to increase productivity with excellent results.
Four apertures for fire door requirements.
No need for marking out in the conventional way.
Quick and simple to set-up as the hinge is used as the pattern.
Clean and accurate recesses are achieved every time. Suitable for timber based doors and square butt hinges.
Use with a light-duty router with 1/4 inch collet.
Long reach router cutter required, 12 mm diameter with 70 mm overall length.
Angled position slots to prevent creep.
It is easy-to-use with minimal setting-up time, completing the job both accurately and quickly.
Used on-site and in joinery shops to increase productivity with excellent results.
Four apertures for fire door requirements.
No need for marking out in the conventional way.
Quick and simple to set-up as the hinge is used as the pattern.
Clean and accurate recesses are achieved every time. Suitable for timber based doors and square butt hinges.
Use with a light-duty router with 1/4 inch collet.
Long reach router cutter required, 12 mm diameter with 70 mm overall length.
Angled position slots to prevent creep.
Hinge sizes possible:
Length min: 2 5/8 in (67 mm).
Length max :5 in (127 mm).
Width min :3/8 in (9.5 mm).
Width max: 1 3/8 in (35 mm).
Door sizes possible:
Height min: 6 ft 5 in (1955 mm).
Height max: 6 ft 10 in (2100 mm).
Thickness min: 5/8 in (16 mm).
Trend BR04 BR04X1/4TC 12mm 1/4" Router Hinge Recess Cutter
Two flute TC cutter giving good chip clearance.
Ideal for shallow lateral routing cuts such as recessing hinges.
Corners will require final trimming square with a hand chisel or a corner chisel.
Two flute TC cutter giving good chip clearance.
Ideal for shallow lateral routing cuts such as recessing hinges.
Corners will require final trimming square with a hand chisel or a corner chisel.
Type:Hinge Jig
Brand:Trend
Category:Hinge & Specialists Jigs
Height:1295mm
Width:90mm
Depth:135mm
Weight:4.52kg
MPN:H/JIG/A
Brand:Trend
Category:Hinge & Specialists Jigs
Height:1295mm
Width:90mm
Depth:135mm
Weight:4.52kg
MPN:H/JIG/A
EAN: 5055995595494
