Trend DG/JIG Sink Worktop Draining Groove Jig and 6mm Radius Rounded Cutter Bit
Stock Code:
DG/JIG_6.0
Trend DG/JIG Sink Worktop Draining Groove Jig and 6mm Radius Rounded Cutter Bit
Stock Code:
DG/JIG_6.0
View All: Router Jigs and Accessories
View All Trend Products
£156.95
Excl. VAT
£130.79
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews

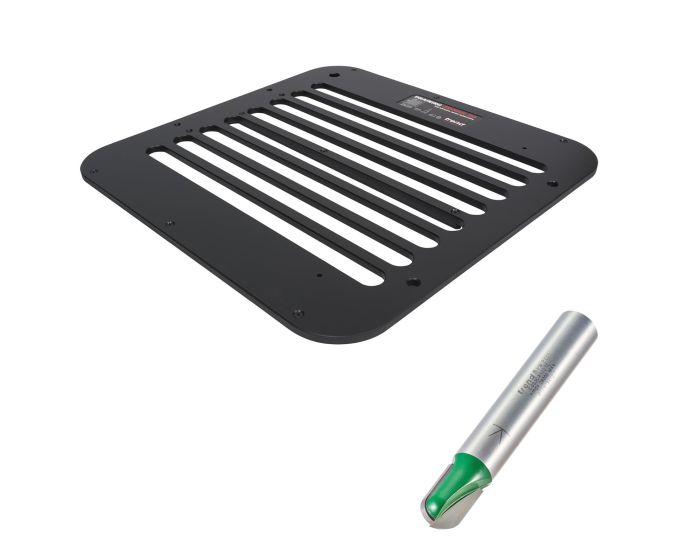

The Trend Draining Groove Jig is perfect for routing draining grooves in solid timber for Belfast type sinks. Made from 12mm hardwearing CNC machined phenolic. It provides a 0.5° fall with grooves at 50mm pitch and 455mm long. With sight marks for lining up and three removable sloping runners for support. There is also a cutter diameter check hole and fixing holes for user made stops for repetitious work.
CNC-Machined Compact Grade HPL provides precision, strength and durability.
3 Support Runners to minimise jig deflection and maximise router support.
8 Drainer Grooves at 50mm pitch and 455mm long.
Etched Sight Lines for quick setup.
In-Built 0.5° Fall to minimize setup time and remove the need for spacers.
Edge Guide Fixing Holes to accommodate user-made edge guides for repetitive installations.
Requires: ½” router (min.1300W), cutter and 2 x F-Clamps.
Cutter included: C053CX1/2TC (6.0mm radius)
Specification
Fall: 0.5°.
Groove Pitch: 50mm.
Groove Length: 455mm.
Slat Width: 19.8mm.
Type:Jig
Brand:Trend
Category:Postform & Kitchen Jigs
Height:640mm
Width:40mm
Depth:610mm
Weight:2.64kg
MPN:DG/JIG
Brand:Trend
Category:Postform & Kitchen Jigs
Height:640mm
Width:40mm
Depth:610mm
Weight:2.64kg
MPN:DG/JIG
EAN: 5055995593391
