Trend 2 Part Skeleton Door Hinge Jig + Corner Chisel + Router Bit H/JIG/C HJIGC
Stock Code:
H/JIG/C_KIT1
Trend 2 Part Skeleton Door Hinge Jig + Corner Chisel + Router Bit H/JIG/C HJIGC
Stock Code:
H/JIG/C_KIT1
View All: Router Jigs and Accessories
View All Trend Products
£289.95
Excl. VAT
£241.62
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews

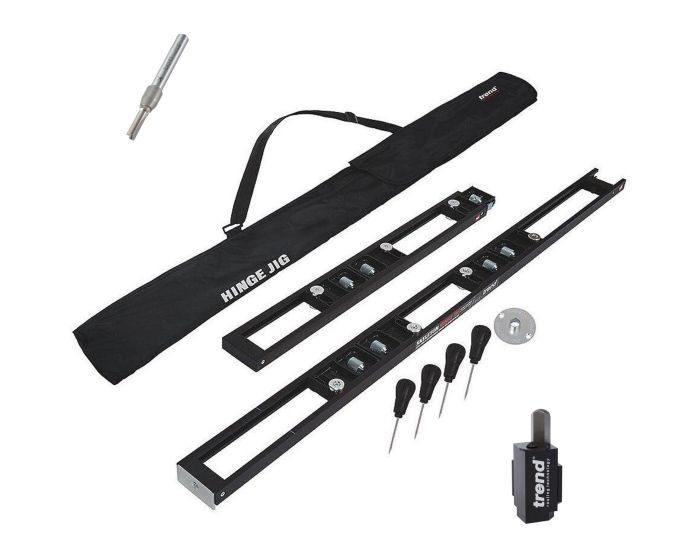

The Trend Skeleton Hinge Jig is a 2-part, adjustable portable template set designed for recessing hinges in wooden doors and frames with a router. It is easy to use with minimal setting-up time, ensuring that the job can be completed accurately and quickly. It is ideal for use on-site and in joinery shops to increase productivity with excellent results.
The jig has fully adjustable apertures for fire door requirements and renovation work. It is ideal for fitting a new door into an old frame and is suitable for timber-based doors and square butt hinges.
The jig is supplied with a carry case, bradawls and a special 16mm guide bush.
TR03X1/4TC - Two flute cutter 5mm diameter
Gives a clean finish to abrasive materials such as chipboard, MDF, plywood and certain hardwoods.
For housing, grooving and mortising.
Features 2mm micrograin Tungsten Carbide tips, for cutting the most abrasive materials to give extra long life.
PTFE coated, indicated by distinctive black colouring.
Can be used on hardwood & softwood, fibreboard, plywood and particle board.
Etched dimensions on extra long 40mm shanks.
Trend C/CHISEL Corner Chisel
To quickly square up rounded corners when using lock and hinge jigs.
Allows a rounded recess in wood to be cut to a square recess with the use of a hammer.
Ideal for squaring hinge recesses in door frames and door edges, as well as lock faceplates.
Spring loaded high speed steel (HSS) anvil for a sharp cut and long life.
Light weight aluminium body design.
Can be used with the Trend Hinge Jig.
Can be resharpened.
Gives a clean finish to abrasive materials such as chipboard, MDF, plywood and certain hardwoods.
For housing, grooving and mortising.
Features 2mm micrograin Tungsten Carbide tips, for cutting the most abrasive materials to give extra long life.
PTFE coated, indicated by distinctive black colouring.
Can be used on hardwood & softwood, fibreboard, plywood and particle board.
Etched dimensions on extra long 40mm shanks.
Trend C/CHISEL Corner Chisel
To quickly square up rounded corners when using lock and hinge jigs.
Allows a rounded recess in wood to be cut to a square recess with the use of a hammer.
Ideal for squaring hinge recesses in door frames and door edges, as well as lock faceplates.
Spring loaded high speed steel (HSS) anvil for a sharp cut and long life.
Light weight aluminium body design.
Can be used with the Trend Hinge Jig.
Can be resharpened.
Specifications:
Pre-set hinge sizes: 20mm, 25mm and 30mm.
Hinge sizes possible:
Minimum length: 67mm (2.5/8in).
Maximum length: 127mm (5in).
Minimum width: 12.7mm (1/2in).
Maximum width: 35mm (1.3/8in).
Door sizes possible:
Minimum height: 1,956mm (6ft5in).
Maximum height: 2,100mm (6ft10in).
Minimum thickness: 16mm (5/8in).
Maximum thickness: 51mm (2in).
Weight: 2.9kg.
Overall length: 1,956mm.
Type:Hinge Jig
Brand:Trend
Category:Hinge & Specialists Jigs
Height:113mm
Width:2070mm
Depth:113mm
Weight:4.344kg
MPN:H/JIG/C
Brand:Trend
Category:Hinge & Specialists Jigs
Height:113mm
Width:2070mm
Depth:113mm
Weight:4.344kg
MPN:H/JIG/C
EAN: 5056709532309
