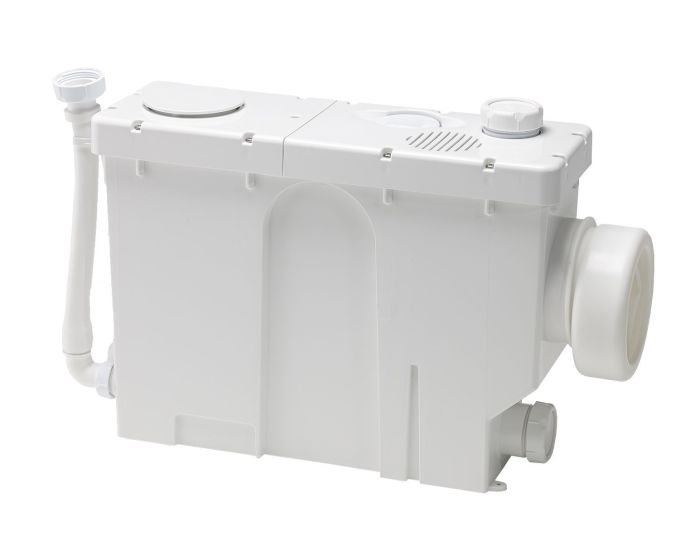

Stuart Turner 46653 Bathroom Macerator WC4C Wasteflo Pump
Stock Code:
46653
Stuart Turner 46653 Bathroom Macerator WC4C Wasteflo Pump
Stock Code:
46653
View All: Macerators and Pumps
View All Stuart Turner Products
£284.93
Excl. VAT
£237.44
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
The Wasteflo WC4C macerator is ideal when transforming any area into a complete bathroom or en-suite.
The slimiline design of the Wasteflo WC4C macerator is designed for installation out of sight behind a stud-partition or other enclosed space and is ideal for use with a back to wall or wall-hung toilet.
An innovative watertight cassette unit enables easy removal, cleaning and maintenance of the working parts without having to remove the WC, cistern or pipework.
Key Features:
WC coupling features innovative inbuilt height adjustment ( 16 mm) to accomodate variations in WC outlet postion.
Two side inlets suitable for 32 mm (1 ") waste pipe to connect to a basin or shower (40 mm (1 ") inlet adaptor included).
One top inlet suitable for 32 mm (1 ") waste pipe to connect to a basin (40 mm (1 ") inlet adaptor included).
Outlet - suitable for 32 mm, 28 mm or 22 mm waste pipe.
Pumps up to 5 m vertically or 52 m horizontally.
Maximum flow rate of 90 l/min.
Complies with BS EN 12050.
Typical 50 dB noise level.
Supplied pre-wired with 1.5 m power cable.
The slimiline design of the Wasteflo WC4C macerator is designed for installation out of sight behind a stud-partition or other enclosed space and is ideal for use with a back to wall or wall-hung toilet.
An innovative watertight cassette unit enables easy removal, cleaning and maintenance of the working parts without having to remove the WC, cistern or pipework.
Key Features:
WC coupling features innovative inbuilt height adjustment ( 16 mm) to accomodate variations in WC outlet postion.
Two side inlets suitable for 32 mm (1 ") waste pipe to connect to a basin or shower (40 mm (1 ") inlet adaptor included).
One top inlet suitable for 32 mm (1 ") waste pipe to connect to a basin (40 mm (1 ") inlet adaptor included).
Outlet - suitable for 32 mm, 28 mm or 22 mm waste pipe.
Pumps up to 5 m vertically or 52 m horizontally.
Maximum flow rate of 90 l/min.
Complies with BS EN 12050.
Typical 50 dB noise level.
Supplied pre-wired with 1.5 m power cable.
Specifications of the Stuart Turner 46653
Product code 46653
Guarantee 2 years
Adjustable WC coupling
Slimline design
Easy access cassette unit
Noise level 50 dB (typical)
Maximum head 5.4 metres
Pumping distance (vertical) Up to 5 metres
Pumping distance (horizontal) Up to 52 metres
Maximum flow 90 l/min
Maximum ambient air temperature 40 C
Min / Max water temperature Min 4 C / Max 50 C
WC 102 mm dia.
Inlet(s) 40 mm (1 ") dia.
Outlet 32 mm, 28 mm, 22 mm wastepipe adaptor
Duty rating Continuous
Power supply/phase/frequency 230 V a.c./ 1 / 50 Hz
Current (full load) 2.2 Amps
Power consumption 500 Watts
Fuse rating 5 Amps
Power cable (pre-wired) 1.5 metres
Physical
Enclosure protection IPX4
Length 540 mm
Width 150 mm
Height (excluding hoses) 320 mm
Weight (including fittings) 7.4 Kg
Product code 46653
Guarantee 2 years
Adjustable WC coupling
Slimline design
Easy access cassette unit
Noise level 50 dB (typical)
Maximum head 5.4 metres
Pumping distance (vertical) Up to 5 metres
Pumping distance (horizontal) Up to 52 metres
Maximum flow 90 l/min
Maximum ambient air temperature 40 C
Min / Max water temperature Min 4 C / Max 50 C
WC 102 mm dia.
Inlet(s) 40 mm (1 ") dia.
Outlet 32 mm, 28 mm, 22 mm wastepipe adaptor
Duty rating Continuous
Power supply/phase/frequency 230 V a.c./ 1 / 50 Hz
Current (full load) 2.2 Amps
Power consumption 500 Watts
Fuse rating 5 Amps
Power cable (pre-wired) 1.5 metres
Physical
Enclosure protection IPX4
Length 540 mm
Width 150 mm
Height (excluding hoses) 320 mm
Weight (including fittings) 7.4 Kg
EAN: 5050400466536
