Stanley FatMax Tradelift Lifting Clamp Installation 150kg + Plus 685mm Extension Buyaparcel

Description

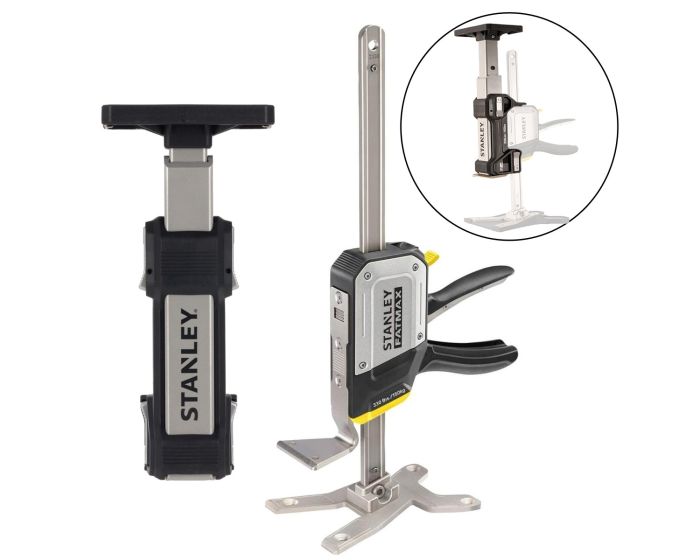

1 x STANLEY® FatMax® Tradelift™ Plus Extention FMHT83550-1

This durable telescopic extension accessory is designed for use with the award-winning STANLEY® FATMAX™ TradeLift™. It adjusts to working heights between 295mm and 685mm*, providing a true extension of the tool. With an impressive maximum load capacity of 150kg, it features a lift plate that mirrors the base plate dimensions for enhanced stability during use.

Engineered with safety in mind, the accessory securely attaches to the TradeLift™ to prevent separation while in operation. Its aluminium construction, combined with reinforced plastic components, ensures long-lasting durability.

For ease of use, both attachment and adjustment are completely tool-free. Aluminium levers at the base allow for quick fitting and removal, while locking pins secure the telescopic extension at three height settings for added flexibility. A removable cover on the lifting plate helps protect surfaces from scratches and marks.

Ideal for solo work, the TradeLift™ is designed to assist with lifting and positioning heavy or bulky items such as stairs, windows, cabinets, and appliances—making it a practical solution for professional lifting, levelling, holding, and installation tasks.

Features

Telescopic design offering adjustable working heights from 295 mm to 685 mm for enhanced flexibility and stability
Lift plate matches the base plate dimensions to ensure optimal stability
Supports a maximum load capacity of 150 kg
Built from durable aluminium with reinforced plastic components
Secure attachment using aluminium levers, with no tools required
Tool-free height adjustment with aluminium locking pins at three positions
Removable cover on the lifting plate helps protect surfaces from damage
Available as a single unit (FMHT83554-1) or twin pack (FMHT83556-1)
Maximum height achieved with the TradeLift fully extended; minimum height with the TradeLift fully lowered

1 x STANLEY® FatMax® Tradelift™ STA183550

STANLEY® FatMax® Tradelift™ with push down lever, allows the user to push down on the handle for easier lifting of heavy loads vs a trigger style mechanism. 8mm per stroke. There is also an incremental lowering tab that lowers the lift plate 2.5mm per toggle for fine adjustments. Fitted with an overmould handle for improved comfort and grip. A recessed full release acts as a safety feature preventing accidental acitivation of full release.

Its enclosed metal plate housing provides improved durability, this prevents dust and debris from entering the tool. The enlarged base plate is extended at rear for added stability. An angled edge makes it easier to slide the base under objects. Anchor points with countersunk screw holes allow the user to fasten the lift down for added stability.

Ideal for use in a wide variety of work enviroments and trades; such as kitchen fitters, door/window fitters, carpenters, joiners, drywallers, flooring installers and general construction. Examples of application; lifting and levelling kitchen units, nudging heavy objects in to place, lifting and holding doors in place, fitting windows, etc.

Specification:

Lifting Force: 150kg.
Lifting Capacity: 7-220mm.
Lifting Action: Lever.
Lift Stroke Capacity: 8mm.
Incremental Lowering: 2.5mm.
Base Dimensions: 6 x 170 x 125mm.

Specification

Specifications

Brand: STANLEY®

1 x STANLEY® FatMax® Tradelift™ Plus Extention FMHT83550-1

Product Height [mm]
295
Product Length [mm]
85
Product Weight Gross [Kg]
1.3
Product Weight [Kg]
1.3
Product Width [mm]
105
Spreading Capacity [mm]
685
Spreading Function
Yes
Weight Capacity [Kg]
150

1 Year Warranty

EAN: 5056709540182

Warranty

Stanley is confident of the quality of its products and offers an outstanding 12 months warranty for users of the product.

Exclusions apply:

The product has been used in accordance with any instructions provided and has not been subject to misuse, excessive force, load or mechanical impact.
The product has been subject to fair wear and tear.
Repairs have not been attempted by unauthorised persons.
Proof of purchase is produced.

Most Stanley Fatmax products have a 3 year guarantee if the product is registered online within 4 weeks of purchase.

To register your product, find you local Stanley dealer or for more information please visit the Stanley website.
