Sealey VS8813 OBD Breakout Box 16-Pin 12V/24V
Stock Code:
VS8813

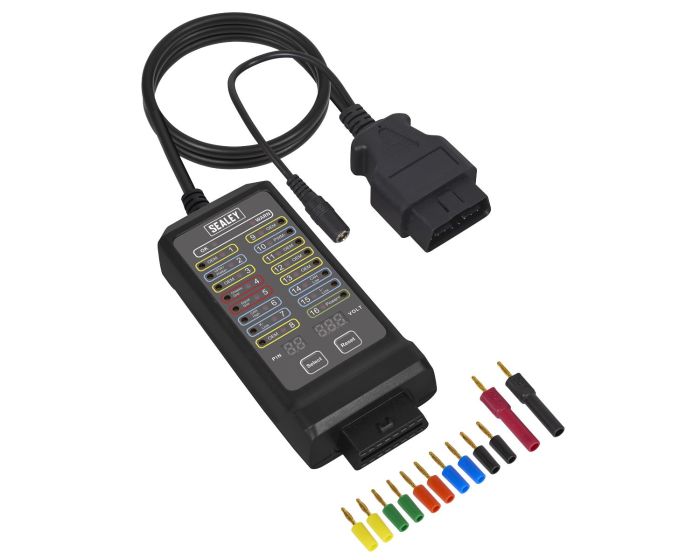

Sealey VS8813 OBD Breakout Box 16-Pin 12V/24V
Stock Code:
VS8813
View All: Other Hand Tools
View All Sealey Products
£93.46
Excl. VAT
£77.88
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
Test the onboard diagnostics port for any faults before connecting other diagnostic devices to the DLC. The breakout box is designed to be connected in series with 16-pin OBDII/EOBDII diagnostic equipment. It can also be connected to multimeters and oscilloscopes. Compatible with 12 and 24V systems. The selectable pin voltage indicator shows the real-time voltage of the selected pin. Communication Protocol Indicator - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE. Overload protection protects any connected diagnostic equipment from damage.
TESTS THE ON-BOARD DIAGNOSTOC PORT - For any faults before connecting other diagnostic devices to the DLC.
UNIQUE DESIGN The breakout box can be connected in series with 16-pin OBDII/EOBDII diagnostic equipment.
CONNECTS TO MULTIMETERS AND OSCILLOSCOPES To enable further testing.
COMPATIBLE - With 12 and 24V systems.
SELECTABLE PIN VOLTAGE INDICATOR - Shows the real-time voltage of the selected pin.
COMMUNICCATION PROTOCOL INDICATOR - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE.
OVERLOAD PROTECTION - Protects any connected diagnostic equipment from damage.
Nett Weight: 0.24kg
Input Voltage DC: 9-32V
Maximum Load : 2.0A
Resolution : : 0.1V
Overload Protection : Yes
Reverse Polarity Protection : Yes
Operating Temperature: 0-50
Cable Length: 700mm
Input Voltage DC: 9-32V
Maximum Load : 2.0A
Resolution : : 0.1V
Overload Protection : Yes
Reverse Polarity Protection : Yes
Operating Temperature: 0-50
Cable Length: 700mm
EAN: 5054630471650
