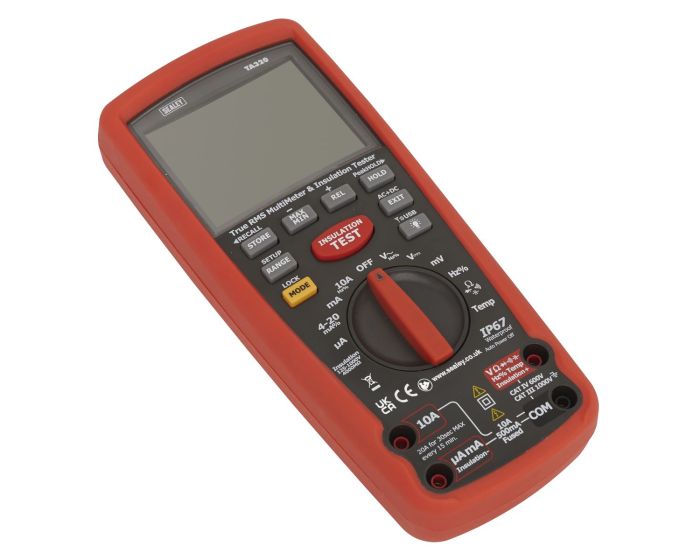

Sealey TA320 Digital Automotive Multimeter/Insulation Tester for Hybrid/Electric Vehicles
Stock Code:
TA320
Sealey TA320 Digital Automotive Multimeter/Insulation Tester for Hybrid/Electric Vehicles
Stock Code:
TA320
View All: Other Hand Tools
View All Sealey Products
£394.38
Excl. VAT
£328.65
Excl. VAT
Available - Delivery within 3-4 Working Days
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
Specially designed for hybrid vehicles and conforms to EN61010 CAT III (1000V) and CAT IV (600V). Unlike other multimeters this unit has an insulation test function that allows testing of the insulation of the high voltage cables and motor generator units found on hybrid vehicles. Can be used as a stand-alone device or linked wirelessly with a USB interface to a PC or laptop enabling results to be graphed, saved or printed. Supplied with high voltage probes, thermocouple soft storage bag and wireless USB cable. The unit also has the usual functions expected on a high quality multimeter including true RMS (Root-Mean-Square) and IP67 waterproof rating.
Specially designed for hybrid vehicles and conforms to EN61010 CAT III (1000V) and CAT IV (600V).
Unlike other multimeters this unit has an insulation test function that allows testing of the insulation of the high voltage cables and motor generator units found on hybrid vehicles.
Can be used as a stand-alone device or linked wirelessly with a USB interface to a PC or laptop enabling results to be graphed, saved or printed.
Supplied with high voltage probes, thermocouple soft storage bag and wireless USB cable.
The unit also has the usual functions expected on a high quality multimeter including true RMS (Root-Mean-Square) and IP67 waterproof rating.
Nett Weight: 700g
Tach (rpm): No
Dwell: No
AC Voltage: 400mV, 4V, 40V, 400V, 1000V
DC Voltage: 400mV, 4V, 40V, 400V, 1000V
AC Current: 400A, 4000A, 40mA, 400mA, 10A
DC Current: 400A, 4000A, 40mA, 400mA, 10A
Capacitance: 40nF, 400nF, 4F, 40F, 400F, 4000F, 40mF
Frequency: 40Hz-10kHz
Duty Cycle: 0.1-99.9%
Pulse Width: 100s-100ms
Resistance: 400, 4k, 40k, 400k, 4M, 40M
Continuity: <35
Temperature: -50 to +1000C, -58 to +1832F
IR Temperature: No
Insulation Test: 125V, 250V, 500V, 1000V
Diode Check: Yes
Transistor Test: No
Back Light: Yes
Bar-Graph Display: Yes
Display Hold: Yes
Auto-Ranging: Yes
Inductive Coupler: No
PC Interface: Yes
Digits Height: 20mm
Auto Power Off: Yes
Low Battery Indicator: Yes
Batteries (Supplied): 6 x 1.5V AA
Hi-Impact Case: Yes
Size (L x W x D): 220 x 95 x 56mm
Weight: 700g
PC Compatibility: Windows 2000, XP, Vista, Win7
Tach (rpm): No
Dwell: No
AC Voltage: 400mV, 4V, 40V, 400V, 1000V
DC Voltage: 400mV, 4V, 40V, 400V, 1000V
AC Current: 400A, 4000A, 40mA, 400mA, 10A
DC Current: 400A, 4000A, 40mA, 400mA, 10A
Capacitance: 40nF, 400nF, 4F, 40F, 400F, 4000F, 40mF
Frequency: 40Hz-10kHz
Duty Cycle: 0.1-99.9%
Pulse Width: 100s-100ms
Resistance: 400, 4k, 40k, 400k, 4M, 40M
Continuity: <35
Temperature: -50 to +1000C, -58 to +1832F
IR Temperature: No
Insulation Test: 125V, 250V, 500V, 1000V
Diode Check: Yes
Transistor Test: No
Back Light: Yes
Bar-Graph Display: Yes
Display Hold: Yes
Auto-Ranging: Yes
Inductive Coupler: No
PC Interface: Yes
Digits Height: 20mm
Auto Power Off: Yes
Low Battery Indicator: Yes
Batteries (Supplied): 6 x 1.5V AA
Hi-Impact Case: Yes
Size (L x W x D): 220 x 95 x 56mm
Weight: 700g
PC Compatibility: Windows 2000, XP, Vista, Win7
EAN: 5054511976939
