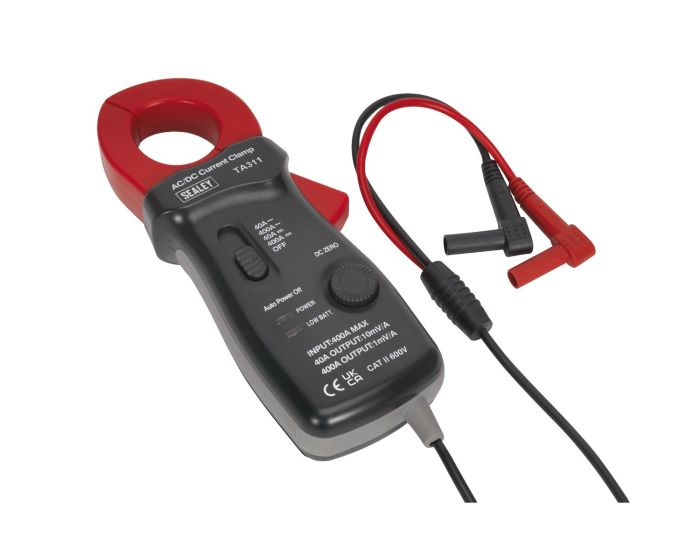

Sealey TA311 Current Clamp AC/DC 40A/400A 28mm
Stock Code:
TA311
Sealey TA311 Current Clamp AC/DC 40A/400A 28mm
Stock Code:
TA311
View All: Other Hand Tools
View All Sealey Products
£95.10
Excl. VAT
£79.25
Excl. VAT
Available - Delivery within 3-4 Working Days
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
Designed for use with a standard multimeter and measures current draw from vehicle components in situ. Suitable for measuring both AC and DC current, without breaking into the circuit. Fitted with 4mm banana connectors and supplied in storage pouch. Powered by 9V battery (supplied). Can also be used with an oscilloscope using a suitable BNC conversion adaptor.
Designed for use with a standard multimeter and measures current draw from vehicle components in situ.
Suitable for measuring both AC and DC current, without breaking into the circuit, with a 40A and 400A setting for accurate measurement.
Features a 28mm clamp ideal for testing wire bundles.
Fitted with 4mm banana connectors and supplied in storage pouch.
Powered by 9V battery (supplied).
Can also be used with an oscilloscope using a suitable BNC conversion adaptor.
Nett Weight: 0.36kg
TA311 Captured Conductor Size: 20mm maximum
Low Battery Indicator: LED red
Operating Temperature: 0C to 50C.
Storage Temperature: -15C to 50C.
Battery Type: 9V DC
Typical Battery Life: 80hrs (alkaline)
Weight: 240g
TA311 Dimensions (H x W x D): 175mm x 70mm x 38mm
Output Connection: Banana plugs (red & black)
40A (output 10mV/A): DC or rms AC for 200mV or 400mV range of the multimeter.
400A (output 1mV/A): DC or rms AC for 400mV range of the multimeter.
TA311 Captured Conductor Size: 20mm maximum
Low Battery Indicator: LED red
Operating Temperature: 0C to 50C.
Storage Temperature: -15C to 50C.
Battery Type: 9V DC
Typical Battery Life: 80hrs (alkaline)
Weight: 240g
TA311 Dimensions (H x W x D): 175mm x 70mm x 38mm
Output Connection: Banana plugs (red & black)
40A (output 10mV/A): DC or rms AC for 200mV or 400mV range of the multimeter.
400A (output 1mV/A): DC or rms AC for 400mV range of the multimeter.
EAN: 5051747779693
