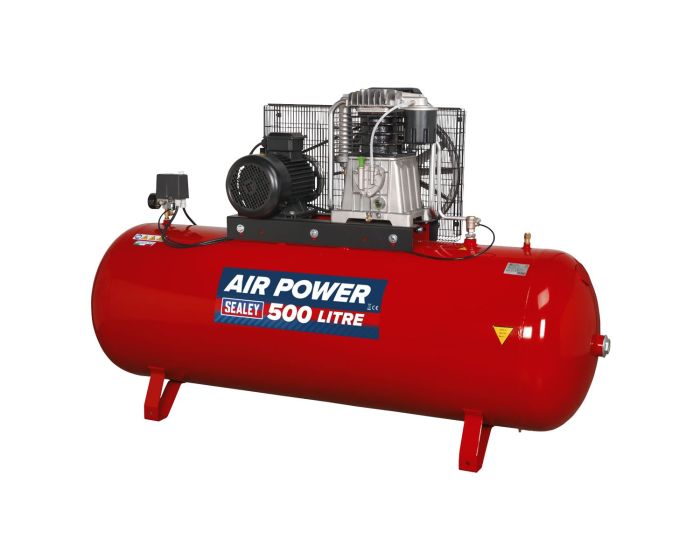

Sealey SAC55075B 500L Belt Drive Air Compressor with Cast Cylinders 7.5hp 3ph 2-Stage
Stock Code:
SAC55075B
Sealey SAC55075B 500L Belt Drive Air Compressor with Cast Cylinders 7.5hp 3ph 2-Stage
Stock Code:
SAC55075B
View All: Corded Air Compressors
View All Sealey Products
£3,442.59
Excl. VAT
£2,868.82
Excl. VAT
Available - Delivery within 3-4 Working Days
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
Heavy-duty 3-phase compressor suitable for the professional workshop. 2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase model. Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
Air Displacement: 29.3cfm(830L/min).
Maximum Free Air Delivery: 22.6cfm(640L/min).
Maximum Pressure: 145psi(10bar).
Heavy-duty 3-phase compressor suitable for the professional workshop.
2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase model.
Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.
Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Air Displacement cfm(L/min): 29.3(830)
Maximum Free Air Delivery cfm(L/min): 22.6(640)
Maximum Pressure: 145psi(10bar)
Minimum Rated Supply: 16A
Motor Output: 7.5hp
Nett Weight: 255kg
Oil Capacity: 1.57L
Outlet: 3/4"BSP Female Tap
Phase: 3ph
Receiver Capacity: 500L
Size (W x D x H): 2000 x 700 x 1230mm
Speed: 1280rpm
Supply: 415V/32A
Maximum Free Air Delivery cfm(L/min): 22.6(640)
Maximum Pressure: 145psi(10bar)
Minimum Rated Supply: 16A
Motor Output: 7.5hp
Nett Weight: 255kg
Oil Capacity: 1.57L
Outlet: 3/4"BSP Female Tap
Phase: 3ph
Receiver Capacity: 500L
Size (W x D x H): 2000 x 700 x 1230mm
Speed: 1280rpm
Supply: 415V/32A
EAN: 5051747982123
