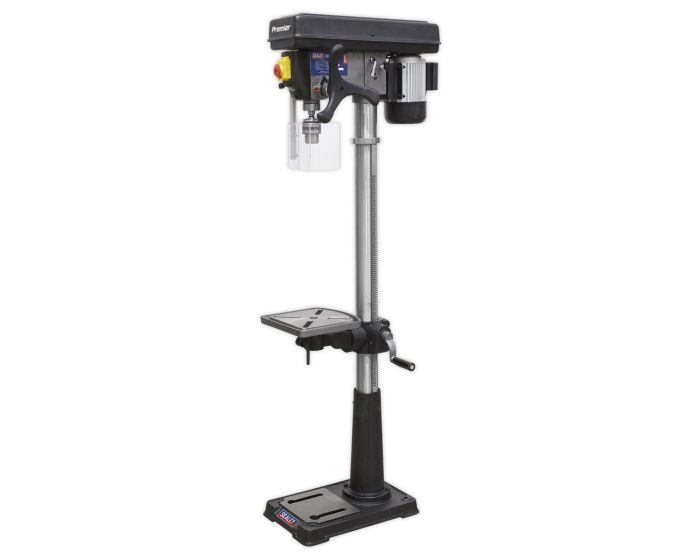

Sealey PDM170F Premier Bench Mounting Pillar Drill 16-Speed 370W 230V
Stock Code:
PDM170F
Sealey PDM170F Premier Bench Mounting Pillar Drill 16-Speed 370W 230V
Stock Code:
PDM170F
View All: Other Corded Tools
View All Sealey Products
£521.07
Excl. VAT
£434.22
Excl. VAT
Available - Delivery within 3-4 Working Days
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
One of a comprehensive range of Premier floor standing pillar drills for the professional workshop. Features heavy-duty aluminium-bodied motor for long and reliable performance. No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open. Supplied with an electrically inter-locked chuck guard. Large sized square table fitted with precision rack and pinion height adjustment.
One of a comprehensive range of Premier floor standing pillar drills for the professional workshop.
Features heavy-duty aluminium-bodied motor for long and reliable performance.
No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
Supplied with an electrically inter-locked chuck guard.
Large sized square table fitted with precision rack and pinion height adjustment.
16mm(5/8") Capacity chuck, MT2.
Height: 1610mm.
Spindle Centre to Column: 170mm.
Motor Power: 370W.
Column Diameter: 73mm.
Spindle Travel: 80mm.
Weight: 52kg.
3 Year guarantee*.
Base Size: 450 x 270mm
Collar Diameter: 55mm
Column Diameter: 73mm
Drilling Capacity (Chuck Size): 16mm
Integral Work Light: No
Maximum Distance Spindle to Base: 1255mm
Maximum Distance Spindle to Table: 770mm
Motor Power (Start): 370W(600W)
Nett Weight: 47kg
Number of Speeds: 16
Optional Accessories: PDM/KC - Keyless Pillar Drill Chuck 16mm
Overall Height: 1610mm
Speed Range: 190-3000rpm
Spindle Centre to Column: 170mm
Spindle Nose Taper: MT2
Spindle Travel: 80mm
Supply: 230V
Swing: 340mm
Working Base Surface Size: 205 x 200mm
Working Table Surface Size: 254 x 254mm
Collar Diameter: 55mm
Column Diameter: 73mm
Drilling Capacity (Chuck Size): 16mm
Integral Work Light: No
Maximum Distance Spindle to Base: 1255mm
Maximum Distance Spindle to Table: 770mm
Motor Power (Start): 370W(600W)
Nett Weight: 47kg
Number of Speeds: 16
Optional Accessories: PDM/KC - Keyless Pillar Drill Chuck 16mm
Overall Height: 1610mm
Speed Range: 190-3000rpm
Spindle Centre to Column: 170mm
Spindle Nose Taper: MT2
Spindle Travel: 80mm
Supply: 230V
Swing: 340mm
Working Base Surface Size: 205 x 200mm
Working Table Surface Size: 254 x 254mm
EAN: 5054511285451
