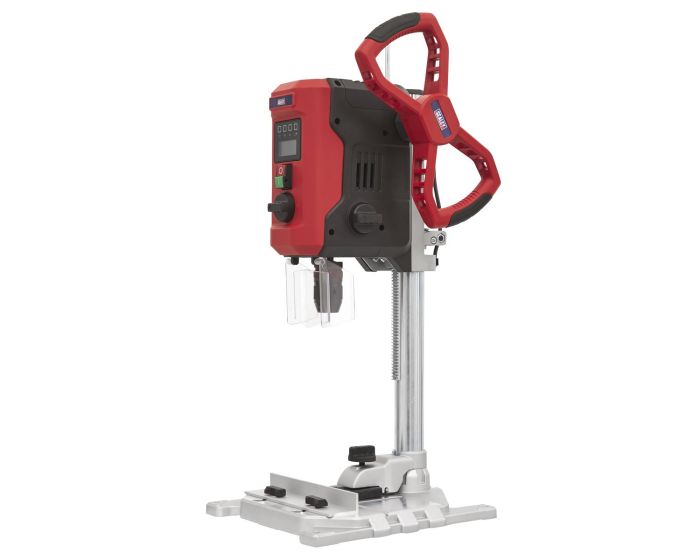

Sealey PDM10B Bench Mounting Pillar Drill with Digital Display & Laser Guide 720W
Stock Code:
PDM10B
Sealey PDM10B Bench Mounting Pillar Drill with Digital Display & Laser Guide 720W
Stock Code:
PDM10B
View All: Other Corded Tools
View All Sealey Products
£197.78
Excl. VAT
£164.82
Excl. VAT
Available - Delivery within 3-4 Working Days
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
Great workspace illumination and accuracy thanks to the integrated LED light and laser. Easy-to-read LCD display shows rpm as well as spindle travel for exact drilling depth. Parallel guide and vertical clamp on base. Superior control from two gears giving speed adjustment from 170 to 880rpm and 490 to 2600rpm. Convenient quick release chuck.
PRECISION - Good workspace illumination and accuracy thanks to the integrated LED light and laser.
CLARITY - Easy to read LCD display shows rpm as well as spindle travel for exact drilling depth (100mm stroke).
CONTROL - Two gears with variable speed adjustment from 170 to 880rpm and 490 to 2600rpm.
CONVENIENT - Quick release 1.5 to 13mm chuck.
STURDY - Wide (300 x 330mm) aluminium base gives increased stability and is corrosion-free.
EXACT - Parallel workpiece guide makes repeated drilling of large surfaces along edge more precise.
POSITIVE - Rubber grip on stylish handle design gives great control during repeated use.
INTERGRATED LASER - Ideal for easy and precise drilling.
INTERGRATED LED - Creates perfect illumination.
DIGITAL DISPLAY - For accurate drilling.
Base Size: 330mm x 300mm
Collar Diameter: 43mm
Column Diameter: 46mm
Drilling Capacity (Chuck Size): 13mm
Integral Work Light: Yes, Including Laser Guide.
Maximum Distance Spindle to Base: 280mm
Maximum Distance Spindle to Table: N/A
Motor Power (Start): 720W(900W)
Nett Weight: 10.2kg
Number of Speeds: 2 Variable Speed Range : First : 170-880/min. Second : 490-2600/min
Optional Accessories: N/A
Overall Height: 760mm
Speed Range: 170-880/min, 490-2600/min
Spindle Centre to Column: 125mm
Spindle Nose Taper: N/A
Spindle Travel: 100mm
Supply: 230V
Swing: 250mm
Working Table Surface Size: N/A
Collar Diameter: 43mm
Column Diameter: 46mm
Drilling Capacity (Chuck Size): 13mm
Integral Work Light: Yes, Including Laser Guide.
Maximum Distance Spindle to Base: 280mm
Maximum Distance Spindle to Table: N/A
Motor Power (Start): 720W(900W)
Nett Weight: 10.2kg
Number of Speeds: 2 Variable Speed Range : First : 170-880/min. Second : 490-2600/min
Optional Accessories: N/A
Overall Height: 760mm
Speed Range: 170-880/min, 490-2600/min
Spindle Centre to Column: 125mm
Spindle Nose Taper: N/A
Spindle Travel: 100mm
Supply: 230V
Swing: 250mm
Working Table Surface Size: N/A
EAN: 5054630276880
