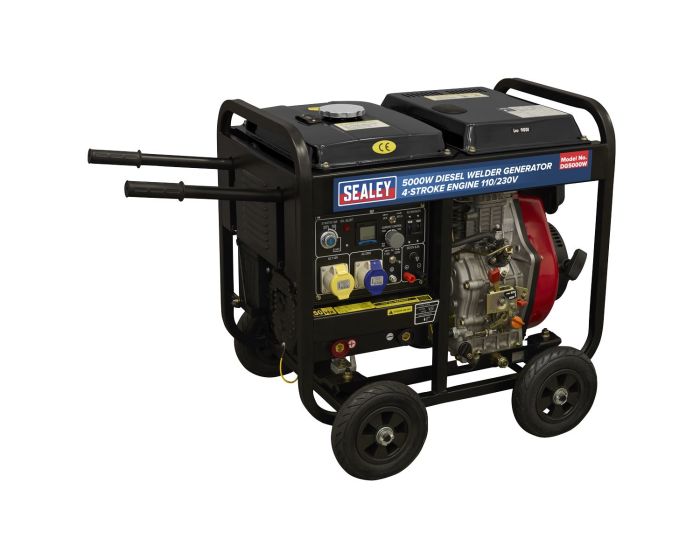

Sealey DG5000W 5000W Diesel Welder Generator 4-Stroke Engine 110/230V
Stock Code:
DG5000W
Sealey DG5000W 5000W Diesel Welder Generator 4-Stroke Engine 110/230V
Stock Code:
DG5000W
View All: Other Corded Tools
View All Sealey Products
£1,513.95
Excl. VAT
£1,261.62
Excl. VAT
Available - Delivery within 3-4 Working Days
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
Supplies both 110V and 230V AC for flexible power options on-site. Built-in electric welding capability with adjustable current ranges from 80180A, suitable for electrodes from 2.5-4mm. Driven by a 418cc single-cylinder, 4-stroke diesel engine delivering 5.0kW. Manual recoil start and key start function. 15L fuel tank allows extended operation without frequent refuelling. Rugged frame with two pull handles and four wheels for easy transportation around the worksite. Perfect for construction, agricultural, and industrial applications. Supplied with two Keys, 2.8m electrode holder and 2.8m earth clamp.
DUAL VOLTAGE OUTPUT Supplies both 110V and 230V AC for flexible power options on-site.
WELDER FUNCTION Built-in electric welding capability with adjustable current ranges from 80180A.
DIESEL ENGINE POWER Driven by a 418cc single-cylinder, 4-stroke diesel engine delivering 5.0kW.
RECOIL & KEY START Manual recoil start, and Key Start Function.
LARGE FUEL TANK 15L capacity allows extended operation without frequent refuelling.
WELDING CAPACITY Rated for 80180A welding current and suitable for electrodes from 2.5-4mm.
COMPACT & PORTABLE Rugged frame with two pull handles and four wheels for easy transportation around the worksite.
IDEAL FOR REMOTE WORK Perfect for construction, agricultural, and industrial applications.
SUPPLIED WITH Two Keys, 2.8m electrode holder and 2.8m earth clamp.
Continuous Power Rating: 4600W
Current Rating: 20A
Dimensions (W x D x H): 720 x 485 x 600mm
Fuel Tank: 15L
Fuel: Diesel
IP Rating: IP23
Maximum Power Rating: 5000W
Maximum Running Time: 12hrs
Motor Power: 5.7kw/3600rpm
Motor Type: 4-Stoke Diesel
Nett Weight: 120kg
Noise Rating: 97dB(A)
Oil Capacity: 1.65L
Output: 110/230V
Welding Current: 80-180A
Electrode Capacity : 1.6-4mm
Quality Class: A
Power Rating Category: COP
Performance Class: G1
Rated Power Factor: (COS ) 0.8 kW
Current Rating: 20A
Dimensions (W x D x H): 720 x 485 x 600mm
Fuel Tank: 15L
Fuel: Diesel
IP Rating: IP23
Maximum Power Rating: 5000W
Maximum Running Time: 12hrs
Motor Power: 5.7kw/3600rpm
Motor Type: 4-Stoke Diesel
Nett Weight: 120kg
Noise Rating: 97dB(A)
Oil Capacity: 1.65L
Output: 110/230V
Welding Current: 80-180A
Electrode Capacity : 1.6-4mm
Quality Class: A
Power Rating Category: COP
Performance Class: G1
Rated Power Factor: (COS ) 0.8 kW
EAN: 5054630662492
