Saniflo Sanicubic 2XL 6105 Heavy Duty Pump Macerator Lifting Station WC Basin
Stock Code:
6105
Saniflo Sanicubic 2XL 6105 Heavy Duty Pump Macerator Lifting Station WC Basin
Stock Code:
6105
View All: Macerators and Pumps
View All Saniflo Products
£2,985.95
Excl. VAT
£2,488.29
Excl. VAT
Available - Delivery within 2-3 Working Days
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews

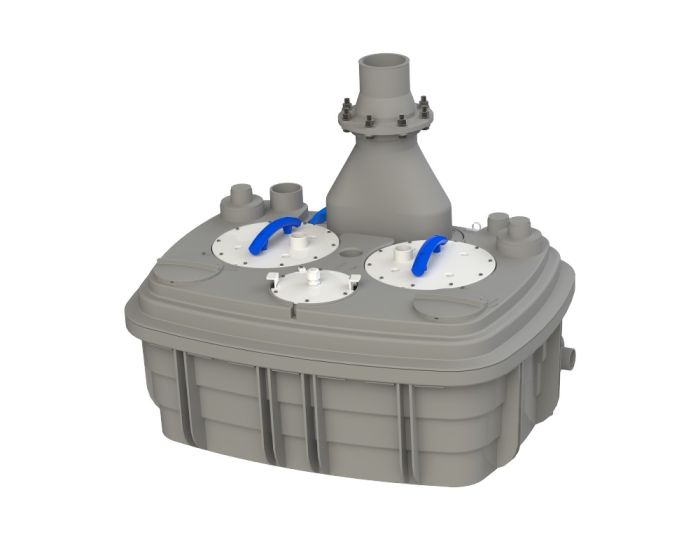

The Sanicubic 2 XL is our largest lifting station for commercial use handling up to 40m³/hour of waste water via two 2kW pumps. It is easy to install as it stands on the floor and does not need to be positioned below ground.
It can take waste from toilets, basins, bath, shower, bidet, washing machine, dishwasher and sink. It is easy to install as there is no need to excavate as it does not need to be positioned below ground.
Ideal for large volume commercial situations
Large bore vortex pump which can pump away waste without the need to macerate
Large 120 litre tank volume
Pumps up to 10m vertically through 80m pipework, or up to 6m vertically through 100m pipework, can pump up to 110m horizontally
Ideal for large volume commercial situations
Large bore vortex pump which can pump away waste without the need to macerate
Large 120 litre tank volume
Pumps up to 10m vertically through 80m pipework, or up to 6m vertically through 100m pipework, can pump up to 110m horizontally
The Sanicubic 2 XL has a large bore vortex pump which can pump waste away without the need to macerate.
The 2 motors are easily removable for servicing and maintenance and it has a large 120 litre tank.
It has 2 alarms for ultimate safety – both are hard-wired.
It has a working temperature of 35ºC, however it will handle temperatures up to 70ºC for short periods.
The Sanicubic 2 XL has four inlets that can take up to 110 mm and an additional inlet that can take up to 50 mm, centre height of inlets is 180 mm and it discharges through 80 mm pipework for maximum vertical lift 10 metres, 100 mm pipework maximum vertical lift of 6 metres.
It has volt free contact for connection to a Building Management System.
Weight 55 kg
Inlet diameter • 1 inlet DN 40/50 (Ø ext. 40/50 mm) • 4 inlets DN 40/50/100/110 (Ø ext. 40/50/100/110 mm)
Motor power SANICUBIC® 2 XL (single-phase): 2 x 2000 W; SANICUBIC 2 XL (three-phase): 2 x 3500 W
Supply voltage SANICUBIC® 2 XL (single-phase): 220-240 V / 50 Hz; SANICUBIC 2 XL (three-phase): 230-400V / 50Hz
Electrical class 1
IP rating IP68
Maximum flow rate SANICUBIC® 2 XL monophasée : 40 m3/h; SANICUBIC® 2 XL triphasée : 55 m3/h
Maximum current consumption SANICUBIC® 2 XL (single-phase): 16 A; SANICUBIC 2 XL (three-phase): 12 A
Maximum incoming water temperature 70 °C intermittently (max 5 min)
Discharge pipe diameter DN100 (Ø ext. 110 mm)
Control box IP rating IPX4
Weight (including accessories) SANICUBIC® 2 XL (single-phase): 59 kg; SANICUBIC 2 XL (three-phase): 60 kg
Maximum recommended depth SANICUBIC® 2 XL (single-phase): 6 m (DN100) and 10 m (DN80); SANICUBIC 2 XL (three-phase): 11 m (DN100) 14 m (DN80)
Tank volume 120 L
Vent diameter 75 mm
Maximum depth (Q eq 0 L/min) SANICUBIC® 2 XL (single-phase): 13 m; SANICUBIC 2 XL (three-phase): 17 m
ON/OFF level 166/100 mm
Alarm level 240 mm
Clearance 50 mm
Possible connections Connection options: blackwater from several toilets, greywater from bathroom, kitchen, laundry
Inlet diameter • 1 inlet DN 40/50 (Ø ext. 40/50 mm) • 4 inlets DN 40/50/100/110 (Ø ext. 40/50/100/110 mm)
Motor power SANICUBIC® 2 XL (single-phase): 2 x 2000 W; SANICUBIC 2 XL (three-phase): 2 x 3500 W
Supply voltage SANICUBIC® 2 XL (single-phase): 220-240 V / 50 Hz; SANICUBIC 2 XL (three-phase): 230-400V / 50Hz
Electrical class 1
IP rating IP68
Maximum flow rate SANICUBIC® 2 XL monophasée : 40 m3/h; SANICUBIC® 2 XL triphasée : 55 m3/h
Maximum current consumption SANICUBIC® 2 XL (single-phase): 16 A; SANICUBIC 2 XL (three-phase): 12 A
Maximum incoming water temperature 70 °C intermittently (max 5 min)
Discharge pipe diameter DN100 (Ø ext. 110 mm)
Control box IP rating IPX4
Weight (including accessories) SANICUBIC® 2 XL (single-phase): 59 kg; SANICUBIC 2 XL (three-phase): 60 kg
Maximum recommended depth SANICUBIC® 2 XL (single-phase): 6 m (DN100) and 10 m (DN80); SANICUBIC 2 XL (three-phase): 11 m (DN100) 14 m (DN80)
Tank volume 120 L
Vent diameter 75 mm
Maximum depth (Q eq 0 L/min) SANICUBIC® 2 XL (single-phase): 13 m; SANICUBIC 2 XL (three-phase): 17 m
ON/OFF level 166/100 mm
Alarm level 240 mm
Clearance 50 mm
Possible connections Connection options: blackwater from several toilets, greywater from bathroom, kitchen, laundry
EAN: 3308815063140
