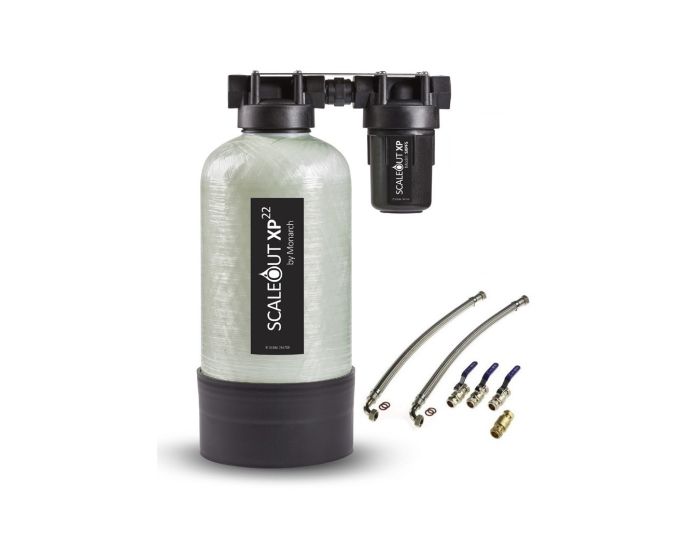

Monarch Scaleout SXP15+ Plus Water Softener Alternative 15mm Hoses + Install Kit

Stock Code:

£611.53 £509.61
Add to Wish List
Out of Stock - This Product is Currently Unavailable


Scaleout XP, Monarch s next best thing to a water softener introduces its new advanced technology which is the only limescale control device to permanently remove and prevent the damage caused by hard water.

Whilst reducing the impact of scale it is now more powerful in its performance and protection to remove existing scale and prevent new scale forming, is compact and easily installed, uses no electricity and is the only scale inhibitor giving permanent treatment.

With Monarch s Scaleout XP the quality of the drinking water is not affected. During the limescale prevention process, no minerals or magnesium are removed. It is safe to drink all day, every day.

Scaleout XP is Monarch s ultimate in permanent scale protection for the whole house and its appliances.

The Monarch Scaleout XP offers extensive lime scale prevention 24 hours a day, 7 days a week. It is the most significant advancement in scale prevention in over 100 years.

Its revolutionary process provides quick, efficient and cost effective protection from serious limescale damages.

The quality of the drinking water is not affected. During the limescale prevention process, no minerals or magnesium are removed and no sodium is added to the water. It is safe to drink all day, every day - meaning you do not require a drinking water tap unlike conventional salt softeners.
The Monarch Scaleout XP SXP15+ replaces the Scaleout SC2, S15T and S15C.

What are the Main Features of the Monarch Scaleout XP
- Totally drinkable
- No electricity required
- Low maintenance
- Reduces your carbon footprint
- No repair costs due to scale damage
- Targets existing scale
- Prevents new scale forming
- Easy to install full install kit provided
- Compact from only 525mm high
- pH stability suitable for all metals
- Improved texture of the water
- Can help reduce your detergent / washing powder bills*
- Food grade materials throughout
- Suitable for whole house protection

With pH stability (unique to Monarch Scaleout), Scaleout water is ideal for all types of central heating systems including boilers with stainless steel or aluminium heat exchangers.
What are The Main Differences Between the Monarch Scaleout XP and a Typical Water Softener
Comparing the Monarch Scaleout with a Monarch Water Softener (e.g Monarch Midi).

If both ranges of Monarch Water Softener were awarded a star rating for their performances, a Monarch salt based softener would enjoy a 5 star rating, as they produce every possible soft water benefit.

However, Monarch recognises that there is a sector of the public who are simply looking for protection against the damage caused by hard water scale. The Monarch Scaleout range is perfect for those who are seeking an alternative solution to hard water problems outside of a conventional salt based water softener.
What makes the Monarch Scaleout XP different
Other products such as magnets, electrolytics, wrap-arounds, sacrificial anodes, multi-core solutions etc (the list is almost endless), can only offer a temporary suspension of scale formation. In many cases the effects these products bring last only a couple of hours, therefore any stored water such as that within a tank, coil, etc will automatically revert back to scale causing, harmful water overnight.

Monarch's Scaleout XP is the only product that gives a permanent suspension of scale creation. Even if they go on holiday or indeed travelling for 6 months, Scaleout water will not revert back to its original state, giving your customers complete peace of mind.

Scaleout XP also targets existing scale, returning their boiler and appliances to maximum efficiency and lower running costs from the moment it's installed.
What are the Benefits of the Monarch Scaleout XP
1) Lower Costs

The average hard water home can spend between 200 and 240 a year to overcome the effects of hard water. The harder the water, the more cleaning agents and laundry detergents are required. Appliances life expectancy is significantly reduced. The life expectancy of a boilers heat exchanger is reduced by up to 80% with a hard water supply!

A Monarch Scaleout will immediately target your existing scale, returning your boiler and appliances to maximum efficiency and lower running costs. Additionally, unnecessary scale related costs for the repair and maintenance of appliances can be prevented. Remember, with a scaled boiler, you have to heat the scale before you can heat the water. Just 2mm of scale will increase your hot water bills by 12%. 3mm and it rises to nearly 25%!

2) Protected Appliances

Shining plates, bowls etc. - a dream or reality Times when your washing machine / dishwashers' performance is affected by hard water lie in the past. In future, with Scaleout water, your plates, bowls etc. will no longer have unsightly hard scale residue.

3) The Perfect Flavour Carrier

A Monarch Scaleout gives you the ideal water for home and industry, and is perfectly suited for the production of hot and cold drinks too.
Valuable minerals including magnesium (a health giving mineral and powerful flavour carrier) are retained in the water, to give you the perfect cuppa at any time of day.

4) Peace of Mind

You can have improved Peace of Mind knowingthat with the Monarch Scaleout you have ...

Lower heating bills
Lower household bills
An efficient boiler
Protected appliances
Drinking water rich in vital minerals
Choosing the Correct Monarch Scaleout XP for Your Property

Alternatively we also sell Water Hardness Test Strips which can also be used. Most of the UK have a hardness below 500PPM and will require the "Non Plus" Monarch Scaleout. Areas of Norfolk, Suffolk and North Essex have varied water hardness so the Scaleout Plus may be needed in certain areas where hardness is over 500PPM.
Unlike conventional Water Softeners the Monarch Scaleout unit is selected on 3 main principles:
1) Your Type of Plumbing System: Standard Gravity Fed Systems (tank in loft), Combi Boiler, Unvented, Megaflow and Pressurised Systems.

2) Maximum Flow Rate Required (often governed by your plumbing system).

3) The Hardness of the water in your area. If you are not sure what that is you can find this out by using one of our Hardness Test Strips or by contacting your water board.

You can see it clearly using Monarch's own illustrated table guide below, which outlines your requirements alongside which Scaleout would best suit you.

ApplicationsMax Rec Flow (LPM)Rec Model up to 500ppmStandard Connections1" Upgrade AvailableDimensions (Dia x Height x Width)Post Filter Reference
15mm Supplies -Combi Boiler / Gravity Fed Systems30SXP153/4" MBSP-195 X 525 X 450SXPPF5
22mm Supplies - Unvented / Pressurised / Megaflo45SXP223/4" MBSP-220 X 525 X 450SXPPF5
28mm Supplies60SXP281" MBSPStandard220 x 660 x 450SXPPF10
Light Commercial75SXPLC3/4" MBSPYes270 x 1110 x 480SXPPF10

Pressure drops at maximum flow rates: SXP15 at 0.3 bar. SXP22/28 at 0.4 bar. SXPLX at 0.9 bar.
For Extreme Hardness over 500ppm please choose the "PLUS" model
So How Does the Scaleout XP Work
Water contains two different types of hardness ions, but only one causes scale. This is called a calcium ion. The scale causing calcium ion (dissolved limescale) passes through a bed of food grade ceramic beads within the unit, and is transformed into a non-scale causing calcium crystal.

The crystals attach themselves to the beads. When they reach a certain size, they release themselves from the beads back into the water, where they adhere themselves to the Post Filter. As a result of this physical change (permanent), scale no longer has the possibility of forming on surfaces including heating coils and elements, fittings, or the inside of pipes etc. The water becomes both non-scale forming and also descaling, offering many benefits to the homeowner in its performance.

Additionally, Monarchs unique CBT ensures pH stability and corrosion control in all types of water. It is the only one available to give this guarantee.

The beads have a life expectancy of 3 to 5 years (3 years guaranteed), as determined by the cleanliness of the incoming water supply (not water hardness). Replacement packs can be supplied for easy DIY changing, or alternatively Monarch can offer a full exchange service.

All models recommended for use on a potable water supply only. All units incorporate a Post Filter to collect the calcium crystals. The Post Filter has a low cost internal cartridge that is to be changed annually. It can be connected directly to the unit (as pictured) or be remote mounted if preferred. A remote mounting kit is included with every unit. The SC1 does not include a post filter a standard.

This post filter can be fitted rigid next to the unit as shown above or via a short chrome braided hose provided as below.


Min - Max Operating Pressure: 1.5 - 5bar
Temperature: 4 - 50C
pH: 6.5 - 8.5
Max Iron Content: 0.3 mg/l
Max Manganese Content: 0/05 mg/l
Max Copper Content: 0.3 mg/l
Oil and Phosphates Free
H2S Free

Approvals and Compliances

NSF/ANSI - 61: Drinking Water System Components
BS6920 Material Compatibility
ACS Certified

The Monarch Scaleout SXP15+ is supplied with 15mm installation valves with steel braided maxflow hoses. This model is suitable for gravity fed systems (tank in the loft) and properties with a combination boiler. This model is suitable where the water hardness is more than 500ppm.
EAN: 5055995536985

Tens of thousands of homes and businesses across the UK enjoy the benefit of a Monarch water softener.

Monarch Water Softeners have proven performance, reliability and efficiency supported by a 7-year guarantee* ensuring that the Monarch water softener is the right choice for your home.

Monarch Water Guarantee Details - for any faults with your Monarch Water Softener in its guarantee period call 01986 784759

Monarch Ultimate Series Water Softeners - Monarch Midi, Monarch Master, Monarch Mini Aqua

*7-Year parts and 2 year labour guarantee

Monarch Plumbsoft Solo and Solo Ultra - Non Electric Water Softener

*7-Year parts and 2 year labour guarantee

Monarch Scaleout

3 Year Warranty

Inline / Triflo Taps - 1 year guarantee

If your particular model isn't listed above, your product is covered by a 1 year warranty.

For further information on the warranties on these products see the Monarch Water Softener website
