Monarch Micropure Aquapro AP50 Filter Refill Cartridge 12 Month Liff NSK13 Rp
Stock Code:
MICROPURE
View All: Water Filter Taps & Cartridges
View All Monarch Water Products
£22.11
£18.42
Out of Stock - This Product is Currently Unavailable
Description

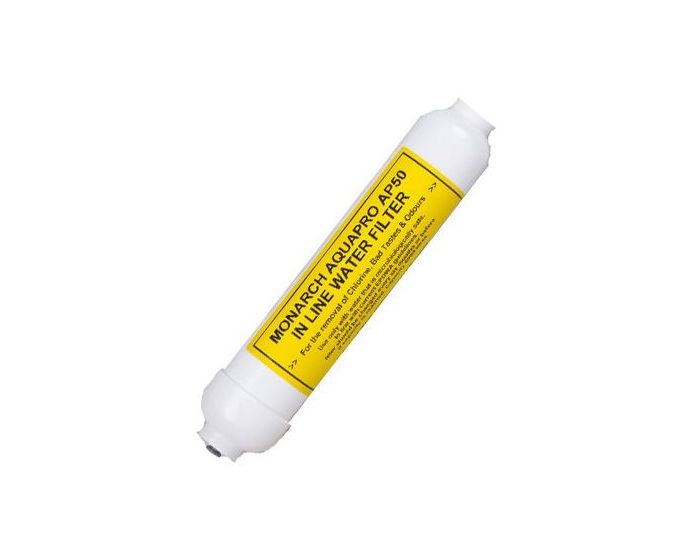

This is the Monarch Micropure Aquapro AP50 Water Filter.
It replaces Monarch's own Micropure tap, AP50 and Liff's water conditioning system N-RSK cartridge NSK13
It replaces Monarch's own Micropure tap, AP50 and Liff's water conditioning system N-RSK cartridge NSK13
How to install The Monarch AP50
Firstly turn the water supply off by turning the red circled 'T' valve clockwise, until it stops, (as shown in picture 3).
Support this valve by holding it at the back whilst turning it clockwise.
Then open the tap to vent it and to remove any water from it.
Carry out the cartridge change, leave the tap vented and slowly turn back on the water by turning the 'T' valve anti-clockwise until it stops.
Then open the tap to vent it and to remove any water from it.
Carry out the cartridge change, leave the tap vented and slowly turn back on the water by turning the 'T' valve anti-clockwise until it stops.
Importantly, turn a little clockwise after this to prevent the valve sticking in the future.
Full Instructions
1. Locate the tap around the back or side edge of the sink ensuring the tap spout overhangs the sink bowl and you have access to the thread of the tap for when tightening in position. If possible, dot punch the chosen position prior to any drilling. Drill a small guide hole in the chosen position prior to a ½” hole and install and secure tap.
2. Using the screw provided, fix the bracket to the sidewall of the unit. The diagram shows two positions, it is recommended to fit the bracket in the middle whenever possible.
3. Ensure the piercing lance in the middle of the Saddle Valve is not protruding. If it is, turn handle anticlockwise until it does not protrude the rubber seal. Failure to do this will result in scratching of the copper pipe and possible cause a leak through the rubber seal. Locate and tighten the Saddle Valve onto the pipework using the spacer provided, between the brass threaded bolt and the copper pipe. Do not turn the ‘T’ bar handle until the installation is complete.
4. Cut both the red and blue tubes to length allowing significant spare, and camphor both ends to remove sharp edges.
2. Using the screw provided, fix the bracket to the sidewall of the unit. The diagram shows two positions, it is recommended to fit the bracket in the middle whenever possible.
3. Ensure the piercing lance in the middle of the Saddle Valve is not protruding. If it is, turn handle anticlockwise until it does not protrude the rubber seal. Failure to do this will result in scratching of the copper pipe and possible cause a leak through the rubber seal. Locate and tighten the Saddle Valve onto the pipework using the spacer provided, between the brass threaded bolt and the copper pipe. Do not turn the ‘T’ bar handle until the installation is complete.
4. Cut both the red and blue tubes to length allowing significant spare, and camphor both ends to remove sharp edges.
5. Fix the filter into the bracket.
6. Lubricate the tubes with Vaseline and push the tubes into the relevant connections approx 2cm until they stop – see flow arrow on filter. Red tube equals inlet supply from mains and Blue tube equals from filter to tap.
7. Open the tap by ‘clicking’ the handle into the upright position.
8. Turn ‘T’ bar handle on the Saddle Valve clockwise until it stops. Then turn anti-clockwise until it is fully open, turn back again clockwise for 2 full turns. The additional 2 turns clockwise, prevent it sticking in the open position. Water will now begin to flow through the filter. Low flow means either a. You have low pressure, or b. The Saddle Valve has not pierced the pipe properly. If so repeat the procedure.
9. Before use, flush the filter for approx 20 litres and/or until the water runs clear.
10. Close tap and check for leaks
11. For best performance run water until ‘chill to touch’.
6. Lubricate the tubes with Vaseline and push the tubes into the relevant connections approx 2cm until they stop – see flow arrow on filter. Red tube equals inlet supply from mains and Blue tube equals from filter to tap.
7. Open the tap by ‘clicking’ the handle into the upright position.
8. Turn ‘T’ bar handle on the Saddle Valve clockwise until it stops. Then turn anti-clockwise until it is fully open, turn back again clockwise for 2 full turns. The additional 2 turns clockwise, prevent it sticking in the open position. Water will now begin to flow through the filter. Low flow means either a. You have low pressure, or b. The Saddle Valve has not pierced the pipe properly. If so repeat the procedure.
9. Before use, flush the filter for approx 20 litres and/or until the water runs clear.
10. Close tap and check for leaks
11. For best performance run water until ‘chill to touch’.
Specifications
What are the advantages of using the Monarch Filter
- Push fit fitting means no thread tape. Just push the pipe into the cartridge.
- Lasts longer: Normal N-SK13's will last 6 months, the Micropure is a higher grade filter that lasts a whole year!
- British made product, we have a close relationship with monarch who are based in Suffolk, they are approachable unlike some manufacturers.
We have sold lots of these already in store and on the Internet. And people who have used the new cartridge have been more than impressed.
- Push fit fitting means no thread tape. Just push the pipe into the cartridge.
- Lasts longer: Normal N-SK13's will last 6 months, the Micropure is a higher grade filter that lasts a whole year!
- British made product, we have a close relationship with monarch who are based in Suffolk, they are approachable unlike some manufacturers.
We have sold lots of these already in store and on the Internet. And people who have used the new cartridge have been more than impressed.
EAN: 5060134170197
Tens of thousands of homes and businesses across the UK enjoy the benefit of a Monarch water softener.
Monarch Water Softeners have proven performance, reliability and efficiency supported by a 7-year guarantee* ensuring that the Monarch water softener is the right choice for your home.
Monarch Water Guarantee Details - for any faults with your Monarch Water Softener in its guarantee period call 01986 784759
Monarch Ultimate Series Water Softeners - Monarch Midi, Monarch Master, Monarch Mini Aqua
*7-Year parts and 2 year labour guarantee
Monarch Plumbsoft Solo and Solo Ultra - Non Electric Water Softener
*7-Year parts and 2 year labour guarantee
Monarch Scaleout
3 Year Warranty
Inline / Triflo Taps - 1 year guarantee
If your particular model isn't listed above, your product is covered by a 1 year warranty.
For further information on the warranties on these products see the Monarch Water Softener website
