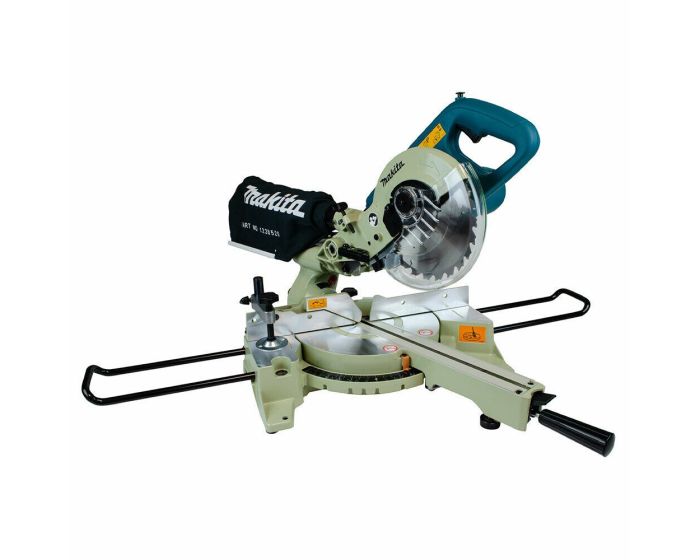

Makita LS0714 Chop Saw 190mm Slide Compound Mitre Saw 240V Dust Bag Blade
Stock Code:
LS0714 240
Makita LS0714 Chop Saw 190mm Slide Compound Mitre Saw 240V Dust Bag Blade
Stock Code:
LS0714 240
View All: Corded Mitre Saws
View All Makita Products
View All: Makita Sale
£267.99
Excl. VAT
£223.32
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
New slide compound saw model LS0714 has been developed to improve cost-effectiveness by removing electronic circuit for soft start & constant speed from model LS0713. The primary use is for making/modifying interior decorations in apartment building. Model LS0714's compact design and light weight are convenient to carry to workplace.
User Benefits:
Double Insulation
Built-in dust collection system
Bevel cutting Left 45 degrees, right 5 degrees.
Includes Blade
Max mitre range: 57 to 47
Max bevel range: 45 to -5
Max mitre cut at 90 : 52x300mm
Max mitre cut at 45 : 52x212mm
Blade Diameter: 190mm
Bore Diameter: 20/30mm
No Load Speed: 6 000rpm
Input wattage: 1 010w
Net Weight: 12.6kg
Max bevel range: 45 to -5
Max mitre cut at 90 : 52x300mm
Max mitre cut at 45 : 52x212mm
Blade Diameter: 190mm
Bore Diameter: 20/30mm
No Load Speed: 6 000rpm
Input wattage: 1 010w
Net Weight: 12.6kg
Makita LS0714 240V 190mm Mitre Saw Cutting Capacities:
Bevel cutting Left 45 degrees right 5 degrees.
Mitre cuts
0-45 left
0-57 right
Cross Cut
52mm x 300mm
60mm x 265mm
Mitre Cut
Left 52mm x 212mm
57deg right 52mm x 163mm
45deg left 60mm x 185mm
57deg right 60mm x 145mm
Bevel Cut
45deg left 40mm x 300mm
5deg right 40mm x 300mm
45deg left 45mm x 265mm
Compound Cut
45deg left & right 40mm x 212mm
45deg left & right 45mm x 185mm
Bore (B): 20 mm
Diameter (D): 190 mm
Kerf (K): 2.2 mm
Rake (R): 5
Thickness (T): 1.6 mm
Pack Quantity: 1
Tooth Count: 24
Material Type: Wood
Machine Type: Mitre Saw
Blade ID: MSC19024E
EAN: 0088381057707
