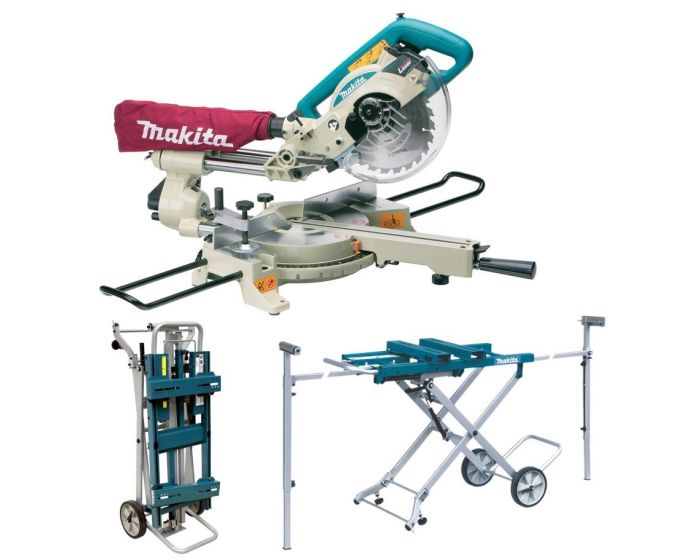

Makita LS0714 7.5" 190mm Slide Compound Mitre Saw 110v + Universal Leg Stand
Stock Code:
LS0714_DEAWST05_110
Makita LS0714 7.5" 190mm Slide Compound Mitre Saw 110v + Universal Leg Stand
Stock Code:
LS0714_DEAWST05_110
View All: Corded Mitre Saws
View All Makita Products
£446.49
Excl. VAT
£372.07
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
New slide compound saw model LS0714 has been developed to improve cost-effectiveness by removing electronic circuit for soft start & constant speed from model LS0713. The primary use is for making/modifying interior decorations in apartment building. Model LS0714's compact design and light weight are convenient to carry to workplace.
This saw also includes the Makita universal mitre saw stand
User Benefits:
Double Insulation
Built-in dust collection system
Bevel cutting Left 45 degrees, right 5 degrees.
The Makita DEAWST05 universal mitre saw stand is pre drilled to accept most Makita mitre saws but can also be easily adjusted for other makes. It has 2 adjustable working heights of 550mm & 800mm plus roller supports both sides spanning 2.7m. The one touch system for lifting and folding make it a breeze to set up and 2 heavy duty wheels mean the stand can be moved and stored without excessive effort. At 30kg in weight it provides easy manouvreability and sturdiness together.
Makita LS0714 240V 190mm Mitre Saw Specifications
Max mitre range: 57 to 47
Max bevel range: 45 to -5
Max mitre cut at 90 : 52x300mm
Max mitre cut at 45 : 52x212mm
Blade Diameter: 190mm
Bore Diameter: 20/30mm
No Load Speed: 6 000rpm
Input wattage: 1 010w
Net Weight: 12.6kg
Makita LS0714 240V 190mm Mitre Saw Cutting Capacities:
Bevel cutting Left 45 degrees right 5 degrees.
Mitre cuts
0-45 left
0-57 right
Cross Cut
52mm x 300mm
60mm x 265mm
Mitre Cut
Left 52mm x 212mm
57deg right 52mm x 163mm
45deg left 60mm x 185mm
57deg right 60mm x 145mm
Bevel Cut
45deg left 40mm x 300mm
5deg right 40mm x 300mm
45deg left 45mm x 265mm
Compound Cut
45deg left & right 40mm x 212mm
45deg left & right 45mm x 185mm
2 working Heights 55cm / 80cm
Side Adjustable extensions
Weight: 30kg
Folds flat for easy storage and transport without disassembling the machine.
EAN: 5055995508869
