Makita DLX3196JX1 18v Brushless Combi SDS Drill Grinder LXT DHR243 DGA504 DHP484
Stock Code:
DLX3196JX1-KIT
Makita DLX3196JX1 18v Brushless Combi SDS Drill Grinder LXT DHR243 DGA504 DHP484
Stock Code:
DLX3196JX1-KIT
View All: Cordless Tool Kits
View All Makita Products
£558.99
Excl. VAT
£465.82
Excl. VAT
In stock - FREE STANDARD DELIVERY to most UK postcodes - Next Day Delivery Available
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews

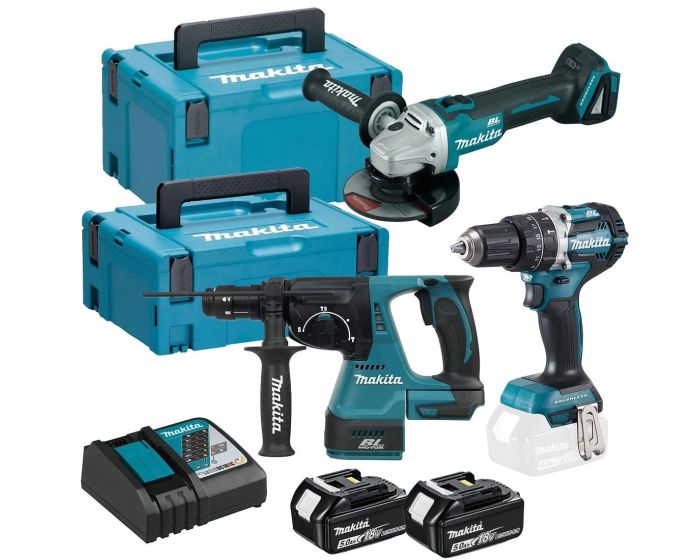

The Makita DLX3196JX1 18v 3 Piece Brushless Rotary Hammer Drill and Grinder set provides you a classic pair of tools for professional or DIY work.
Kit Contents
1x DGA504Z Brushless Grinder
1x DHR243Z Brushless Rotary Hammer Drill
Kit Contents
1x DGA504Z Brushless Grinder
1x DHR243Z Brushless Rotary Hammer Drill
1x DHP484Z Combi Drill
1x DC18RC Charger
2x BL1850B 18v 5.0Ah Batteries
2x Makpac Case
2x BL1850B 18v 5.0Ah Batteries
2x Makpac Case
DHR243 Brushless Rotary Hammer Drill
The DHR243 includes a Quick Change Chuck
Able to drill in concrete as fast or faster than 24V Cordless Combination Hammer model BHR200.
One touch slide chuck for SDS-plus bit.
Easy-to-grip handle ergonomically designed to: give maximum power thrust. provide a sure and comfortable grip in any operation; overhead application, drilling with palm-up or palm-down grip.
3 mode operation
Rotation + Hammering
Hammering only
Rotation only
The tool body is separated into the upper and lower housings at the foot of handle portion where the houses are jointed with vibration absorbing cushion rubbers.
Higher productivity than model BHR202 achieved by using efficient Brushless DC motor to reduce energy loss by 30%
Unique rubber joint construction suppresses the transmission of vibration to battery terminals, minimizing battery failures such as terminal breakage or poor electrical contact.
Able to drill in concrete as fast or faster than 24V Cordless Combination Hammer model BHR200.
One touch slide chuck for SDS-plus bit.
Easy-to-grip handle ergonomically designed to: give maximum power thrust. provide a sure and comfortable grip in any operation; overhead application, drilling with palm-up or palm-down grip.
3 mode operation
Rotation + Hammering
Hammering only
Rotation only
The tool body is separated into the upper and lower housings at the foot of handle portion where the houses are jointed with vibration absorbing cushion rubbers.
Higher productivity than model BHR202 achieved by using efficient Brushless DC motor to reduce energy loss by 30%
Unique rubber joint construction suppresses the transmission of vibration to battery terminals, minimizing battery failures such as terminal breakage or poor electrical contact.
Makita DGA504Z 18v LXT BL 125mm Angle Grinder 125mm.
Cordless angle grinders powered by 18V Li-ion battery, and equipped with highly enhanced Brushless DC motor. A built-in controller changes the cutting speed automatically according to load condition, enabling users to obtain high speed rotation on light duty application/ high torque on heavy duty application.
Automatic Speed Control: Automatically changes the cutting
speed according to load condition for optimum operation
High power motor
Anti-restart function.
Soft start feature.
Battery fuel gauge
Rubberised soft grip.
Electronic current limiter for overload protection.
Slide switch conveniently located for one hand operation.
Makita DHP484 Cordless Hammer Driver Drill
Is powered by 18V Li-ion battery. Featuring the Makita Brushless motor, precision engineered to be up to 50% more efficient than a comparative model. Without brushes in place to apply friction a Brushless motor can produce a greater measure of torque per weight. With more torque at your disposal less power is required for day to day use, adding to the motors efficiency and extending the products overall lifetime as maintenance becomes less of an issue.
The DHP484 has been developed to succeed model DHP480.
Features and Benefits:
Brushless motor
Electric brake
2 mechanical gears.
Variable speed control by trigger
Forward/reverse rotation
LED job light
Compact Overall Length of 182mm
Keyless Chuck
Aluminium Gear Housing
All metal gear construction
Ergonomic soft grip
Belt clip
The DHP484 has been developed to succeed model DHP480.
Features and Benefits:
Brushless motor
Electric brake
2 mechanical gears.
Variable speed control by trigger
Forward/reverse rotation
LED job light
Compact Overall Length of 182mm
Keyless Chuck
Aluminium Gear Housing
All metal gear construction
Ergonomic soft grip
Belt clip
DHR243 Brushless Rotary Hammer Drill
Battery Type Lithium-Ion
Single Impact Energy 2.4 J
Charging Time 22 min
Battery Quantity (3.0 Ah) 2
Capacity in Concrete 24 mm
Body only machine 1
No Load Speed 0 - 950 rpm
Capacity in Steel 13 mm
Capacity in Wood 27 mm
Blows per minute 0 - 4700 bpm
Voltage 18 v
Net weight 3.3 kg
Makita DGA504Z 18v LXT BL 125mm Angle Grinder 125mm.
Battery Type Lithium-ion
Body only machine 1
Voltage 18 v
Bore Diameter 22.23 mm
Max Wheel Thickness 6 mm
Noise sound pressure 79 dB(A)
Noise K factor 3 dB(A)
Max Wheel Diameter 125 mm
No Load Speed 8,500 rpm
Vibration K factor 1.5 m/sec
Vibration: Surface Grinding with Anti-Vibration Side Grip 6.0 m/sec
Vibration: Surface Grinding 6.5 m/sec
Net weight 2.5 kg
Makita DHP484 Cordless Hammer Driver Drill
Voltage - 18 v
Capacity in Steel - 13 mm
Capacity in Wood - 38 mm
Chuck Capacity - 1.5 - 13 mm
Capacity in Masonry - 13 mm
Blows per Minute (Hi) - ipm - 0 - 30,000 ipm
Blows per Minute (Lo) - ipm - 0 - 7,500 ipm
Noise sound pressure - 88 dB(A)
Noise sound power - 99 dB(A)
Noise K factor - 3 dB(A)
No Load Speed (Hi) - 0 - 2,000 rpm
No Load Speed (Lo) - 0 - 500 rpm
Torque Settings - 21 + drill
Max. Fastening Torque (Soft Joint) - 30 Nm
Max. Fastening Torque (Hard Joint) - 54 Nm
Vibration K factor - 1.5 m/sec
Vibration: Impact drilling into concrete - 8.0 m/sec
Vibration: Drilling into metal - 2.5 m/sec
Net weight - 1.8 kg
EAN: 0197050009401
