Makita DLX3193TJ 18v LXT 3PC Brushless Kit DKP181Z Planer DRT50 Router + DHP490Z
Stock Code:
DLX3193TJ
Makita DLX3193TJ 18v LXT 3PC Brushless Kit DKP181Z Planer DRT50 Router + DHP490Z
Stock Code:
DLX3193TJ
View All: Cordless Tool Kits
View All Makita Products
£567.99
Excl. VAT
£473.32
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
Makita DLX3193TJ 18v Combi Drill, Planer & Trimmer Kit is supplied with 2 x 5.0Ah batteries, charger and Makpac case.
DKP181Z Features
The DKP181Z delivers heavy duty cutting performance with a high powered Brushless Motor, allowing a massive 3mm max. cutting depth.
Coupled with Automatic Torque Drive technology, the planer automatically adjusts speed & torque depending on the load conditions for optimal cutting.
Also featuring an electric brake & a foot on the base plate, increasing safety & protecting workpieces from any possible damage.
3mm Cutting Depth –high powered brushless motor allows up to a maximum 3mm cutting depth.
25mm Shiplapping Cuts –housing design has been re-engineered to allow for up to a 25mm cutting depth.
3 Chamfering Grooves –easy chamfering by aligning the groove with the edge of the workpiece.3 different size grooves allow for different groove dimensions.
Electric Blade Brake –blade rapidly stops after the trigger has been released. Preventing user injury or damage to the workpiece.
Automatic Torque Driver Technology (ADT) –automatically changes the cutting speed according to the load conditions for optimum operation.
Left & Right Chip Ejection –easily divert the wood chips either left or right by adjusting the ejection cover plate to the preferred side.
Foot On Base Plate –protects the workpiece from scratches & damage by raising the base off the work material when not in operation.
Automatic Torque Driver Technology (ADT) –automatically changes the cutting speed according to the load conditions for optimum operation.
Left & Right Chip Ejection –easily divert the wood chips either left or right by adjusting the ejection cover plate to the preferred side.
Foot On Base Plate –protects the workpiece from scratches & damage by raising the base off the work material when not in operation.
DHP490Z Features
The DHP490 18v LXT Cordless Brushless Combi Drill from Makita ensures sufficient torque by adopting a Brushless Motor is lightweight and compact, easy to handle even in narrow spaces. With mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque.
Keyless chuck for easy bit installation and removal
Built-in LED light with pre-glow and afterglow functions illuminates the work area
Variable speed trigger allows operator to adjust speed based on materials or application
eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Battery protection circuit protects against overloading, over-discharging and over-heating
Keyless chuck for easy bit installation and removal
Built-in LED light with pre-glow and afterglow functions illuminates the work area
Variable speed trigger allows operator to adjust speed based on materials or application
eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Battery protection circuit protects against overloading, over-discharging and over-heating
DRT50Z Features:
Brushless motor eliminates carbon brushes, enabling the motor to run cooler and more efficiently for longer life
Aluminium housing and base for higher durability and accuracy
Usable collet sizes: 6 mm, 8 mm (1/4", 3/8")
100% compatible with the Makita 18 volt Makstar range of LXT batteries up to 6.0Ah
Variable speed control dial - 5 speed settings from 10,000 - 30,000 RPM (no load)
Constant speed control - The speed control function provides the constant rotation speed regardless of load conditions
Soft start - The soft-start function minimizes start-up shock, and makes the tool start smoothly
Shaft lock for easy installation and removal of trimmer bit
Includes dust port for attaching to Makita dust extractors
Dual LED worklight illuminates the workpiece - controlled by switch
On / Off button for best control
Electric brake
Compatible with RT0700C / RT0701C bases

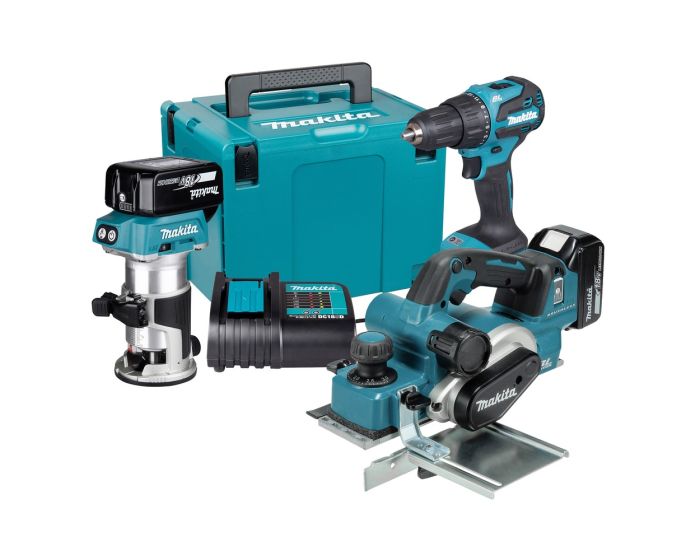

Includes
DKP181 18v Brushless Planer.
DHP490 18v combi drill.
DRT50 18v trimmer.
2 x 5.0Ah batteries, charger and Makpac case.
DHP490 18v combi drill.
DRT50 18v trimmer.
2 x 5.0Ah batteries, charger and Makpac case.
DKP181Z Specification
Voltage 18 Volt
Planning Width 82mm
Max. Planning Depth 3mm
Shiplapping / Rebate 25mm
No Load Speed 12,000 RPM
Noise 84db(A)
Vibration 5.0m/s²
Overall Length 366mm
Skin Weight 3.0kg
Weight (with battery) 3.6kg
DHP490Z Specification
Nominal Battery Voltage: 18v
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): Li-ion
No Load Speed: 0 - 500 / 1900 min⁻¹
Max. Fastening Torque Hard/Soft: 50 / 27 Nm
Max Torque: 65 Nm
Torque Setting: 20
Impacts per Minute (IPM): 0 - 7500 / 28500 min⁻¹
Max. Drilling Diameter in Wood: 38 mm
Max. Drilling Diameter in Masonry: 13 mm
Max. Drilling Diameter in Steel: 13 mm
Drilling Capacity Wood (Auger Bit): 38 mm
Drilling Capacity Wood (Self-feed bit): 38 mm
Drilling Capacity Flat Bit: 40 mm
Drilling Capacity Hole Saw: 51 mm
Driving Shank: 1/2"-20UNF "
Drill Chuck Capacity: 1.5 - 13 mm
Product Dimensions (L x W x H): 172 x 81 x 255 mm
Tool Weight With Battery: 1.4 - 1.7 kg
Product Net Weight: 1.0 kg
Vibration Level, Drilling into metal:≤ 2.5 m/s²
Vibration Uncertainty (K Factor), Drilling into metal: 1.5 m/s²
Vibration Level, Impact Drilling into Concrete: 8.1 m/s²
Vibration Uncertainty (K Factor), Impact Drilling into Concrete: 1.5 m/s²
Sound Power Level (LWA): 96 dB(A)
Sound Pressure Level (LpA): 88 dB(A)
Noise Uncertainty (K Factor): 3 dB(A)
DRT50Z Specification
Battery Type - Lithium-ion
Voltage - 18 v
Collet Capacity - 3/8" and 1/4"
Noise sound pressure - 78 dB(A)
Plunge Capacity (Trimmer) - 0 - 40 mm
Plunge Capacity (Plunge) - 0 - 35 mm
No Load Speed - 10,000 - 30,000 rpm
Vibration K factor - 1.5 m/sec
Vibration: Cutting MDF - 4.5 m/sec
Vibration no load - 2.5 m/sec
Net weight - 2.1 kg
EAN: 0197050011367
