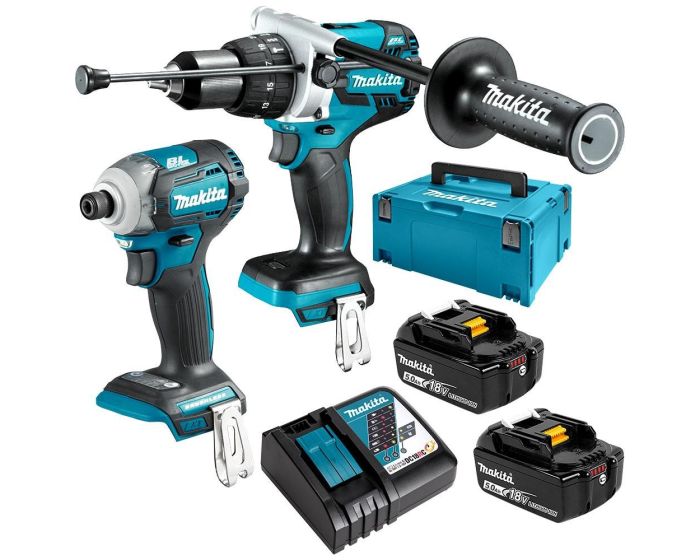

Makita 18V DLX2214TJ Lithium Brushless Kit DHP481 Drill + DTD170 Impact 5.0AH
Stock Code:
DLX2214TJ
Makita 18V DLX2214TJ Lithium Brushless Kit DHP481 Drill + DTD170 Impact 5.0AH
Stock Code:
DLX2214TJ
View All: Cordless Combi Drills
View All Makita Products
View All: Makita Sale
£439.96
Excl. VAT
£366.63
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
The Makita DHP481 is a best in class cordless heavy duty brushless 18V combi drill Supplied with the best possible ergonomic handle for drill-driver applications.
The new Makita DTD170 impact driver is technically a 6-function impact driver, with four speeds and matched impact power: then the newly introduced operating mode, 'T-Mode' is used for tightening self-drilling Tek screws and the new A-Mode (Assist mode) which, when selected starts the rotation slowly allowing maximum control of the screw as it starts to bite into the material. Once the impact driver detects the screw tightening it switches to full speed and full impact power to complete the tightening sequence.
The A-Mode is designed to eliminate screw cam-out and cross threading caused by high speed rotation before the screw bites in the material.
The new Makita DTD170 generates a massive 175 Nm maximum tightening torque with four impact speeds and power stages ranging from soft setting of 1100 rpm and 1100 impacts per minute; through medium and hard setting levels up to a maximum of 3,600 rpm and 3,800 ipm. This impact driver handles high strength bolts up to M14 and 22x125mm coarse thread screws.
In line with all new Makita tools the performance increases whilst the overall size of the machines decreases.
The new top-of-the-range Makita DTD170 impact driver has a compact overall body length of just 117mm and weighs only 1.5kg.
DHP481Z:
The A-Mode is designed to eliminate screw cam-out and cross threading caused by high speed rotation before the screw bites in the material.
The new Makita DTD170 generates a massive 175 Nm maximum tightening torque with four impact speeds and power stages ranging from soft setting of 1100 rpm and 1100 impacts per minute; through medium and hard setting levels up to a maximum of 3,600 rpm and 3,800 ipm. This impact driver handles high strength bolts up to M14 and 22x125mm coarse thread screws.
In line with all new Makita tools the performance increases whilst the overall size of the machines decreases.
The new top-of-the-range Makita DTD170 impact driver has a compact overall body length of just 117mm and weighs only 1.5kg.
DHP481Z:
Forward/reverse rotation
Single sleeve keyless chuck allows for easy bit installation/removal by one hand.
Electric brake
Twin LED job light with afterglow.
2 mechanical gears.
Battery fuel gauge
Variable speed control by trigger
Best possible ergonomic handle for drill-driver applications.
Compact overall length.
DTD170:
New impact mode, 'Assist-Mode' drives slowly to start screw before full tightening to eliminate "screw cam-out" and "cross threading
TEK mode ('T-mode') reduces impact power during final stages of fastener seating
Electronic 4-stage impact power selection
Massive 175 Nm max tightening torque
More compact body with overall length of just 117mm and lightweight at only 1.5 Kg
Brushless DC motor with high power to weight and size ratio
Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
One touch sliding chuck for easy bit installation and removal
Twin LED job lights with pre-glow and afterglow features
Ergonomic soft rubber grip design for vibration absorption and comfortable operation
Variable speed control by trigger with electric brake
Includes:
Single sleeve keyless chuck allows for easy bit installation/removal by one hand.
Electric brake
Twin LED job light with afterglow.
2 mechanical gears.
Battery fuel gauge
Variable speed control by trigger
Best possible ergonomic handle for drill-driver applications.
Compact overall length.
DTD170:
New impact mode, 'Assist-Mode' drives slowly to start screw before full tightening to eliminate "screw cam-out" and "cross threading
TEK mode ('T-mode') reduces impact power during final stages of fastener seating
Electronic 4-stage impact power selection
Massive 175 Nm max tightening torque
More compact body with overall length of just 117mm and lightweight at only 1.5 Kg
Brushless DC motor with high power to weight and size ratio
Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
One touch sliding chuck for easy bit installation and removal
Twin LED job lights with pre-glow and afterglow features
Ergonomic soft rubber grip design for vibration absorption and comfortable operation
Variable speed control by trigger with electric brake
Includes:
2 x 5.0ah Batteries
Specifications of the Makita DHP481Z
Battery TypeLithium-ion
Body only machine
Voltage 18 v
Chuck Capacity 1.5 - 13 mm
Max. in masonry 16 mm
Max. in steel 13 mm
Max. in wood 76 mm
Blows per Minute (Hi) - ipm 0 - 31,500 ipm
Blows per Minute (Lo) - ipm 0 - 8,250 ipm
Maximum Output 640 w
No Load Speed (Hi) 0 - 2100 rpm
No Load Speed (Lo) 0 - 550 rpm
Torque Settings 21 + drill
Lock Torque 125 Nm
Max. Fastening Torque (Soft Joint) 60 Nm
Max. Fastening Torque (Hard Joint) 115 Nm
Vibration K factor1.5 m/sec
Vibration: Impact drilling into concrete 6.5 m/sec
Vibration: Drilling into metal 2.5 m/sec
Weight (with batteries) 2.7 kg
Battery TypeLithium-ion
Body only machine
Voltage 18 v
Chuck Capacity 1.5 - 13 mm
Max. in masonry 16 mm
Max. in steel 13 mm
Max. in wood 76 mm
Blows per Minute (Hi) - ipm 0 - 31,500 ipm
Blows per Minute (Lo) - ipm 0 - 8,250 ipm
Maximum Output 640 w
No Load Speed (Hi) 0 - 2100 rpm
No Load Speed (Lo) 0 - 550 rpm
Torque Settings 21 + drill
Lock Torque 125 Nm
Max. Fastening Torque (Soft Joint) 60 Nm
Max. Fastening Torque (Hard Joint) 115 Nm
Vibration K factor1.5 m/sec
Vibration: Impact drilling into concrete 6.5 m/sec
Vibration: Drilling into metal 2.5 m/sec
Weight (with batteries) 2.7 kg
Specifications of the Makita DTD170
Voltage: 18v
Max Torque (Nm): 175
Brake Type: Electric
LED Job Light: Yes / Twin / Pre-glow / After-glow
Battery Capacity Indicator: Yes
Battery Compatibility: 18v Lithium-Ion (LXT)
Rotation: Forward & Reverse
Variable Speed Control Trigger: Yes / + 4-Stage Impact Power Selection
No Load Speed (RPM):
Max: 0-3600 / H: 0-3200 / M: 0-2100 / S: 0-1100
Machine Screw Capacity: M4-M8
Standard Bolt Capacity: M5-M16
High Tensile Bolt Capacity: M5-M14
Coarse Thread Length Capacity (mm): 22-125
Max. Impacts Per Minute (ipm): 4 Stages as below:
Max: 0-3800 / H: 0-3600 / M: 0-2600 / L: 0-1100
Driving Shank: 1/4" Hex
Overall Length (mm): 117
Net Weight (Kg with 1.5/2Ah Battery): 1.2
Net Weight (Kg with 3/4/5Ah Battery): 1.5
Brushless Motor: Yes
EAN: 0088381842822
