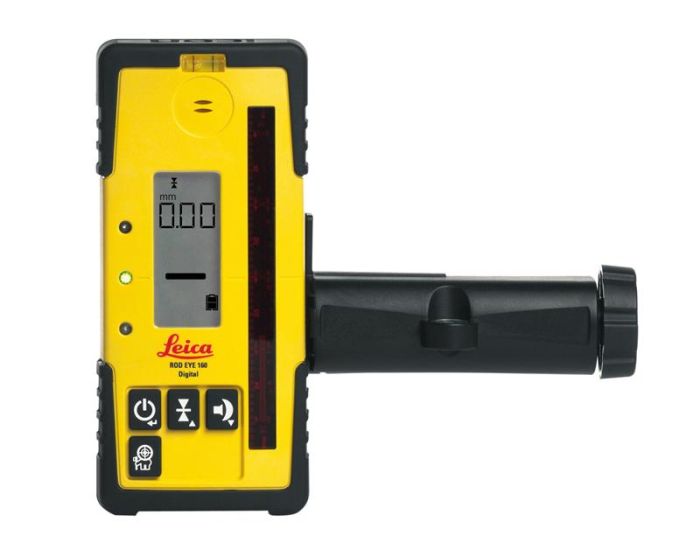

Leica Geosystems 789924 Rod Eye 160 Digital Receiver with Bracket LGSRE160
Stock Code:
LGSRE160
Leica Geosystems 789924 Rod Eye 160 Digital Receiver with Bracket LGSRE160
Stock Code:
LGSRE160
View All: Laser Levels
View All Leica Geosystems Products
£212.12
Excl. VAT
£176.77
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Delivery
Returns
Finance Options
Reviews
The Leica Rod Eye 160 Digital Receiver has 2 large graphic displays on the front and back of the receiver. With 3 bright LEDs can be used as a ready reference for the receiver position. The large numbers are clear and easy to read, so you can stay on grade. The 21 step arrow displays provide a graduated reference as user locks on the laser beam. Menu function allows for additional options to be set, allowing your own personal functional preferences. Including capture function, allows the user to store and display a measurement. Fitted with a level vial, ensuring good alignment and improved reading accuracy.
Offers exceptional reception, the extra long reception window includes the unique technology that provides the accurate digital input. With four audio settings, off/low/medium/high, up to 105 decibels for noisy jobs. The versatile rod bracket ensures solid mounting to the grade rod (supplied). The circular level vial aids to keep your grade rod plumb. With a protective overmould that protects the receiver from drops in tough jobsite conditions.
Special Features:
Units of Measure: Digital information is displayed above and below grade in mm, cm, inches, fractions of inches and feet.
Anti-Strobe Protection: Detects and ignores the flash from strong strobes on the job so that they will not interfere with the receiver function.
Beam Finding: Passing the receiver through the laser beam will cause the receiver to beep twice quickly.
Out of Beam Display: If the detector is moved out of the detector range, the arrow display will indicate the direction to move to return to the laser beam.
Laser Low Battery: A small laser icon on the receiver display alerts the user when the batteries are getting low.
Specification
Working Diameter (Laser Dependent): 1,350m.
Detection Window: 120mm.
Digital Readout Units: mm, cm, in, in (fractions), ft.
Numeric Readout Height: 90mm.
Detectable Spectrum: 600-800nm.
Detectable Accuracies: Very Fine: ± 0.5mm, Fine: ± 1.0mm, Medium: ± 2.0mm, Coarse: ± 3.0mm, Very Coarse: ± 5.0mm.
Audio Volumes: High/Medium/Low/Off.
Automatic Shut Off: 10 Minutes.
Arrow Display: 15 Channels.
Protection Class: IP67.
Input Power: 2 x AA Batteries (Not Supplied).
Battery Life: +50 Hours.
Dimensions: 173 x 76 x 29mm.
Operating Temperature: -20°C to +50°C.
Type:Receiver
Brand:Leica Geosystems
Category:Laser Accessories
Height:170mm
Width:70mm
Depth:220mm
Weight:0.78kg
MPN:789924
Brand:Leica Geosystems
Category:Laser Accessories
Height:170mm
Width:70mm
Depth:220mm
Weight:0.78kg
MPN:789924
EAN: 7640110693339
