ForgeFix 10CB10100 Carriage Bolt & Nut ZP M10 x 100mm Bag 10 FORCB10100M
Stock Code:
FORCB10100M
ForgeFix 10CB10100 Carriage Bolt & Nut ZP M10 x 100mm Bag 10 FORCB10100M
Stock Code:
FORCB10100M
View All: Fixings
£6.04
Excl. VAT
£5.03
Excl. VAT
Available - Delivery within 3-4 Working Days
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews

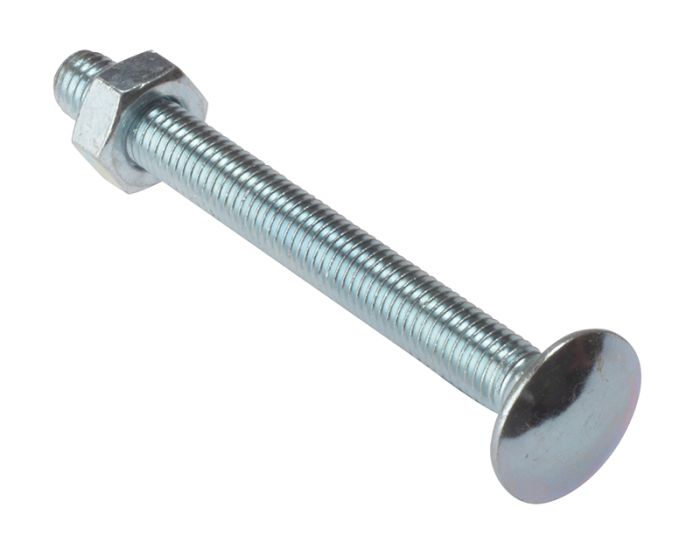

Carriage Bolt & Nut ZP M10 x 100 Bag 10
These Forgefix Carriage Bolts are Zinc Plated, and ideal for timber to timber joining. They come complete with a hex nut and are fully threaded to 100mm. Also known as 'Cup Square Hex Bolts', the square underneath the Cup stops rotation of the bolt when tightening.
Conform to DIN 603 and DIN 934 standards.
Available in a comprehensive range of sizes to suit most applications.
APPLICATION
Used mainly for fastening timber to timber and is extensively used for timber joist construction in house building and numerous decking applications.
A Carriage Bolt, also known as a Coach Bolt or as a ‘Fully Threaded Cup Square Hex Bolt’, has a domed or countersunk head, and the shank is topped by a short square section under the head. The square section grips into the part being fixed (typically wood), preventing the bolt from turning when the nut is tightened. A rib neck Carriage Bolt has several longitudinal ribs instead of the square section, to grip into a metal part being fixed.
Zinc coatings prevent oxidation of the protected metal to create a longer lasting finish. It does this by forming a barrier and by acting as a sacrificial anode if this barrier is damaged. Zinc oxide is a fine white dust that (in contrast to iron oxide) does not trigger a breakdown of the substrate’s surface integrity as it is formed. The zinc oxide, if left intact, can act as a barrier to further oxidation, in a way similar to the protection afforded to aluminium and stainless steels by their oxide layers.
ForgeFix
A04
B2052
Brand: ForgeFix
Category: Carriage Bolts
Height (mm): 117
Width (mm): 49
Depth (mm): 215
Weight: 0.694
Size: M10
Length (mm): 100
Finish: Zinc Plated
Pack Qty.: 10
EAN: 5028485505327
