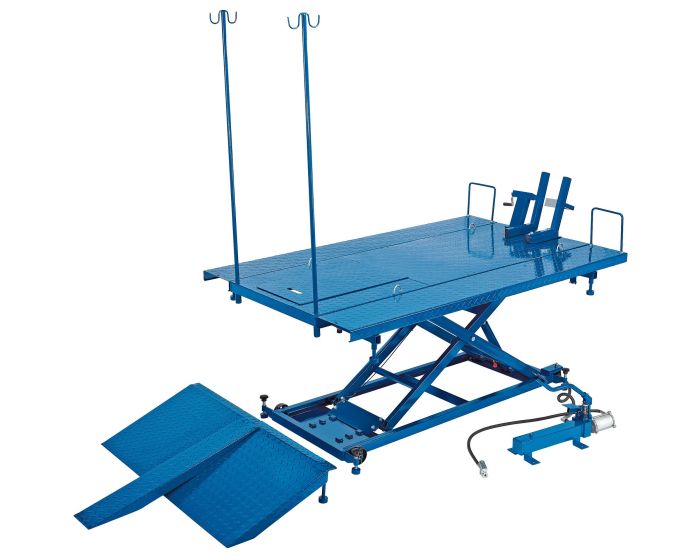

Draper 37190 Pneumatic/Hydraulic Motorcycle/ATV Small Garden Machinery Lift, 680kg
Stock Code:
37190
Draper 37190 Pneumatic/Hydraulic Motorcycle/ATV Small Garden Machinery Lift, 680kg
Stock Code:
37190
View All: Automotive Equipment
View All Draper Products
View All: Buyaparcel Winter Essentials
£1,523.40
Excl. VAT
£1,269.50
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
Large lift that supports motorcycles plus all terrain vehicles (ATV), Mini tractors and other similar - sized vehicles which can be accommodated by using the Supplied additional side platforms for extra width. All steel construction with heavy duty foot operated dual hydraulic pump and pneumatic pump - up system with controller and ram assembly. Safety table lock device to prevent accidental lowering. Removable front wheel clamp and rear panel to facilitate rear wheel changes (motorcycles only). Base assembly fitted with transport wheels and lock downs to prevent lift from moving whilst in use. Table surface is stippled for safety and grip whilst loading motorcycles/ATV/small garden machinery. Supplied in wooden crate.
- Manufactured to EN1494-2000 Specification
- Large lift that supports motorcycles plus all terrain vehicles (ATV), mini tractors and other similar-sized vehicles which can be accommodated by using the supplied additional side platforms for extra width
- All steel construction with heavy duty foot operated hydraulic pump or pneumatic pump-up system with controller and ram assembly
- Safety table lock device to prevent accidental lowering
- Removable front wheel clamp and rear panel to facilitate rear wheel changes (motorcycles only)
- Base assembly fitted with transport wheels and lock downs to prevent lift from moving whilst in use
- Table surface is stippled for safety and grip whilst loading motorcycles
- Working table size: 1950 x 1220mm including side extension plates (L x W)
- Three working heights: 550, 720, 840mm
- Maximum height: 885mm
- Capacity: 680kg (1500lbs)
- Operating air pressure: 90psi (6.2bar)
- Air inlet: 1/4"BSP
- Lifting range: 200-885mm
- Working height stops : 550; 720; 840mm
- Maximum height: 885mm
- Closed height: 200mm
- Table as motorcycle lift (L x W): 1950 x 680mm
- Table as for ATV use (L x W): 1950 x 1220mm
- Motorcycle loading ramp (L x W): 850 x 150mm
- Rear wheel removal panel (L x W): 600 x 250mm
- Weight: 260kg
Manufactured to EN1494 Specification
Brand: Draper
Manufacturer Part Number: 37190
EAN: 5010559371907
Weight: 273.500
Category: Mechanics, Automotive and Workshop
Type: Vehicle Lifting Equipment
Air Inlet: 1/4"BSP
Capacity: 680kg (1500lbs)
Closed Height: 200mm
Lifting Range: 200-885mm
Max Height: 885mm
Operating Air Pressure: 90psi (6.2bar)
Rear Wheel Removal Panel (L x W): 600 x 250mm
Motorcycle Loading Ramp (L X W): 850 x 150mm
Table As For Atv Use (L X W): 1950 x 1220mm
Table As Motorcycle Lift (L X W): 1950 x 680mm
Working Height Stops : 550; 720; 840mm
Weight: 260kg
Manufacturer Part Number: 37190
EAN: 5010559371907
Weight: 273.500
Category: Mechanics, Automotive and Workshop
Type: Vehicle Lifting Equipment
Air Inlet: 1/4"BSP
Capacity: 680kg (1500lbs)
Closed Height: 200mm
Lifting Range: 200-885mm
Max Height: 885mm
Operating Air Pressure: 90psi (6.2bar)
Rear Wheel Removal Panel (L x W): 600 x 250mm
Motorcycle Loading Ramp (L X W): 850 x 150mm
Table As For Atv Use (L X W): 1950 x 1220mm
Table As Motorcycle Lift (L X W): 1950 x 680mm
Working Height Stops : 550; 720; 840mm
Weight: 260kg
EAN: 5010559371907
Draper Expert Range Air Tools, pressure washers, compressors, submersible water pumps, welding machines, space heaters, petrol power tools, generators and battery chargers - 12 Months Parts 12 Months Labour
Air Tools (excluding Draper Expert Quality Air Tools & Compressors)
- 6 Months Parts 6 Months Labour
Honda and Briggs & Stratton petrol engines
- 24 Months Labour 24 Months Labour
All other power tools
- 24 Months Parts 12 Months Labour.
All products not covered by the above product types such as hand tools are guaranteed to be free from faulty workmanship and or materials for life.
These guarantees do not apply to normal wear and tear, not any damages caused by misuse, careless or unsafe handling, alterations, accidents or repairs attempted, other than by authorised Draper warranty repair agents.
For more information please visit the Draper website.
