Draper 32740 Laserliner 053.650A Quadrum Compact GT M300 S Rotary Laser
Stock Code:
32740

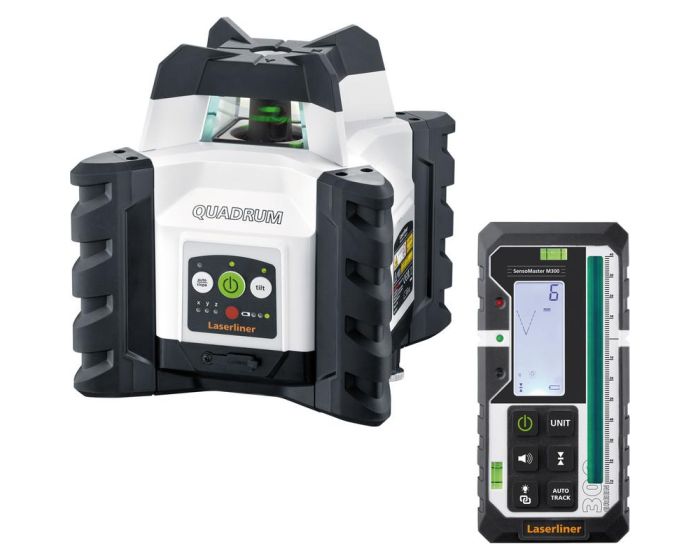

Draper 32740 Laserliner 053.650A Quadrum Compact GT M300 S Rotary Laser
Stock Code:
32740
View All: Laser Levels
View All Draper Products
View All: Whats New at Buyaparcel
£1,252.42
Excl. VAT
£1,043.68
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
This fully automatic and extremely easy-to-operate rotary laser is ideal for precise alignment work on the horizontal and vertical plane. The green laser technology provides outstanding visibility. Thanks to the 5/8” thread integrated into the side of the casing for mounting to tripods, the laser can be positioned so that it can also be used for precise vertical alignment. The plumb points projected at the top and bottom act as a reliable reference to ensure the horizontal plane and the plumb of a foundation. In the tracking function, the rotary laser aligns itself to the millimetre receiver. In the process, the receiver automatically sets the laser beam to the zero position by means of radio transmission. A vertical plane can be aligned with the tracking function, for example to place a room divider. The tracking function also makes horizontal levelling easier, quicker and more precise in many applications, for example on terrace and exterior work or when preparing foundations. This is particularly helpful in projects that require high precision and efficiency. Supplied with universal mount, remote control, two high capacity pack Li-ion batteries, network/charging device (including an international adapter), a USB-A to USB-C cable, and a carrying case.
- Horizontal/vertical levelling: Yes
- Hand receiver mode: Yes
- Scan mode: Yes
- Spot mode: Yes
- Motorised slope function: Yes
- Manual slope function: Yes
- Precision sensor levelling: Yes
- Battery and mains operation: Yes
- Anti-Drift-System (ADS): Yes
- Plumb laser up (90° reference beam): Yes
- Plumb laser down: Yes
- Tilt warning function: Yes
- AntiShake: Yes
- Self-Levelling Range: ± 4°
- Accuracy: ±0.15 mm/m
- Levelling: horizontal / vertical automatic
- Laser Wavelength: 515 nm
- Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
- Protection Class: IP 66
- Power Supply: Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
- Operating Time: approx. 20 hours
- Battery Recharging Time: approx. 4 hours
- Dimensions (W x H x D): 170 mm x 188 mm x 170 mm
- Weight: 1575g
1 x Laserliner Quadrum Compact GT M300 S Rotary Laser
1 x Universal mount
1 x Remote control
2 x HighCapacityPack (Li-Ion)
1 x Batteries
1 x Network/charging device incl. international adapter
1 x USB-A to USB-C cable
1 x Carrying case
1 x Universal mount
1 x Remote control
2 x HighCapacityPack (Li-Ion)
1 x Batteries
1 x Network/charging device incl. international adapter
1 x USB-A to USB-C cable
1 x Carrying case
EAN: 4021563740178
