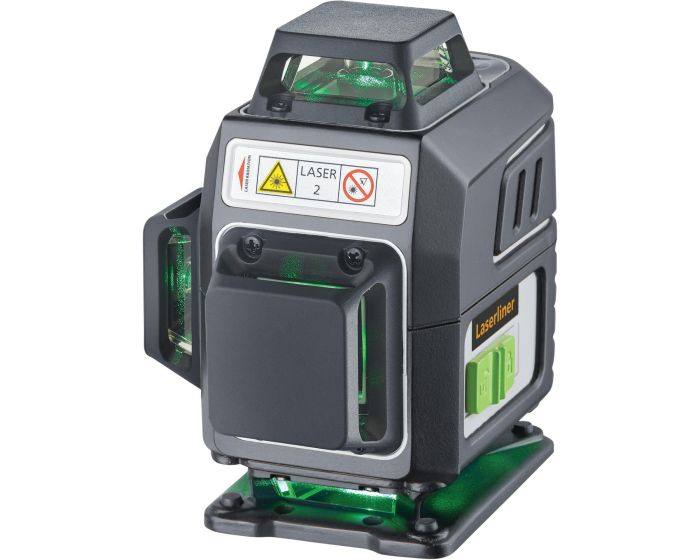

Draper 32166 Laserliner 036.705A PocketPlane-Laser 4G Three-Dimensional Laser
Stock Code:
32166
Draper 32166 Laserliner 036.705A PocketPlane-Laser 4G Three-Dimensional Laser
Stock Code:
32166
View All: Laser Levels
View All Draper Products
£364.76
Excl. VAT
£303.97
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
This three-dimensional, practical and highly visible green laser projects two horizontal and two vertical laser circles for precise alignment of objects. Thanks to the horizontal laser circle at the very bottom, the device is particularly suited to applications close to the floor, such as determining floor heights and aligning skirting boards. The laser crosses form a plumb function for working simultaneously on floors and ceilings. A manual slope mode is available for creating gradients. This laser is an extremely useful tool for demanding projects due its the comprehensive range of accessories. The PocketWallHolder is a multi-functional, height-adjustable, magnetic bracket for attaching the laser to walls, metal items and tripods with a 1/4” or 5/8” thread. Battery not supplied.
- Three-dimensional laser with two horizontal and two vertical 360° laser circles
- Accurate horizontal and vertical alignment of objects
- Optimum solution for applications very close to the floor (determining floor heights, aligning skirting boards)
- Good visibility through green laser technology
- Height-adjustable, magnetic, multi-function bracket with 1/4” and 5/8” thread for attaching to walls, metal items and tripods
- Magnetic target plate with stand, nail hole and dual scale – perfect for working close to ceilings
- Laser enhancement glasses for optimum visibility of laser lines with the human eye
- Time-saving automatic alignment
- Integrated hand-held receiver mode for outdoor applications
- Battery not supplied
- Horizontal/vertical levelling: Yes
- Manual slope function: Yes
- Battery and mains operation: Yes
- Hand receiver mode: Yes
- Self-Levelling Range: ± 3.5° (horizontal)
- Accuracy: ±0.3 mm/m
- Levelling: Automatic
- Visibility (Typical)*: 30 m
- Laser Wavelength: 515 nm
- Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
- Power Supply: Li-ion battery pack 3.7V / 4.0Ah / 14.8Wh
- Operating Time; with 3 laser levels: approx. 7 hours
- Operating Conditions: 0°C 50°C
- Storage Conditions: -10°C 70°C
- Dimensions (W x H x D): 103 mm x 106 mm x 76 mm
- Weight: 464g
1 x Laserliner 036.705A PocketPlane-Laser 4G Three-Dimensional Laser
1 x PocketWallHolder
1 x TopHolder
1 x Magnetic target plate green
1 x Laser enhancement glasses
1 x Network/charging device incl. international adapter
1 x USB-C-cable
1 x Carrying case
1 x PocketWallHolder
1 x TopHolder
1 x Magnetic target plate green
1 x Laser enhancement glasses
1 x Network/charging device incl. international adapter
1 x USB-C-cable
1 x Carrying case
EAN: 4021563402847
