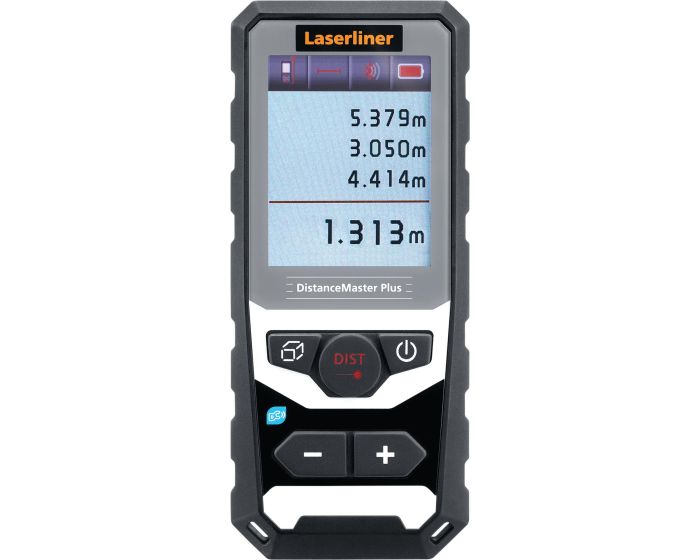

Draper 32152 Laserliner 080.983A DistanceMaster Plus Laser Rangefinder, 100m
Stock Code:
32152
Draper 32152 Laserliner 080.983A DistanceMaster Plus Laser Rangefinder, 100m
Stock Code:
32152
View All: Distance Measurers
View All Draper Products
£137.15
Excl. VAT
£114.29
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
This universal laser rangefinder has a long measuring range of 100 metres and is perfect for rapid measurement, addition and subtraction of lengths, areas and volumes. The angle function allows heights and distances to be determined indirectly –– perfect for measuring inaccessible locations. The continuous measuring function makes it easier to work in situations where continuous range-finding measurements are required, such as when the target object moves during measurement. The digital spirit level allows the rangefinder to be precisely aligned horizontally and perfectly set up for the measurement. Measured data can be transferred to the measured value log using the digital connection interface. It can store a maximum of 50 entries for optimum recording of results from the project. Supplied with Li-ion battery pack and transport box.
- Simple measurement, addition and subtraction of lengths, areas and volumes
- Indirect determination of height in hard to reach locations using angle function (1 + 2 + 3)
- Automatic addition of wall surfaces with the same height, ideal for painting work
- Long measuring range of 100m
- Continuous measurement with Min/Max display
- Exact alignment of the measuring instrument through digital spirit level
- Robust, dustproof and waterproof
- Optimum project documentation: Easy transfer of measurement data to mobile devices via the digital connection
- Front, back or tripod housing reference point options
- Supplied with Li-ion battery pack and transport box
- Length/area/volume: Yes
- Min/Max: Yes
- Continuous measurement: Yes
- Indirect determination of height (Pythagoras): Yes
- Selectable housing reference point: Yes
- Addition/subtraction: Yes
- Data transfer: Yes
- Addition of wall area (decorators’ function): Yes
- Precision (Typical)*: ± 1.5 mm
- Measurement Range (Inside)**: 0,05 m - 100 m
- Laser Wavelength: 635 nm
- Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
- Memory: 50 storage locations
- Power Supply: Li-ion battery pack 3.7V / 0.7Ah
- Operating Conditions: -10°C 40°C
- Dimensions (W x H x D): 54 mm x 126 mm x 27 mm
- Weight: 142g (incl. Akkupack)
1 x Laserliner 080.983A DistanceMaster Plus Laser Rangefinder, 100m
1 x Li-ion battery pack
1 x Transport box
1 x Li-ion battery pack
1 x Transport box
EAN: 4021563732029
