Draper 03724 Draper Expert Pneumatic Jack, 30 Tonne
Stock Code:
03724
Draper 03724 Draper Expert Pneumatic Jack, 30 Tonne
Stock Code:
03724
View All: Automotive Equipment
View All Draper Products
View All: Buyaparcel Winter Essentials
£804.96
Excl. VAT
£670.80
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews

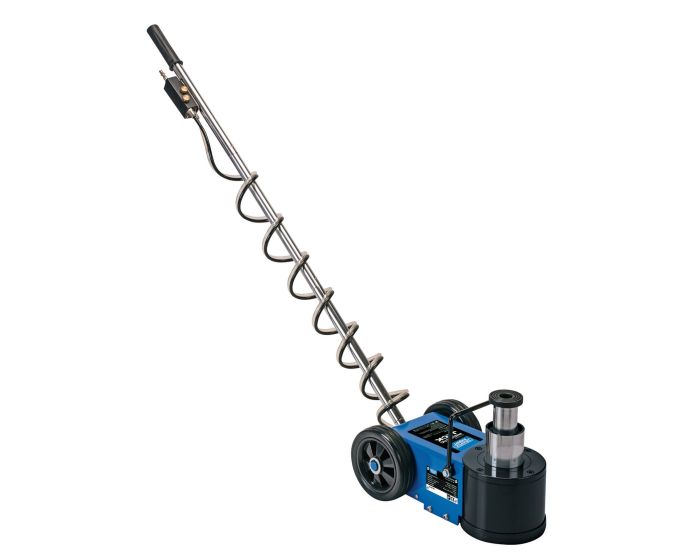

Portable and compact twin stage pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.
- Twin stage pneumatic jack
- Ergonomic handle grips
- Slow Down' valve
- Self Return' switch
- Twin PP and rubber wheels
- Industrial seals
- Supplied with 1/4" BSP inlet and 45mm/75mm extensions
- Manufactured, tested and certified to the current EN1494 standard
- Capacity stage 1: 30 Tonne (30,000kg)
- Capacity stage 2: 15 Tonne (15,000kg)
- Minimum height: 150mm
- Maximum height stage 1: 343mm (inc extensions)
- Maximum height stage 2: 409mm (inc extensions)
- Lift height stage 1: 73mm
- Lift height stage 2: 66mm
- Operating air pressure: 9 - 12BAR (130 - 174psi)
- Air consumption: 10.5cfm
- Air inlet: 1/4" BSP
- Wheel diameter: 165mm
- Wheel width: 42.5mm
- Saddle diameter: 70mm
- Extensions: 45mm and 75mm
- Handle length: 1200mm
- Chassis size: 430 x 176 x 150mm
- Nett weight: 30kg
Manufactured to EN1494 Specification
Brand: Draper
Manufacturer Part Number: 03724
EAN: 5010559037247
Weight: 36.500
Category: Mechanics, Automotive and Workshop
Type: Vehicle Lifting Equipment
Air Consumption: 10.5cfm
Air Inlet: 1/4” BSP
Capacity: 30 Tonne (30,000kg)15 Tonne (15,000kg)
Chassis Dimensions: 430 x 176 x 150mm
Handle Length: 1200mm
Lifting Height Position 1: 73mm
Lifting Height Position 2: 66mm
Max Height Stage 1: 343mm (inc extensions)
Max Height Stage 2: 409mm (inc extensions)
Min Height: 150mm
Nett Weight: 30kg
Operating Air Pressure: 9 – 12BAR (130 – 174psi)
Saddle Diameter: 70mm
Wheel Diameter: 165mm
Wheel Width: 42.5mm
Manufacturer Part Number: 03724
EAN: 5010559037247
Weight: 36.500
Category: Mechanics, Automotive and Workshop
Type: Vehicle Lifting Equipment
Air Consumption: 10.5cfm
Air Inlet: 1/4” BSP
Capacity: 30 Tonne (30,000kg)15 Tonne (15,000kg)
Chassis Dimensions: 430 x 176 x 150mm
Handle Length: 1200mm
Lifting Height Position 1: 73mm
Lifting Height Position 2: 66mm
Max Height Stage 1: 343mm (inc extensions)
Max Height Stage 2: 409mm (inc extensions)
Min Height: 150mm
Nett Weight: 30kg
Operating Air Pressure: 9 – 12BAR (130 – 174psi)
Saddle Diameter: 70mm
Wheel Diameter: 165mm
Wheel Width: 42.5mm
EAN: 5010559037247
Draper Expert Range Air Tools, pressure washers, compressors, submersible water pumps, welding machines, space heaters, petrol power tools, generators and battery chargers - 12 Months Parts 12 Months Labour
Air Tools (excluding Draper Expert Quality Air Tools & Compressors)
- 6 Months Parts 6 Months Labour
Honda and Briggs & Stratton petrol engines
- 24 Months Labour 24 Months Labour
All other power tools
- 24 Months Parts 12 Months Labour.
All products not covered by the above product types such as hand tools are guaranteed to be free from faulty workmanship and or materials for life.
These guarantees do not apply to normal wear and tear, not any damages caused by misuse, careless or unsafe handling, alterations, accidents or repairs attempted, other than by authorised Draper warranty repair agents.
For more information please visit the Draper website.
