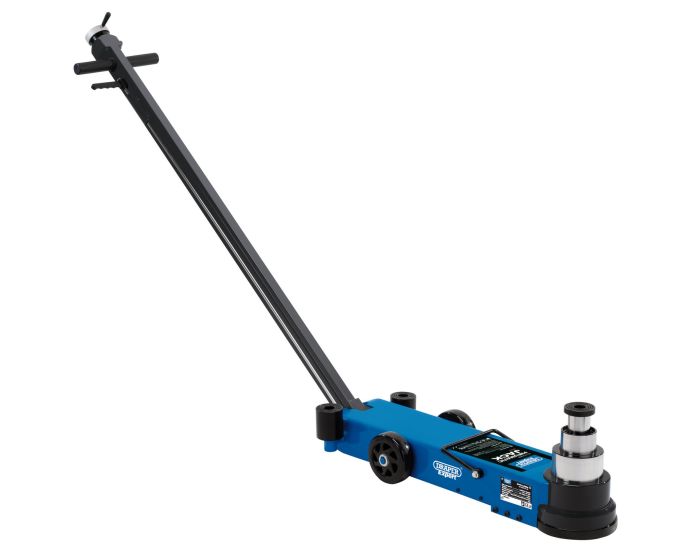

Draper 02080 Draper Expert Pneumatic Long Chassis Low Profile Jack, 40 Tonne
Stock Code:
02080
Draper 02080 Draper Expert Pneumatic Long Chassis Low Profile Jack, 40 Tonne
Stock Code:
02080
View All: Automotive Equipment
View All Draper Products
View All: Buyaparcel Winter Essentials
£1,225.08
Excl. VAT
£1,020.90
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
Long chassis, extra low profile pneumatic jack. The 125mm entry height has a total reach of 2210mm and is capable of lifting 40 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a 'Slow Down' valve and a 'Self-Return' switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector.
- Three stage pneumatic jack
- Extra low profile, 125mm entry height
- Long chassis, 2210mm reach
- ‘Slow Down’ valve
- ‘Self Return’ switch
- Twin PP and rubber wheels
- Industrial seals
- Supplied with 1/4” BSP inlet and 45mm/75mm extensions
- Capacity stage 1: 40 Tonne (40,000kg)
- Capacity stage 2: 20 Tonne (20,000kg)
- Capacity stage 3: 10 Tonne (10,000kg)
- Minimum height: 125mm
- Maximum height stage 1: 302mm (inc extensions)
- Maximum height stage 2: 347mm (inc extensions)
- Maximum height stage 3: 396mm (inc extensions)
- Lift height stage 1: 57mm
- Lift height stage 2: 45mm
- Lift height stage 2: 49mm
- Operating air pressure: 9 - 12BAR (130 - 174psi)
- Air consumption: 11.5cfm
- Air inlet: 1/4" BSP
- Wheel diameter: 125mm
- Wheel width: 47.5mm
- Saddle diameter: 70mm
- Extensions: 45mm and 75mm
- Handle length: 1380mm
- Chassis size: 830 x 179 x 125mm
- Nett weight: 44kg
Manufactured to EN1494 Specification
Brand: Draper
Manufacturer Part Number: 02080
EAN: 5010559020805
Weight: 50.740
Category: Mechanics, Automotive and Workshop
Type: Vehicle Lifting Equipment
Air Consumption: 11.5cfm
Air Inlet: 1/4" BSP
Capacity: 40 Tonne (40,000kg)20 Tonne (20,000kg)10 Tonne (10,000kg)
Chassis Dimensions: 830 x 179 x 125mm
Handle Length: 1380mm
Lifting Height Position 1: 57mm
Max Height Stage 1: 302mm (inc extensions)
Max Height Stage 2: 347mm (inc extensions)
Min Height: 125mm
Nett Weight: 44kg
Operating Air Pressure: 9 – 12BAR (130 – 174psi)
Saddle Diameter: 70mm
Wheel Diameter: 125mm
Max Height Stage 3: 396mm (inc extensions)
Wheel Width: 47.5mm
Manufacturer Part Number: 02080
EAN: 5010559020805
Weight: 50.740
Category: Mechanics, Automotive and Workshop
Type: Vehicle Lifting Equipment
Air Consumption: 11.5cfm
Air Inlet: 1/4" BSP
Capacity: 40 Tonne (40,000kg)20 Tonne (20,000kg)10 Tonne (10,000kg)
Chassis Dimensions: 830 x 179 x 125mm
Handle Length: 1380mm
Lifting Height Position 1: 57mm
Max Height Stage 1: 302mm (inc extensions)
Max Height Stage 2: 347mm (inc extensions)
Min Height: 125mm
Nett Weight: 44kg
Operating Air Pressure: 9 – 12BAR (130 – 174psi)
Saddle Diameter: 70mm
Wheel Diameter: 125mm
Max Height Stage 3: 396mm (inc extensions)
Wheel Width: 47.5mm
EAN: 5010559020805
