Draper 02078 Draper Expert Pneumatic High Lift Jack, 30 Tonne
Stock Code:
02078
Draper 02078 Draper Expert Pneumatic High Lift Jack, 30 Tonne
Stock Code:
02078
View All: Automotive Equipment
View All Draper Products
View All: Buyaparcel Winter Essentials
£1,523.40
Excl. VAT
£1,269.50
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews

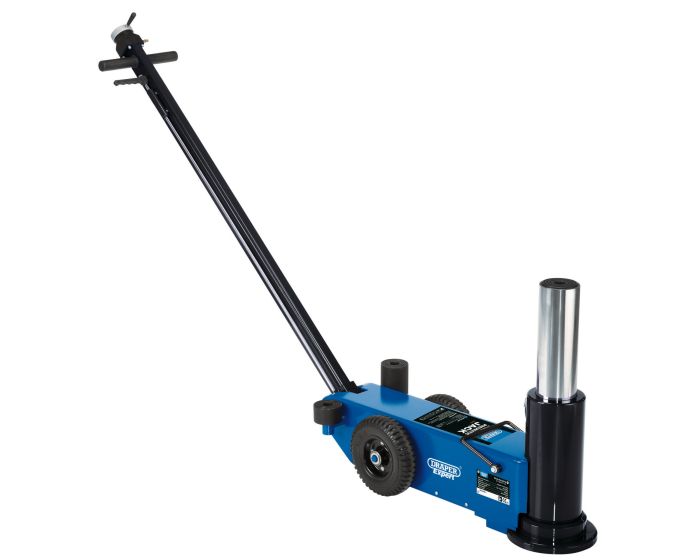

Portable and compact high lift pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 100mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.
- Single stage high lift pneumatic jack
- Agriculturally focused
- Ergonomic handle grips
- ‘Slow Down’ valve
- ‘Self Return’ switch
- Twin PP and rubber wheels
- Industrial seals
- Supplied with 1/4” BSP inlet and 45mm/100mm extensions
- Capacity: 30 Tonne (30,000kg)
- Minimum height: 360mm
- Maximum height: 772mm (inc extensions)
- Lift height: 267mm
- Operating air pressure: 9 - 12BAR (130 - 174psi)
- Air consumption: 11.5cfm
- Air inlet: 1/4" BSP
- Wheel diameter: 200mm
- Wheel width: 55.5mm
- Saddle diameter: 83.6mm
- Extensions: 45mm and 100mm
- Handle length: 1380mm
- Chassis size: 840 x 215 x 360mm
- Nett weight: 87kg
Manufactured to EN1494 Specification
Brand: Draper
Manufacturer Part Number: 02078
EAN: 5010559020782
Weight: 81.820
Category: Mechanics, Automotive and Workshop
Type: Vehicle Lifting Equipment
Air Consumption: 11.5cfm
Air Inlet: 1/4" BSP
Capacity: 30 Tonne (30,000kg)
Chassis Dimensions: 840 x 215 x 360mm
Handle Length: 1380mm
Lifting Height: 267mm
Max Height: 772mm (inc extensions)
Min Height: 360mm
Nett Weight: 87kg
Operating Air Pressure: 9 – 12BAR (130 – 174psi)
Saddle Diameter: 83.6mm
Wheel Diameter: 200mm
Wheel Width: 55.5mm
Manufacturer Part Number: 02078
EAN: 5010559020782
Weight: 81.820
Category: Mechanics, Automotive and Workshop
Type: Vehicle Lifting Equipment
Air Consumption: 11.5cfm
Air Inlet: 1/4" BSP
Capacity: 30 Tonne (30,000kg)
Chassis Dimensions: 840 x 215 x 360mm
Handle Length: 1380mm
Lifting Height: 267mm
Max Height: 772mm (inc extensions)
Min Height: 360mm
Nett Weight: 87kg
Operating Air Pressure: 9 – 12BAR (130 – 174psi)
Saddle Diameter: 83.6mm
Wheel Diameter: 200mm
Wheel Width: 55.5mm
EAN: 5010559020782
