Bosch GLL380 Red Self Levelling 360 Multi Line Cross Line Laser - Includes Case
Stock Code:
0601063S00
Bosch GLL380 Red Self Levelling 360 Multi Line Cross Line Laser - Includes Case
Stock Code:
0601063S00
View All: Laser Levels
View All Bosch Products
£265.97
Excl. VAT
£221.64
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
The GLL 3-80 360° Tri Plane Line Laser Level for the professional user is the world's first laser tool of its kind to simultaneously project clear 1 x horizontal and 2 x vertical laser light planes. Not only this but the Bosch GLL 3-80 line laser level also performs the functions of a cross line laser level.
Bosch have developed the GLL 3-80 as a compact robust unit that is easy to operate, it is the ideal tool for interior fitters and tilers. It levels itself in less than four seconds and has a levelling accuracy of ±0.2 millimeters per metre, not only quick and simple to use but extremely accurate as well. Ideal for all indoor applications with a 40m working range which can be extended to 80m with a receiver (not supplied)
Incorporating both a 5/8" and a 1/4" thread for working with any type of tripod & clicks easily onto rails thanks to two magnetic stops. Depending on the work needed the user can operate the mode switch to select between only a horizontal or vertical laser line or with both laser lines together.
Features two laser diodes which provide clearly visible lines. Another practical feature on the Bosch GLL 3-80 are its two accuracy levels: levelling accurate to within 3mm is performed in seconds. The "Out-of-Level" function helps to achieve these accurate results.
The GLL 3-80 Professional Plane Laser beeps and the laser line flashes quickly to indicate unintentional inclinations of more than 40°. The user can fix the pendulum lock if inclined lines are required. Then laser lines can be projected at any desired inclination.
IP54 Protection rated, compact, easy-to-handpe with a particularly robust housing, making the line laser level insensitive to dust and splash water. This, coupled with its pendulum lock means the GLL 3-80 Professional is also perfectly protected against impact when it is transported to or around the construction site.
Features
High visual clarity is provided by high-powered diodes
3 x 360° lines allow for simultaneous horizontal and vertical levelling applications for highly efficient work
Intuitive user interface offers easy operation
IP54 rated for dust & splash protection
+/- 0.2mm/m accuracy
Bosch have developed the GLL 3-80 as a compact robust unit that is easy to operate, it is the ideal tool for interior fitters and tilers. It levels itself in less than four seconds and has a levelling accuracy of ±0.2 millimeters per metre, not only quick and simple to use but extremely accurate as well. Ideal for all indoor applications with a 40m working range which can be extended to 80m with a receiver (not supplied)
Incorporating both a 5/8" and a 1/4" thread for working with any type of tripod & clicks easily onto rails thanks to two magnetic stops. Depending on the work needed the user can operate the mode switch to select between only a horizontal or vertical laser line or with both laser lines together.
Features two laser diodes which provide clearly visible lines. Another practical feature on the Bosch GLL 3-80 are its two accuracy levels: levelling accurate to within 3mm is performed in seconds. The "Out-of-Level" function helps to achieve these accurate results.
The GLL 3-80 Professional Plane Laser beeps and the laser line flashes quickly to indicate unintentional inclinations of more than 40°. The user can fix the pendulum lock if inclined lines are required. Then laser lines can be projected at any desired inclination.
IP54 Protection rated, compact, easy-to-handpe with a particularly robust housing, making the line laser level insensitive to dust and splash water. This, coupled with its pendulum lock means the GLL 3-80 Professional is also perfectly protected against impact when it is transported to or around the construction site.
Features
High visual clarity is provided by high-powered diodes
3 x 360° lines allow for simultaneous horizontal and vertical levelling applications for highly efficient work
Intuitive user interface offers easy operation
IP54 rated for dust & splash protection
+/- 0.2mm/m accuracy

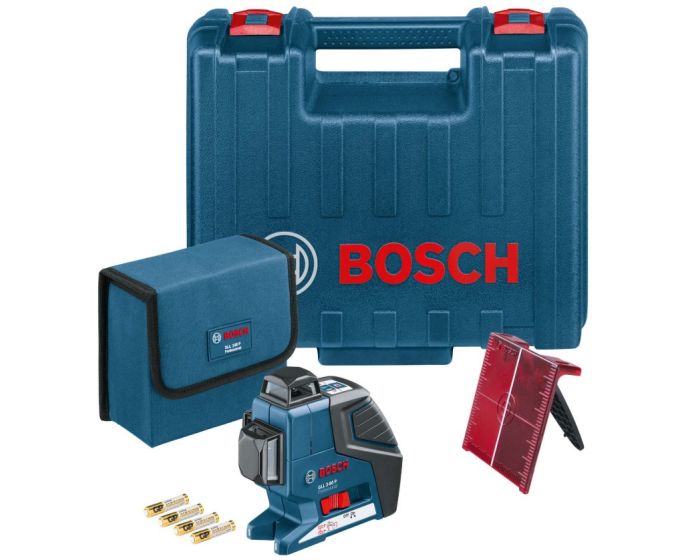

Includes
360° Multi Line Laser
Pouch
Target Plate
AA Batteries
Carry Case
Pouch
Target Plate
AA Batteries
Carry Case
Laser diode Line: 630 - 650 nm, < 10mW
Operating temperature -10 – 40 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range 30 m
Working range with receiver 80 m (Diameter)
Working range without receiver 30 m (Diameter)
Accuracy ± 0.2 mm/m
Self-levelling range ± 4°
Levelling time 4 s Dust and splash protection IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 4 h in 3-line mode
Tripod thread 1/4"", 5/8""
Weight, approx. 0,82 kg
Colour of laser line red
Projection 3 x 360° line
Operating temperature -10 – 40 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range 30 m
Working range with receiver 80 m (Diameter)
Working range without receiver 30 m (Diameter)
Accuracy ± 0.2 mm/m
Self-levelling range ± 4°
Levelling time 4 s Dust and splash protection IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 4 h in 3-line mode
Tripod thread 1/4"", 5/8""
Weight, approx. 0,82 kg
Colour of laser line red
Projection 3 x 360° line
EAN: 3165140888356
