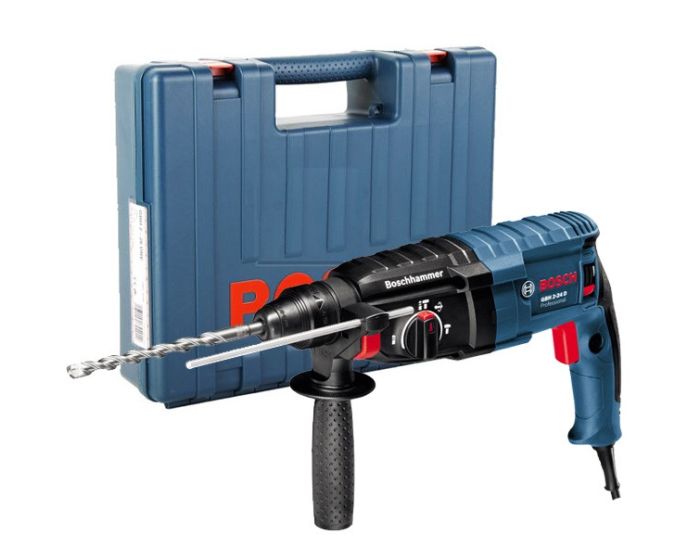

Bosch GBH2-24D 240v SDS Plus Rotary Hammer Drill 790w GBH224D - Includes Case
Stock Code:
06112A0070
Bosch GBH2-24D 240v SDS Plus Rotary Hammer Drill 790w GBH224D - Includes Case
Stock Code:
06112A0070
View All: Corded Percussion & SDS Drills
View All Bosch Products
£83.98
Excl. VAT
£69.98
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
The powerful all-rounder. Gets the work done quickly due to fast drilling rate and high chiselling performance because of 790 watt powerful motor and 2.7 joules of impact energy.
Other features include:
Reliable and robust with long lifetime due to high-quality components and compact construction.
Wide range of applications with rotation stop for chiselling work.
Ball grommet for preventing cable breaks.
Rotating brush plate for equal power in forward and reverse rotation.
Overload clutch to protect the user and the machine.
Forward/reverse rotation for dislodging jammed drill bits.
Continuously variable speed control for clean drilling starts.
Functions:
Right-hand/left-hand rotation
Electronic
Overload clutch
Other features include:
Reliable and robust with long lifetime due to high-quality components and compact construction.
Wide range of applications with rotation stop for chiselling work.
Ball grommet for preventing cable breaks.
Rotating brush plate for equal power in forward and reverse rotation.
Overload clutch to protect the user and the machine.
Forward/reverse rotation for dislodging jammed drill bits.
Continuously variable speed control for clean drilling starts.
Functions:
Right-hand/left-hand rotation
Electronic
Overload clutch
Specification for the Bosch GBH2-24D
Rated power input 790 W
Max. impact energy 2,7 J
Impact rate at rated speed 0 4.100 bpm
Rated speed 0 920 rpm
Weight 2,8 kg
Length 367 mm
Bit holder SDS-plus
drilling range
Drilling diameter in concrete with hammer drill bits 4 24 mm
Optimum range of applications in concrete with hammer drill bits 6 14 mm
Drilling diameter in concrete with core cutters 68 mm
Max. drilling diameter in masonry with core cutters 68 mm
Max. drilling diameter in steel 13 mm
Max. drilling diameter in wood 30 mm
Chiselling:
Vibration emission value ah 13.0 m/s
Uncertainty K 1.5 m/s
Hammer drilling in concrete:
Vibration emission value ah 17.0 m/s
Uncertainty K 1.5 m/s
Rated power input 790 W
Max. impact energy 2,7 J
Impact rate at rated speed 0 4.100 bpm
Rated speed 0 920 rpm
Weight 2,8 kg
Length 367 mm
Bit holder SDS-plus
drilling range
Drilling diameter in concrete with hammer drill bits 4 24 mm
Optimum range of applications in concrete with hammer drill bits 6 14 mm
Drilling diameter in concrete with core cutters 68 mm
Max. drilling diameter in masonry with core cutters 68 mm
Max. drilling diameter in steel 13 mm
Max. drilling diameter in wood 30 mm
Chiselling:
Vibration emission value ah 13.0 m/s
Uncertainty K 1.5 m/s
Hammer drilling in concrete:
Vibration emission value ah 17.0 m/s
Uncertainty K 1.5 m/s
EAN: 3165140626941
