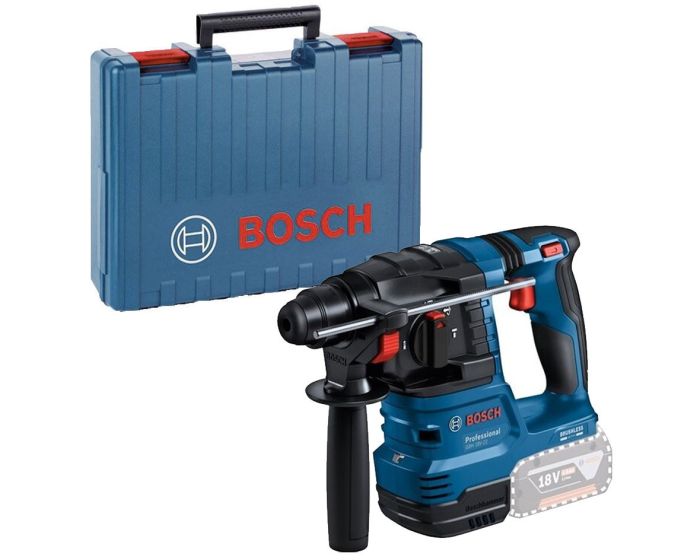

Bosch GBH 18V-22 SDS + Brushless Cordless Rotary Hammer Drill Bare + Case
Stock Code:
0611924000-CASED
Bosch GBH 18V-22 SDS + Brushless Cordless Rotary Hammer Drill Bare + Case
Stock Code:
0611924000-CASED
View All: Cordless SDS Drills
View All Bosch Products
View All: Bosch 18v Cordless Powertools
£144.99
Excl. VAT
£120.82
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
Muscle pain, unexpected shocks and inhaling dust are just a few of the risks you face when drilling into concrete. Fortunately, we have developed the GBH 18V-22 Professional hammer drill to make your work more comfortable.
This machine is compact, light and ergonomically designed with a well-defined center of gravity, making it easier to handle without getting tired quickly, especially when drilling overhead. You stay in control and your hands and arms are put under less strain thanks to KickBack Control and Vibration Control. Connect the hammer drill to the GDE 18V-12 Professional dust extraction (NOT INCLUDED IN THIS OFFER) with just one click for a cleaner workplace while working. And you can also get the job done with fewer interruptions, because this machine combines high performance with an efficient battery runtime.
This machine is compact, light and ergonomically designed with a well-defined center of gravity, making it easier to handle without getting tired quickly, especially when drilling overhead. You stay in control and your hands and arms are put under less strain thanks to KickBack Control and Vibration Control. Connect the hammer drill to the GDE 18V-12 Professional dust extraction (NOT INCLUDED IN THIS OFFER) with just one click for a cleaner workplace while working. And you can also get the job done with fewer interruptions, because this machine combines high performance with an efficient battery runtime.
User Benefit
More comfort and less strain while drilling, even during overhead work
Lightweight hammer drilling with specially designed clip-on dust extractor
Uninterrupted work thanks to improved runtime
More comfort and less strain while drilling, even during overhead work
Lightweight hammer drilling with specially designed clip-on dust extractor
Uninterrupted work thanks to improved runtime
Includes
1 x GBH 18V-22 Cordless Rotary Hammer with SDS plus
1 x Depth gauge 1613001009
1 x Cleaning cloth
1 x Carry Case
Impact energy (according to EPTA 05/2016) 1.9 J
Impact rate at rated speed 0 – 4,675 bpm
Rated speed 0 – 1,050 rpm
Battery voltage 18.0 V
Weight excl. battery 2.3 kg
Tool holder SDS plus
Packaging dimensions (width x length x height) 217 x 330 x 100 mm
Drilling dia. in concrete with hammer drill bits 4 – 22 mm
Opt. app. range in concrete with hammer drill bits 4 – 12 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 20 mm
Total vibration values (Hammer drilling in concrete)
Sound pressure level 94 dB(A)
Sound power level 102 dB(A)
Uncertainty K 3 dB
Impact rate at rated speed 0 – 4,675 bpm
Rated speed 0 – 1,050 rpm
Battery voltage 18.0 V
Weight excl. battery 2.3 kg
Tool holder SDS plus
Packaging dimensions (width x length x height) 217 x 330 x 100 mm
Drilling dia. in concrete with hammer drill bits 4 – 22 mm
Opt. app. range in concrete with hammer drill bits 4 – 12 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 20 mm
Total vibration values (Hammer drilling in concrete)
Sound pressure level 94 dB(A)
Sound power level 102 dB(A)
Uncertainty K 3 dB
EAN: 5056709522539
The 3 year warranty applies to tools purchased on or after September 1st 2004.
Tools must be registed online on Bosch Power Tools Warranty Registration Page to qualify for the warranty extension otherwise a standard 1 year warranty will apply.
Bosch 3-year warranty for power tools, batteries & chargers. This applies to all professional blue power tools and measuring instruments from Bosch. The warranty excludes high-frequency tools, production cordless screwdrivers and pneumatic tools, supplied accessories, battery packs and chargers.
Bosch PRO360 is a convenient and efficient portal to access numerous Bosch Professional Services. Register your tool and benefit permanently from all services such as the free extension of your tool guarantee from 1 to 3 years.
Download Bosch Pro 360 Mobile App
Why not download the Bosch Toolbox App to register for your extended warranty? The Bosch Toolbox is an innovative collection of digital professional tools for tradespeople and other professionals.
The Bosch Toolbox App is available free of charge on the Apple App Store or Google Play Store. Download Bosch Toolbox Mobile App
What if my product is faulty?
Should you have a problem with your Bosch Power Tool please contact the Bosch Service Centre on 0344 7360109. The unit will be repaired/replaced under the warranty.
Further details can be found on the Bosch Power Tools Website.
Buyaparcel offer delivery throughout the United Kingdom, including Northern Ireland, Scottish Highlands and other Islands of the UK. We do not currently ship overseas.
UK Delivery Prices
Standard delivery is free with no minimum order charge to most mainland UK delivery addresses. Surcharges can apply to certain postcodes depending on the service type. For full details visit our Delivery Guide.
In additional to our standard service we also offer some premium delivery services if you need your item quickly
£0.00 - Standard UK Delivery (2-3 Days Approx)
£2.99 - Next Day UK Delivery (Orders placed before 3.00pm Monday - Friday)
*orders placed after 3.00pm Friday will still be delivered Monday if ordered before 11am Saturday Morning
£8.99 - Saturday Delivery (Orders placed before 3.00pm Friday)
£36.00 - Pallet Delivery (2-3 Days Approx - selected products only)
Alternatively if you view your parcel once items have been added and enter your postcode you will see what derlivery services are available.
Is My Item Available for Next Day Delivery?
If your item is stocked in our immediate picking location it will available for you to choose a next day delivery. This will be highlighted by a green tick and a 1 day dispatch time on the item information.
You will have the option to choose this service if you are purchasing your item for delivery to mainland UK.
What courier will my item be delivered with?
If your item is being delivered in the UK or Ireland, it will be delivered by DHL eCopmmerce UK, Evri or Royal Mail, with the exception of pallet items.
Details of each courier service we offer are detailed in our Delivery Guide.
Is My Item Available for Click and Collect at your Lowestoft Store?
If your item is showing "In Stock" then you will be able to do a Same Day Click and Collect order from our Lowestoft Pinbush Road. Our cut off for same day collections is 3.00pm Mon-Fri / 11.00am Saturday. After that the product will be ready the next day for collection. After the cut off you are welcome to do a Call and Collect order by phoning our trade counter on 01502 507666. If your item is in stock you will still be able to do a same day collection and payment.
Our store is open Monday to Friday 8.00am - 5.00pm and Saturday 8.00am - 12.00pm so any orders placed the remainder of the weekend will be available for collection on Monday. Weekdays any orders placed up to midnight will be available for collection the following day. This excludes bank holidays.
Please wait for email confirmation your order is ready for collection from our store before you travel.
On collection we will require you to show a copy of your order confirmation, electronic or printed. In addition to this please bring photo ID which must be your passport or photo driving licence, matching the name on the PayPal/Amazon/Credit or Debit card used.
Collection option only available to NR and IP Postcodes
We've simplified our returns process! We now offer a no-questions-asked, free returns service within the first 30 days (subject to T&Cs).
You can find our returns information in our Terms and Help page
Spread the cost of your Buyaparcel purchase with Paypal Credit - Get 0% finance over 4 months! The perfect way to spread the cost of any purchases of £99 (inc vat) or more
Applying is that simple. If approved and you accept, you'll have a credit limit added to your PayPal account ready to use immediately. Plus, you'll automatically get 0% interest for 4 months on all your purchases of £99 or more.*
How to apply for Paypal Credit with Buyaparcel?
You have 2 ways to purchase from us with the option us using Paypal Credit.
1 - From the product page you can use Paypal Express Checkout which will take you straight to your Paypal account where you can login to complete payment or apply for Paypal Credit.
2 - If you add your product to your parcel and click "Proceed to Checkout" you will then go to our payment page. Select "Paypal Express Checkout" from the payment methods available and click "Place Order".
Once you are in your Paypal account choose PayPal Credit from the payment options.
If this is the first time you have used PayPal Credit, you will be asked to complete a short application form to apply for PayPal credit.
More Information on Paypal Credit
Write Your Own Review
Description
Muscle pain, unexpected shocks and inhaling dust are just a few of the risks you face when drilling into concrete. Fortunately, we have developed the GBH 18V-22 Professional hammer drill to make your work more comfortable.
This machine is compact, light and ergonomically designed with a well-defined center of gravity, making it easier to handle without getting tired quickly, especially when drilling overhead. You stay in control and your hands and arms are put under less strain thanks to KickBack Control and Vibration Control. Connect the hammer drill to the GDE 18V-12 Professional dust extraction (NOT INCLUDED IN THIS OFFER) with just one click for a cleaner workplace while working. And you can also get the job done with fewer interruptions, because this machine combines high performance with an efficient battery runtime.
This machine is compact, light and ergonomically designed with a well-defined center of gravity, making it easier to handle without getting tired quickly, especially when drilling overhead. You stay in control and your hands and arms are put under less strain thanks to KickBack Control and Vibration Control. Connect the hammer drill to the GDE 18V-12 Professional dust extraction (NOT INCLUDED IN THIS OFFER) with just one click for a cleaner workplace while working. And you can also get the job done with fewer interruptions, because this machine combines high performance with an efficient battery runtime.
User Benefit
More comfort and less strain while drilling, even during overhead work
Lightweight hammer drilling with specially designed clip-on dust extractor
Uninterrupted work thanks to improved runtime
More comfort and less strain while drilling, even during overhead work
Lightweight hammer drilling with specially designed clip-on dust extractor
Uninterrupted work thanks to improved runtime
Includes
1 x GBH 18V-22 Cordless Rotary Hammer with SDS plus
1 x Depth gauge 1613001009
1 x Cleaning cloth
1 x Carry Case
Specification
Impact energy (according to EPTA 05/2016) 1.9 J
Impact rate at rated speed 0 – 4,675 bpm
Rated speed 0 – 1,050 rpm
Battery voltage 18.0 V
Weight excl. battery 2.3 kg
Tool holder SDS plus
Packaging dimensions (width x length x height) 217 x 330 x 100 mm
Drilling dia. in concrete with hammer drill bits 4 – 22 mm
Opt. app. range in concrete with hammer drill bits 4 – 12 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 20 mm
Total vibration values (Hammer drilling in concrete)
Sound pressure level 94 dB(A)
Sound power level 102 dB(A)
Uncertainty K 3 dB
Impact rate at rated speed 0 – 4,675 bpm
Rated speed 0 – 1,050 rpm
Battery voltage 18.0 V
Weight excl. battery 2.3 kg
Tool holder SDS plus
Packaging dimensions (width x length x height) 217 x 330 x 100 mm
Drilling dia. in concrete with hammer drill bits 4 – 22 mm
Opt. app. range in concrete with hammer drill bits 4 – 12 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 20 mm
Total vibration values (Hammer drilling in concrete)
Sound pressure level 94 dB(A)
Sound power level 102 dB(A)
Uncertainty K 3 dB
EAN: 5056709522539
