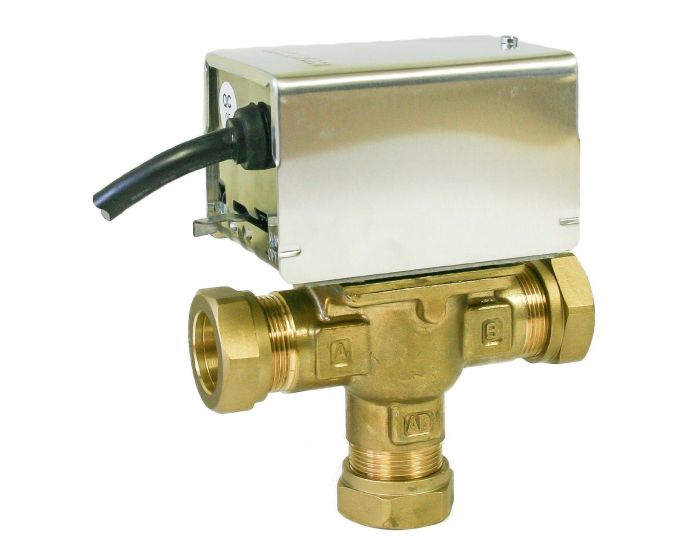

Banico 22mm 3 Port Mid Position Valve - Replace Honeywell V4073A1039 V4073A
Stock Code:
3PORT
Banico 22mm 3 Port Mid Position Valve - Replace Honeywell V4073A1039 V4073A
Stock Code:
3PORT
View All: Heating Controls
View All Grasslin Products
View All: Buyaparcel Winter Essentials
£52.28
Excl. VAT
£43.57
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
Fits Grasslin / Honeywell / Tower / Heads interchange wiring same body size same
Banico 3 Port spring return mid-position valve with 22mm compression fittings and 230V AC switched output. These are used on fully pumped systems which when correctly wired with an appropriate room thermostat, cylinder thermostat and programmer will control the hot water from the boiler to either hot water only, heating only, or both simultaneously.
Wiring and port dimensions match Honeywell equivalent V4073A1039, Sunvic SDV2211, Siemens CMV322, ACL MA1/679-3
Banico 3 Port spring return mid-position valve with 22mm compression fittings and 230V AC switched output. These are used on fully pumped systems which when correctly wired with an appropriate room thermostat, cylinder thermostat and programmer will control the hot water from the boiler to either hot water only, heating only, or both simultaneously.
Wiring and port dimensions match Honeywell equivalent V4073A1039, Sunvic SDV2211, Siemens CMV322, ACL MA1/679-3
Specifications
Supply Voltage 220-240V AC 50 Hz
Power consumption 6W
Operating temperature range: +5 to +88 C
Cable length one metre
Max. Differential pressure for 22mm = 1 Bar
Max. Static pressure 10.0 Bar
Max. Fluid temperature 100 C
Max. Ambient temperature 52 C
Supply Voltage 220-240V AC 50 Hz
Power consumption 6W
Operating temperature range: +5 to +88 C
Cable length one metre
Max. Differential pressure for 22mm = 1 Bar
Max. Static pressure 10.0 Bar
Max. Fluid temperature 100 C
Max. Ambient temperature 52 C
EAN: 5028415000441
