Banico 22mm 2 Port Zone Valve Can Replace Honeywell V4043H1056 V4043H
Stock Code:
2PORT
View All: Buyaparcel Winter Essentials
£40.76
£33.97
Out of Stock - This Product is Currently Unavailable
Description
Fits Grasslin / Honeywell / Tower / Heads interchange wiring same body size same

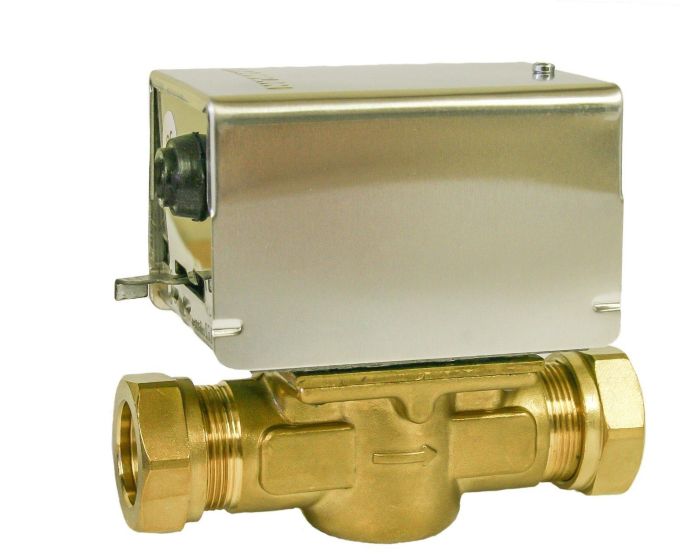

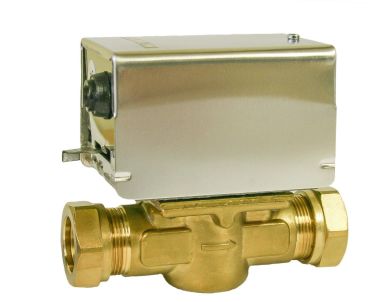

Banico 2 Port spring return valve with 22 mm compression fittings and an auxiliary switch. This is for general purpose flow control applications or central heating systems. When correctly wired with an appropriate room thermostat, cylinder thermostat and programmer the valve will control the water from the boiler to hot water and from the boiler to central heating.
Wiring and port dimensions match Honeywell equivalent V4043H1056, Actuator 40003916-001
Banico 2 Port spring return valve with 22 mm compression fittings and an auxiliary switch. This is for general purpose flow control applications or central heating systems. When correctly wired with an appropriate room thermostat, cylinder thermostat and programmer the valve will control the water from the boiler to hot water and from the boiler to central heating.
Wiring and port dimensions match Honeywell equivalent V4043H1056, Actuator 40003916-001
Specifications
Supply Voltage 220-240V AC 50 Hz
Power consumption 6W
Operating temperature range: +5 to +88 °C
Cable length one metre
Max. Differential pressure for 22mm = 1 Bar
Max. Static pressure 10.0 Bar
Max. Fluid temperature 100 °C
Max. Ambient temperature 52 °C
Power consumption 6W
Operating temperature range: +5 to +88 °C
Cable length one metre
Max. Differential pressure for 22mm = 1 Bar
Max. Static pressure 10.0 Bar
Max. Fluid temperature 100 °C
Max. Ambient temperature 52 °C
EAN: 5028415000946
This product is covered by a 1 year warranty as standard.
