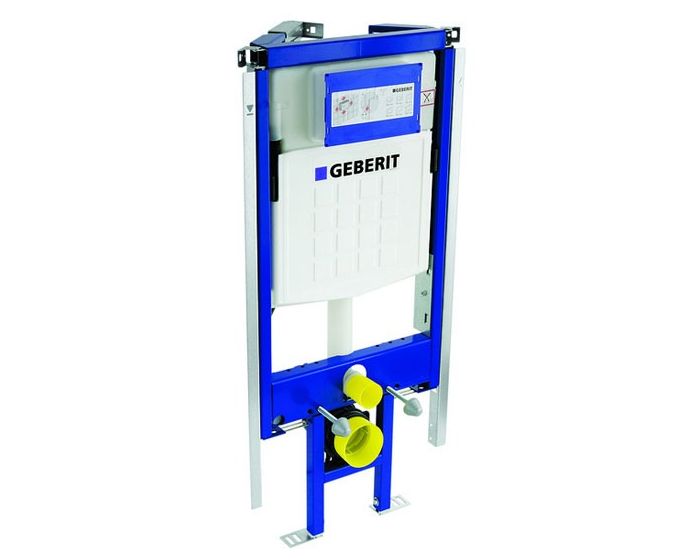

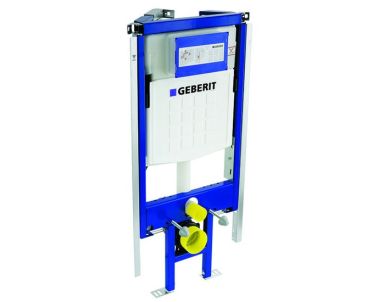

Geberit 111.399.00.5 Duofix WC Corner Frame 1.12m with UP320 Cistern
Stock Code:
111.399.00.5
Geberit 111.399.00.5 Duofix WC Corner Frame 1.12m with UP320 Cistern
Stock Code:
111.399.00.5
View All: Toilet Cisterns & Frames
View All Geberit Products
£364.99
Excl. VAT
£304.16
Excl. VAT
Out of stock - This Product is Currently Unavailable
Description
Specification
Warranty
Delivery
Returns
Finance Options
Reviews
/>The Geberit Duofix frame system allows you to design and create the bathroom of your dreams.
Hidden behind walls and tiles, Geberit Duofix supports wall hung sanitaryware and includes an integral cistern.
The result is a clean and modern finish with no visible pipework. The Geberit Duofix frame is the backbone to Geberit's bathroom system.
The sturdy metal frame has been designed to support wall hung sanitaryware without the need for supporting walls.
Frames are available for toilet pans, hand washbasins, bidets and urinals.
The Geberit Duofix frame allows designers to create eye-catching new bathrooms from the bare minimum without expensive structural work.
Frames can simply be bolted to the floor and placed within or attached to walls. The frame system can be used in the tightest of spaces including corners, allowing designers the freedom to create stunning bathrooms without compromise
Features of this Frame
For corner installation with UP320 concealed front operated cistern complete with PreWall brackets.
For use with front mounted Rumba, Samba, Tango, Twist, Mambo or Bolero flush plates. Artline plate with adaptor or remote pneumatic buttons (to be ordered seperately.
Designed to withstand a heavy load 400kg (64 stone).
Easy to clean.
Accessibility at any time, the flush plate, the filling valve as well as the flush valve can be removed and easily replaced without tools.
Dual flush saves water with buttons for 3 or 6 litres of water.
Application
For installation of a wall-hung WC with bolt fixings set at 180 or
230 mm centres
For installation as a corner element in front of a drywall, solid wall,
Duofix system wall
For a screed of 0 - 200 mm (not in room height applications)
For connecting Geberit AquaClean
Hidden behind walls and tiles, Geberit Duofix supports wall hung sanitaryware and includes an integral cistern.
The result is a clean and modern finish with no visible pipework. The Geberit Duofix frame is the backbone to Geberit's bathroom system.
The sturdy metal frame has been designed to support wall hung sanitaryware without the need for supporting walls.
Frames are available for toilet pans, hand washbasins, bidets and urinals.
The Geberit Duofix frame allows designers to create eye-catching new bathrooms from the bare minimum without expensive structural work.
Frames can simply be bolted to the floor and placed within or attached to walls. The frame system can be used in the tightest of spaces including corners, allowing designers the freedom to create stunning bathrooms without compromise
Features of this Frame
For corner installation with UP320 concealed front operated cistern complete with PreWall brackets.
For use with front mounted Rumba, Samba, Tango, Twist, Mambo or Bolero flush plates. Artline plate with adaptor or remote pneumatic buttons (to be ordered seperately.
Designed to withstand a heavy load 400kg (64 stone).
Easy to clean.
Accessibility at any time, the flush plate, the filling valve as well as the flush valve can be removed and easily replaced without tools.
Dual flush saves water with buttons for 3 or 6 litres of water.
Application
For installation of a wall-hung WC with bolt fixings set at 180 or
230 mm centres
For installation as a corner element in front of a drywall, solid wall,
Duofix system wall
For a screed of 0 - 200 mm (not in room height applications)
For connecting Geberit AquaClean
Specifications of the Geberit 111.399.00.5
Self-supporting
Frame with C profile 40/40 mm
Powder-coated, Geberit blue
For structures on the floor, leg supports retractable to -50 mm
Rotating foot plate, for installation in UW50 and UW75 profiles
Frame with axis centre mark
Sound-absorbing actuator rods, tool-free, fast adjustment
Concealed cistern fully insulated against condensation
Concealed cistern for tool-free mounting and maintenance
Frame height 1120 mm
Connection hose to angle stop valve can be screwed without tools
Water supply connection at centre back or at the top
UP320 concealed cistern with front actuation
Dual flush with Sigma50, Sigma20, Samba or Bolero flush plate
Single flush with Sigma10, Rumba, Mambo or Tango flush plate
Dual flush with dual flush HyTouch pneumatic and mechanical buttons
Single flush with HyTronic infra-red flush or HyTouch single flush
pneumatic buttons
The protection cover protects the service opening against moisture
and dirt
Protection cover for service opening can be mounted without tools
and cut to length
Universal water supply connection compatible with MeplaFix, can be
mounted and operated without tools
Telescopic profiles to fasten to the wall and for fastening panelling
Telescopic profiles with detent mark
Wall fixture variable from 30
Self-supporting
Frame with C profile 40/40 mm
Powder-coated, Geberit blue
For structures on the floor, leg supports retractable to -50 mm
Rotating foot plate, for installation in UW50 and UW75 profiles
Frame with axis centre mark
Sound-absorbing actuator rods, tool-free, fast adjustment
Concealed cistern fully insulated against condensation
Concealed cistern for tool-free mounting and maintenance
Frame height 1120 mm
Connection hose to angle stop valve can be screwed without tools
Water supply connection at centre back or at the top
UP320 concealed cistern with front actuation
Dual flush with Sigma50, Sigma20, Samba or Bolero flush plate
Single flush with Sigma10, Rumba, Mambo or Tango flush plate
Dual flush with dual flush HyTouch pneumatic and mechanical buttons
Single flush with HyTronic infra-red flush or HyTouch single flush
pneumatic buttons
The protection cover protects the service opening against moisture
and dirt
Protection cover for service opening can be mounted without tools
and cut to length
Universal water supply connection compatible with MeplaFix, can be
mounted and operated without tools
Telescopic profiles to fasten to the wall and for fastening panelling
Telescopic profiles with detent mark
Wall fixture variable from 30
EAN: 4025416857785
